binder 99-2009-02-04 Miniature Round Plug Connector
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight

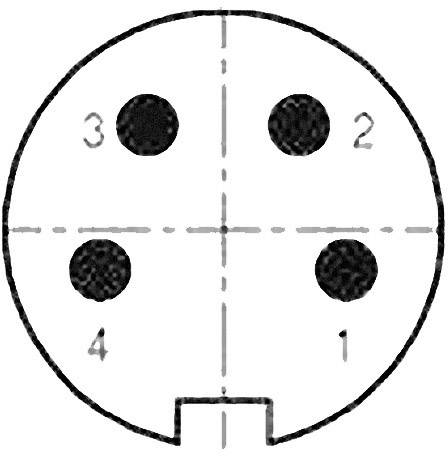

Total no. of pins
4
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 11.76
-7 %
€ 10.92
plus VAT.
14-day return policy included
Technical specifications
- Shielded wiring area
- Type
99-2009-02-04
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
4
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+70 °C
- Nominal current
3 A
- Min. temperature
-20 °C
- Nominal current - rounded value
3 A
- Seal
Screws
- Leading contact (PE)
No
- Nominal voltage
60 V
- Contact material
Silver plated
- Cable Ø (max.)
7.8 mm
- Cable Ø up to
6 mm
- Case material
CuZn
20
- Connection angle
180°
- Manufacturer part #
99-2009-02-04
- Cable Ø range
6 - 7.8 mm
- Number of pins
4
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP40
- Series
581
- Test voltage
875 V AC
- Contamination level
2
- Connection
Soldering
- Temperature range
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 566567 binder 99-2009-02-04 Miniature Round Plug Connector
User & Safety Instructions
User & Safety Instructions 566567 binder 99-2009-02-04 Miniature Round Plug Connector
Description
· Connector with screw locking
· Internal strain relief
· Excellent EMC-properties
· Internal strain relief
· Excellent EMC-properties
