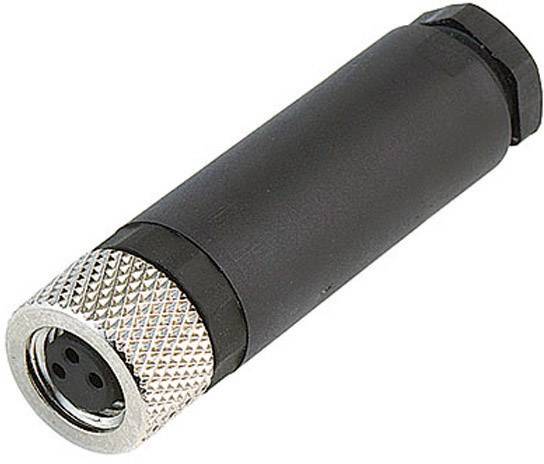

binder 99-3400-100-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M8 socket, straight
Connection side B
Customisable
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 15.12
-11 %
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Type
99-3400-100-03
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M8 socket, straight
- Connection side B
Customisable
- No. of pins
3
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.50 mm²
- Connection
Screws
- Thread type connection side
M8
- Contact material
Gold
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
99-3400-100-03
- Content
1 pc(s)
- Type
Cable socket, M8 x 1
- Insulation resistance
> 1010 Ω
- Nominal voltage (details)
60 V
- Nominal current (details)
4 A
- Thread type
M8
- Contamination level
3
- Connector cross section
0.14 - 0.5 mm²
- Pins
3
- Connection
Screws
- Cable diameter (details)
3.5 mm
- Temperature range
-40 - +85 °C
- Case material
PA
Documents & Downloads
Datasheet
Datasheet 746071 binder 99-3400-100-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight
User & Safety Instructions
User & Safety Instructions 746071 binder 99-3400-100-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight
Description
An extensive range of freely configurable plug connectors is available for the quick assembly of often different lengths of cables, e.g. on site. M8 connectors are supplied with the classic screw or solder connection.
