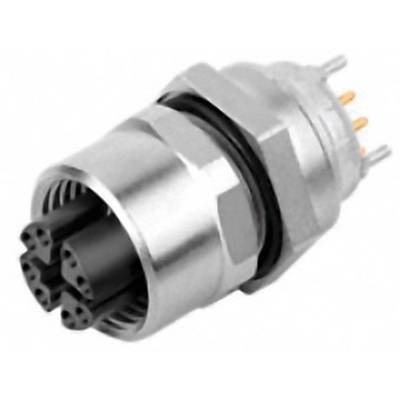

binder 99 3782 210 08 Sensor/actuator built-in connector M12 Socket, built-in No. of pins (RJ): 8 20 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
M12 socket, built-in
Connection side B
Customisable
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 29.20 / piece)
€ 584.03
plus VAT.
14-day return policy included
Flange socket with X-coding, housing contact hard
Highlights & Details
- 99 3782 210 08
- This text is machine translated.
Technical specifications
- Type
99 3782 210 08
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
M12 socket, built-in
- Connection side B
Customisable
- No. of pins
8
- Nominal voltage
50 V
- Nominal current
0.50 A
- Nominal current - rounded value
500 mA
- Connection
Soldering
- Factory colour
Silver
- Thread type connection side
M12
- Thread type (wiring and installation)
M16
- Coding
X
- Contact material
CuSn
- Contact surface
Gold plated
- Sensor/actuator connectivity fittings
M16 front panel fitting
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
99 3782 210 08
- Content
20 pc(s)
