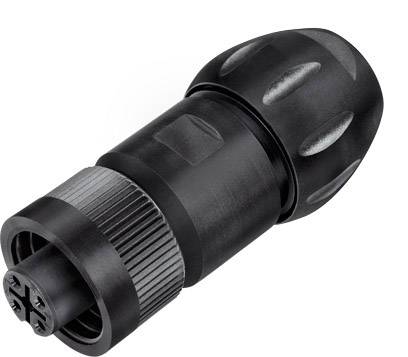

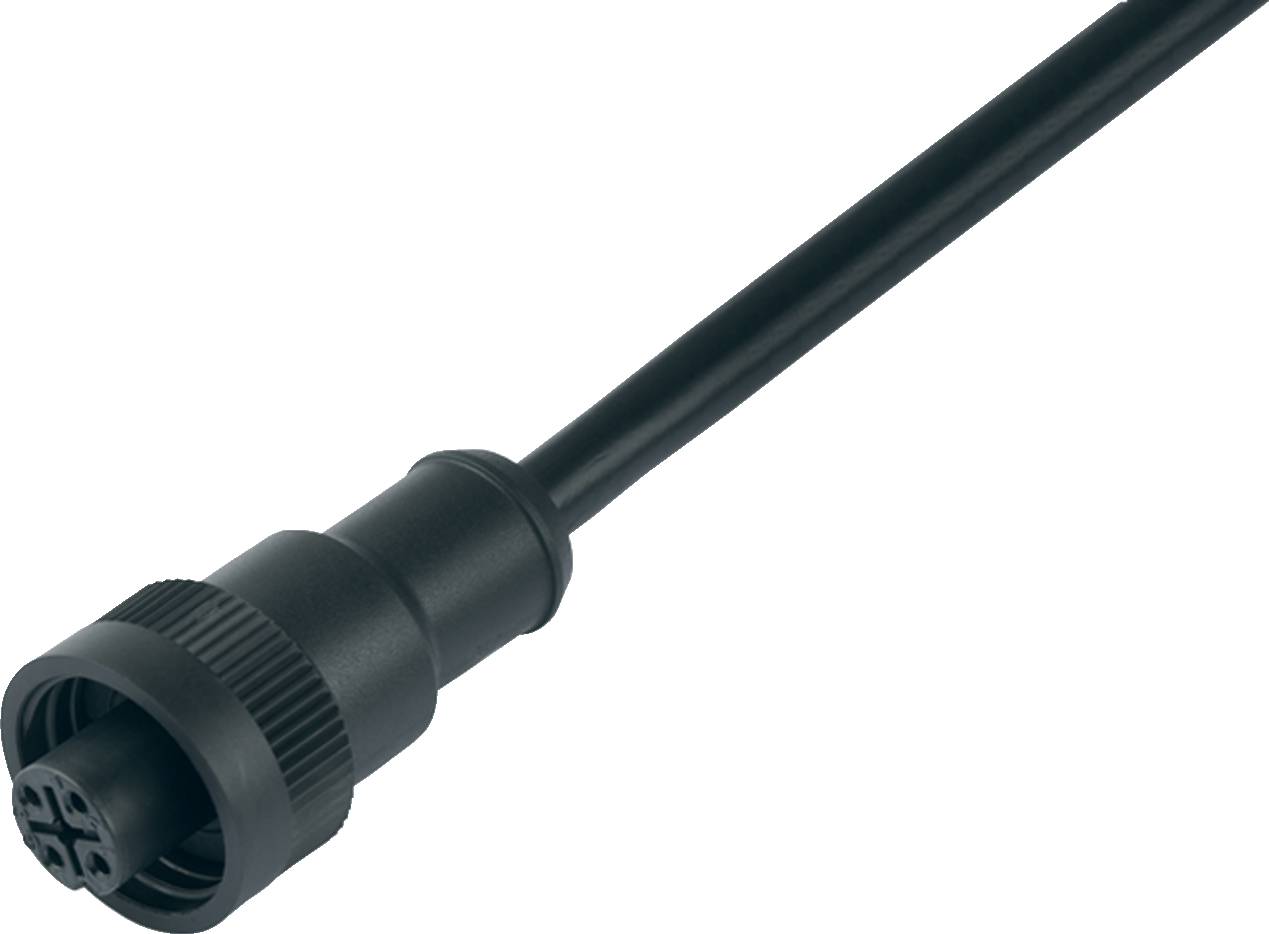

Buy binder 99 4222 300 04 Micro DIN connector Connector, straight Total number of pins: 3 + PE 1 pc(s)

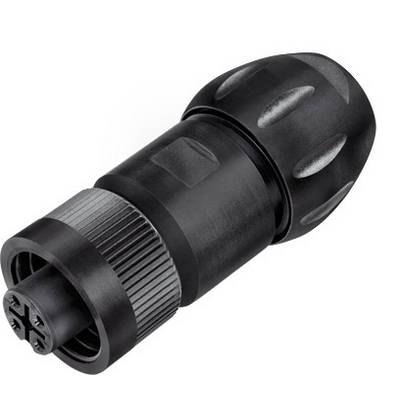

A black drill chuck with a ribbed grip and silver accents, suitable for electric drills.

Image similar

Technical drawing of a cylindrical component with a ribbed section on the left, a central square element, and a curved end on the right. Dimensions and details are noted.

Technical drawing of a circle with a diameter of 32 and a horizontal distance of 3, vertical distance of 2 between centrelines.

binder 99 4222 300 04 Micro DIN connector Connector, straight Total number of pins: 3 + PE 1 pc(s)-3

'Circular plug with four holes, next to a table with columns X, Y. Values: 1(3.18), 2(3.18), 3(-3.18), PE(3.18).'

Technical drawing of a screw connector with dimensions. Shows details of the connector's design and structure.<br><br>Note: This appears to be a direct translation into British English, which matches the original German text closely.

Technical drawing of a circle with a diameter of 32. The distance to neighbouring elements is marked as 2 and 3.

Multi-stage exploded diagram of a plug connector with numbered components and their corresponding dimensions and labels.

1/8

Image similar

Product type

Micro DIN connector

Connector type

Connector, straight

Total no. of pins

3 + PE

Connection

Screws

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

54 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type: Binder

Product type: Micro DIN connector

Connector type: Connector, straight

Total no. of pins: 3 + PE

Connection: Screws

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +100 °C

Nominal current: 16 A

Min. temperature: -40 °C

Nominal current - rounded value: 16 A

Leading contact (PE): Yes

Nominal voltage: 400 V

Contact material: Bronze, silver plated

Cable Ø (max.): 17 mm

Cable Ø up to: 7 mm

Case material: PBT

: 14

Connection angle: 180°

Manufacturer part #: 99 4222 300 04

Cable Ø range: 7 - 17 mm

Number of pins: 3

max. cross section: 2.50 mm²

Cross-section range: 2.50 mm² (max)

: IP67

Documents & Downloads

Datasheet

Datasheet 1665966 binder 99 4222 300 04 Micro DIN connector Connector, straight Total number of pins: 3 + PE 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1665966 binder 99 4222 300 04 Micro DIN connector Connector, straight Total number of pins: 3 + PE 1 pc(s)

What kind of Keyed Connectors are you looking for?

Deutsch plug
Wieland connector
