Buy binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

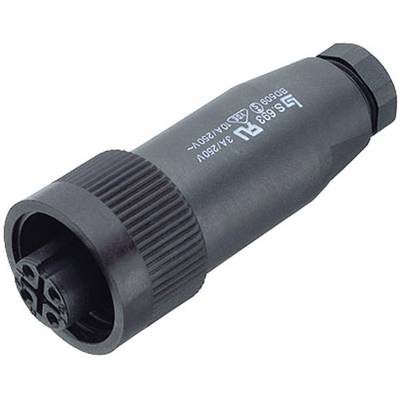

A black, cylindrical plug with specific electrical specifications is shown.

Image similar

Product type

Bullet connector

Connector type

Socket, straight

Total no. of pins

6 + PE

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

119 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 20.16 / piece)

€

Report legal concerns

Highlights & Details

binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

IP67

Technical specifications

Type: 99-4226-00-07

Product type: Bullet connector

Connector type: Socket, straight

Total no. of pins: 6 + PE

Connection: Soldering

Content: 1 pc(s)

Nominal current: 10 A

Nominal current - rounded value: 10 A

Seal: Screws

Leading contact (PE): Yes

Nominal voltage: 250 V

Contact material: Ag (Silver)

Cable Ø (max.): 9.5 mm

Cable Ø up to: 6 mm

: 20

Connection angle: 180°

Manufacturer part #: 99-4226-00-07

Cable Ø range: 6 - 9.5 mm

Certification marks: VDE, SEV, UL

Number of pins: 6

max. cross section: 0.75 mm²

Cross-section range: 0.75 mm² (max)

: IP67

Series: 693

Type: Cable connector

Nominal voltage (details): 4000 V

Nominal current (details): 10 A

Contamination level: 3

Cross section: 0.75 mm²

Pins: 6 + PE

Connection: Solder

Cable diameter: 6 - 9.5 mm

Temperature range: -40 - +100 °C

Reading category: III

Size: PG9

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Connector type

Content

Total no. of pins

Nominal voltage

binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

Item no:733682

This article

99-4226-00-07

10 A

Soldering

Socket, straight

1 pc(s)

6 + PE

250 V

binder 99-4222-70-04 Bullet connector Socket, right angle Total number of pins: 3 + PE Series (round connectors): 693 20 pc(s)

Item no:1657403

99-4222-70-04

16 A

Screws

Socket, right angle

20 pc(s)

3 + PE

600 V

binder 99-4218-70-07 Bullet connector Socket, right angle Total number of pins: 6 + PE Series (round connectors): 693 20 pc(s)

Item no:1657407

99-4218-70-07

10 A

Screws

Socket, right angle

20 pc(s)

6 + PE

250 V

binder 99-4222-00-04 Bullet connector Socket, straight Total number of pins: 3 + PE Series (round connectors): 693 20 pc(s)

Item no:1657427

99-4222-00-04

16 A

Screws

Socket, straight

20 pc(s)

3 + PE

400 V

binder 99-4221-70-04 Bullet connector Plug, right angle Total number of pins: 3 + PE Series (round connectors): 693 20 pc(s)

Item no:1657454

99-4221-70-04

16 A

Screws

Plug, right angle

20 pc(s)

3 + PE

600 V

binder 99-4221-00-04 Bullet connector Plug, straight Total number of pins: 3 + PE Series (round connectors): 693 20 pc(s)

Item no:1657525

99-4221-00-04

16 A

Screws

Plug, straight

20 pc(s)

3 + PE

600 V

binder 99-4217-00-07 Bullet connector Plug, straight Total number of pins: 6 + PE Series (round connectors): 693 20 pc(s)

Item no:1657527

99-4217-00-07

10 A

Screws

Plug, straight

20 pc(s)

6 + PE

250 V

binder 99-4217-70-07 Bullet connector Plug, right angle Total number of pins: 6 + PE Series (round connectors): 693 20 pc(s)

Item no:1657528

99-4217-70-07

10 A

Screws

Plug, right angle

20 pc(s)

6 + PE

250 V

binder 99-4225-00-07-20 Bullet connector Plug, straight Total number of pins: 6 + PE Series (round connectors): 693 1 pc(s)

Item no:3214377

99-4225-00-07-20

10 A

Soldering

Plug, straight

1 pc(s)

6 + PE

250 V

binder 99-4218-00-07-20 Bullet connector Socket, straight Total number of pins: 6 + PE Series (round connectors): 693 1 pc(s)

Item no:3214379

99-4218-00-07-20

10 A

Screws

Socket, straight

1 pc(s)

6 + PE

250 V

Documents & Downloads

Datasheet

Datasheet 733682 binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

User & Safety Instructions

User & Safety Instructions 733682 binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

Information

Information 733682 binder 99-4226-00-07 Standard Circular Connector Series 693 Nominal current (details): 10 A Pins: 6 + PE

Description

· Connector with screw lock
· Protection class IP67
· Available with screw and solder connection
· VDE, SEV, UL approval
