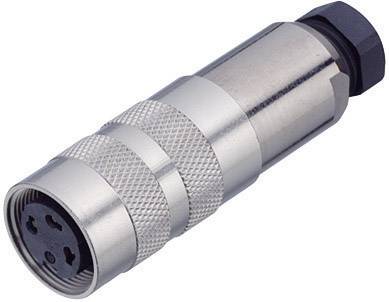

binder 99-5106-15-03 Series 423 Miniature Circular Connector Nominal current (details): 7 A
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Connector, straight
Total no. of pins
3
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 17.64
-19 %
€ 14.28
plus VAT.
14-day return policy included
binder 99-5106-15-03 Series 423 Miniature Circular Connector Nominal current (details): 7 A
Highlights & Details
- IP67
Technical specifications
- Type
99-5106-15-03
- Product type
Bullet connector
- Connector type
Connector, straight
- Total no. of pins
3
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
7 A
- Min. temperature
-40 °C
- Nominal current - rounded value
7 A
- Seal
Screws
- Nominal voltage
250 V
- Contact material
Ag (Silver)
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
20
- Connection angle
180°
- Manufacturer part #
99-5106-15-03
- Cable Ø range
4 - 6 mm
- Number of pins
3
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
- Feature
shielding option
IP67
- Series
423
- Type
Cable box with screen ring
- Nominal voltage (details)
250 V
- Nominal current (details)
7 A
- Contamination level
1
- Cross section
0.75 mm²
- Connection
Soldering
- Temperature range
-30 - +95 °C
Documents & Downloads
Datasheet
Datasheet 738574 binder 99-5106-15-03 Series 423 Miniature Circular Connector Nominal current (details): 7 A
User & Safety Instructions
User & Safety Instructions 738574 binder 99-5106-15-03 Series 423 Miniature Circular Connector Nominal current (details): 7 A
Information
Information 738574 binder 99-5106-15-03 Series 423 Miniature Circular Connector Nominal current (details): 7 A
Description
· Connectors with screw locking according to IEC 1309-9
Robust metal construction
·Very good EMC characteristics
Internal strain relief.
Robust metal construction
·Very good EMC characteristics
Internal strain relief.
