Buy binder 99 5121 60 06 Connector Total number of pins: 6 1 pc(s)

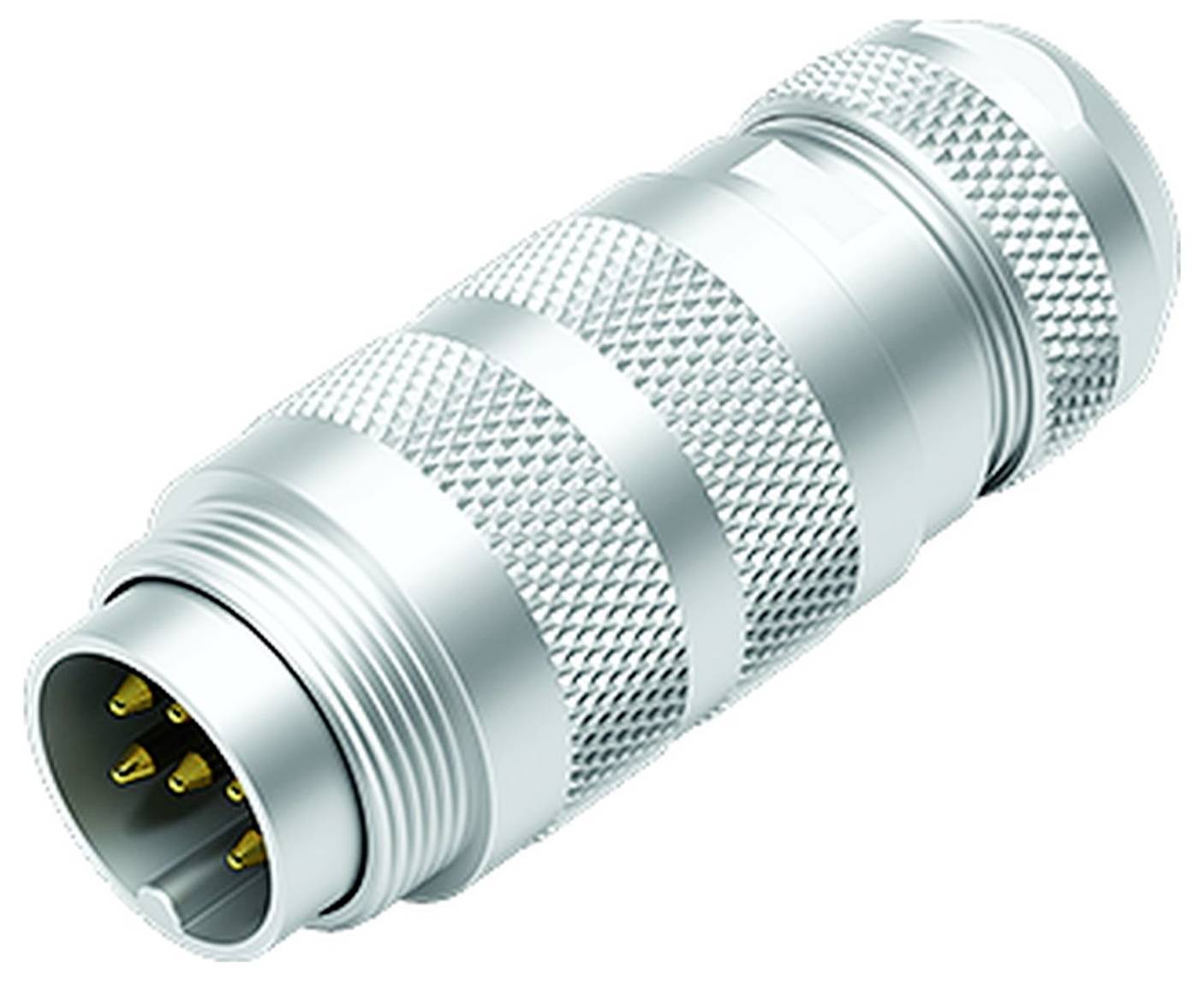

Silver cylindrical metal plug with multiple gold-plated contact pins. Used for electrical connections in technical equipment.

Image similar

Product type

Connector

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Nominal current - rounded value

5 A

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

M16 cable connector, number of poles: 6 (06-a), 4.1-7.8 mm, can be shielded, soldered, IP68, UL, short version

Our service for you

Technical specifications

Series 423
Number of pins: 06
Connector design: Cable connector
Variation description: M16 IP67, 423 series, miniature connector
Approval 1 UL
EMC-suitability: Shielded
Connection cross-section (mm): Max. 0.75 mm²
Terminal cross section (AWG) AWG 18
Connection type: Soldering
Connector lock: Screw
Rated current (40 °C) 5.0 A.
Insulation class III
Overvoltage category II
Pollution level: 2
Rated voltage ( V ): 150 V.
Protection class: IP68
Material housing: CuZn (nickel-plated brass)
Material contact body PBT
Material (contact): CuZn (brass)
Material locking: CuZn (brass)
Cable outlet 4.1 - 7.8 mm
Safety features: The connector must not be loaded or disconnected. Non-observance as well as the improper use may lead to personal injury.
The plug connectors were developed for use in system, control and electrical device construction. It is up to the user to check whether the connectors can be used in other applications.
Connectors used in electric circuits with hazardous voltages should only be installed and used by, or under the supervision of, persons who are trained in electrical engineering, in compliance with the applicable regulations and standards.
IP67 and IP68 connectors are not suitable for underwater use. When used outdoors, the connectors must be separately protected against corrosion.
The plug connector is not suitable for mains voltages. Please pay attention to the degree of contamination and the over-voltage category.
To lock the cable connector with the device connector, the threaded ring is tightened hand-tight (approx. 50 cNm).
