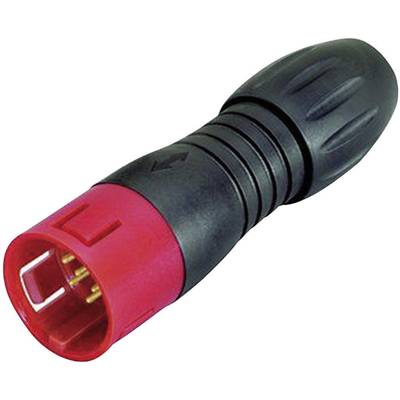

binder 99-9105-50-03 Series 720 Miniature Circular Connector
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
3
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
binder 99-9105-50-03 Series 720 Miniature Circular Connector
Highlights & Details
- IP67
Technical specifications
- Type
99-9105-50-03
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
3
- Connection
Soldering
- Content
1 pc(s)
- Nominal current
7 A
- Nominal current - rounded value
7 A
- Seal
Snap in
- Nominal voltage
250 V
- Contact material
Gold plated
- Cable Ø (max.)
6 mm
- Cable Ø up to
5.3 mm
- Case material
PA
20
- Connection angle
180°
- Manufacturer part #
99-9105-50-03
- Cable Ø range
5.3 - 6 mm
- Colour code
Red
- Number of pins
3
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP67 (when connected)
- Series
720
Documents & Downloads
Datasheet
Datasheet 567569 binder 99-9105-50-03 Series 720 Miniature Circular Connector
User & Safety Instructions
User & Safety Instructions 567569 binder 99-9105-50-03 Series 720 Miniature Circular Connector
Description
As a further expansion stage of the successful series 720 are cable plug and sockets with colored contact insert and flange connector immediately in the colors red, blue and green are available. It allows the user the possibility of color coding the commandments and the game room in relation to the design of the final product.
