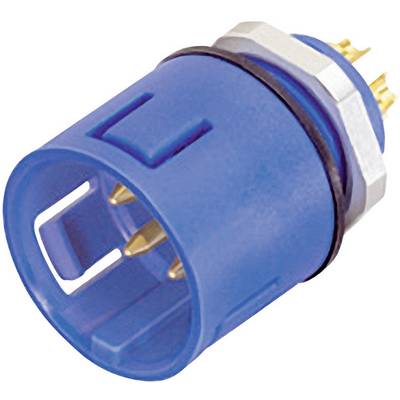

binder 99-9107-60-03 Bullet connector Plug, mount Total number of pins: 3 Series (round connectors): 720 20 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, mount
Total no. of pins
3
Connection
Soldering
Content
20 pc(s)
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 7.35 / piece)
€ 147.05
plus VAT.
Miniature round plug connector with color coding series 720
Highlights & Details
- IP67
Technical specifications
- Type
99-9107-60-03
- Product type
Bullet connector
- Connector type
Plug, mount
- Total no. of pins
3
- Connection
Soldering
- Content
20 pc(s)
- Max. temperature
+120 °C
- Nominal current
7 A
- Min. temperature
-40 °C
- Nominal current - rounded value
7 A
- Seal
Snap-In
- Nominal voltage
250 V
- Contact material
Gold plated
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
- Case material
PA
20
- Connection angle
180°
- Mounting hole diameter
16 mm
- Manufacturer part #
99-9107-60-03
- Cable Ø range
4 - 6 mm
- Colour code
Blue
- Number of pins
3
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP67 (when connected)
- Series
720
Documents & Downloads
Datasheet
Datasheet 1657624 binder 99-9107-60-03 Bullet connector Plug, mount Total number of pins: 3 Series (round connectors): 720 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1657624 binder 99-9107-60-03 Bullet connector Plug, mount Total number of pins: 3 Series (round connectors): 720 20 pc(s)
Description
As a further expansion stage of the successful series 720 are cable plug and sockets with colored contact insert and flange connector immediately in the colors red, blue and green are available. It allows the user the possibility of color coding the commandments and the game room in relation to the design of the final product.
