Name: BioStar B650MS2-E (AM5) (D) Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B6
Brand: BioStar
SKU: 3737083

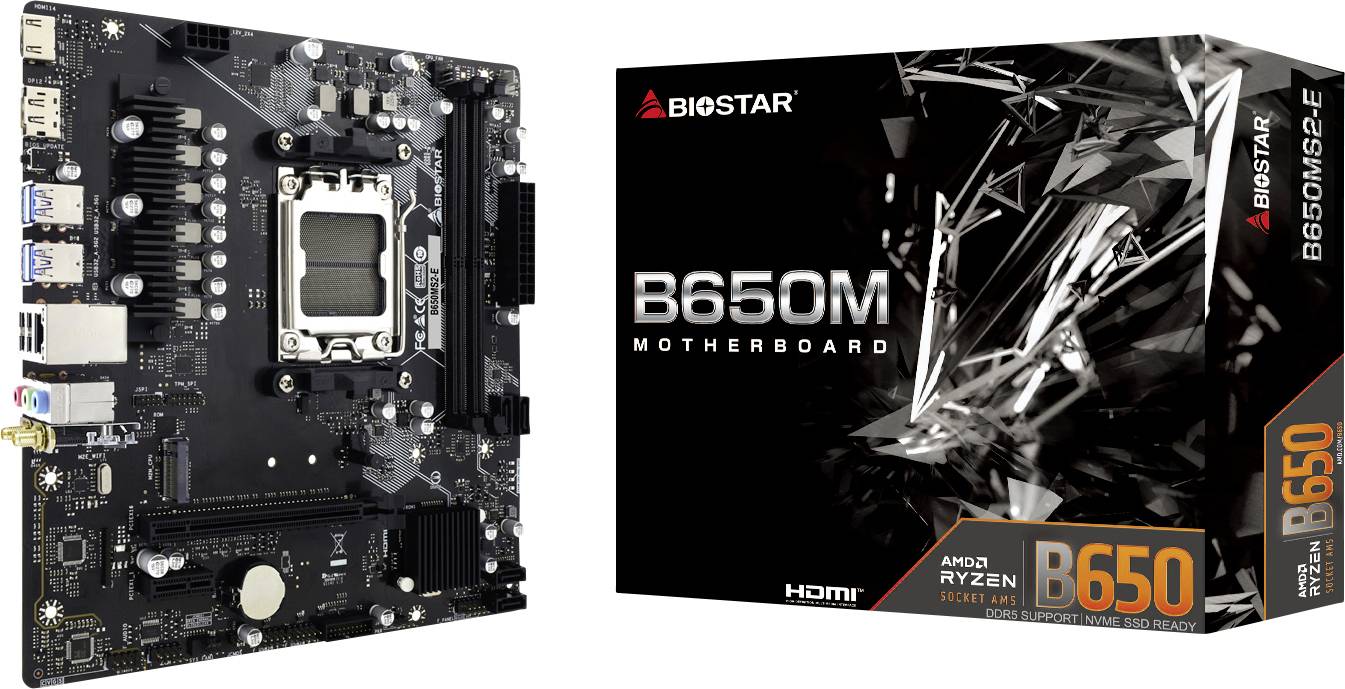

Biostar B650M motherboard shown beside its retail box, labeled 'B650M motherboard' and 'B650'.

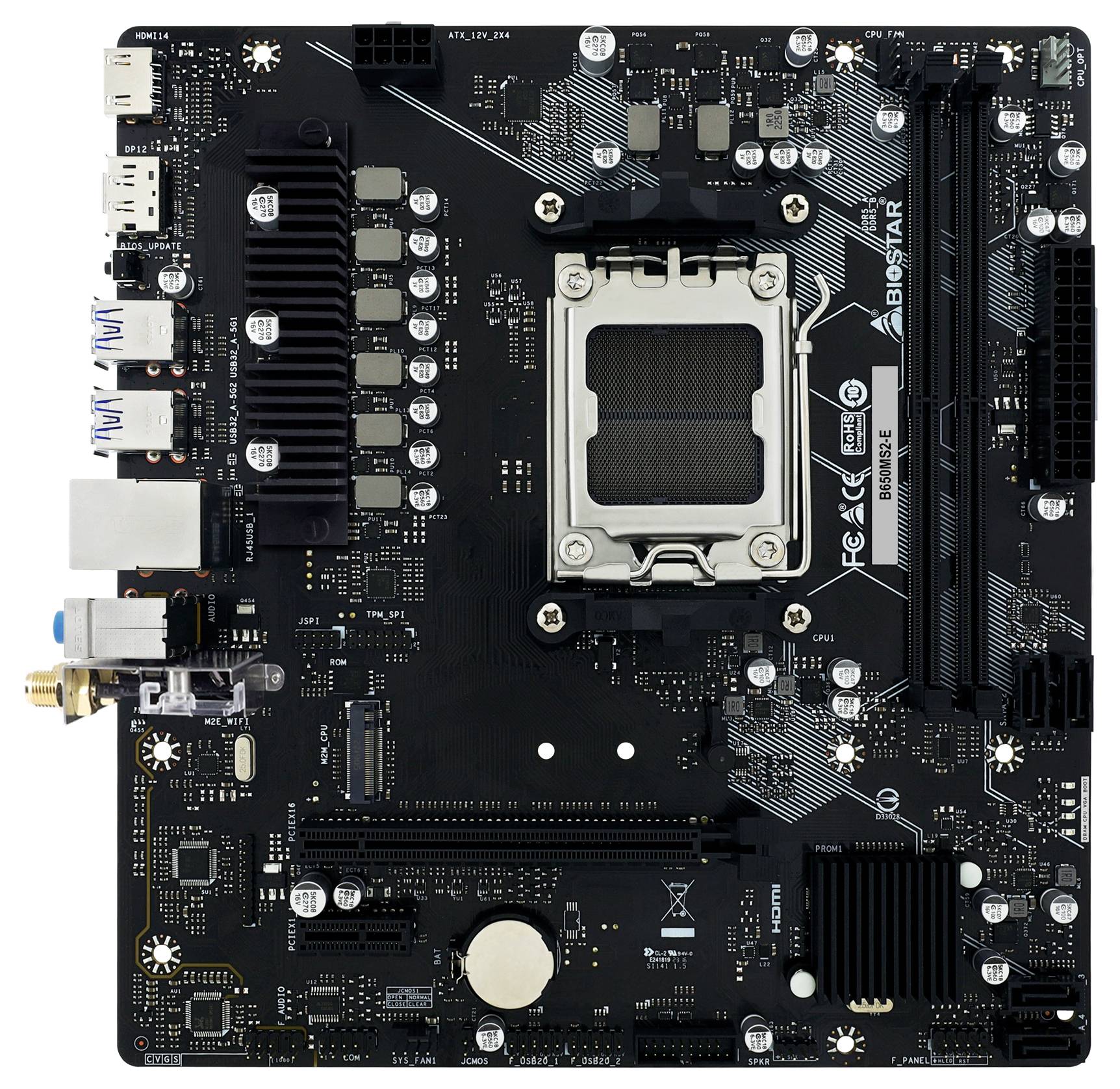

Black Biostar computer motherboard with central CPU socket, RAM slots, PCIe slots, heatsinks, rear ports, and power connectors.

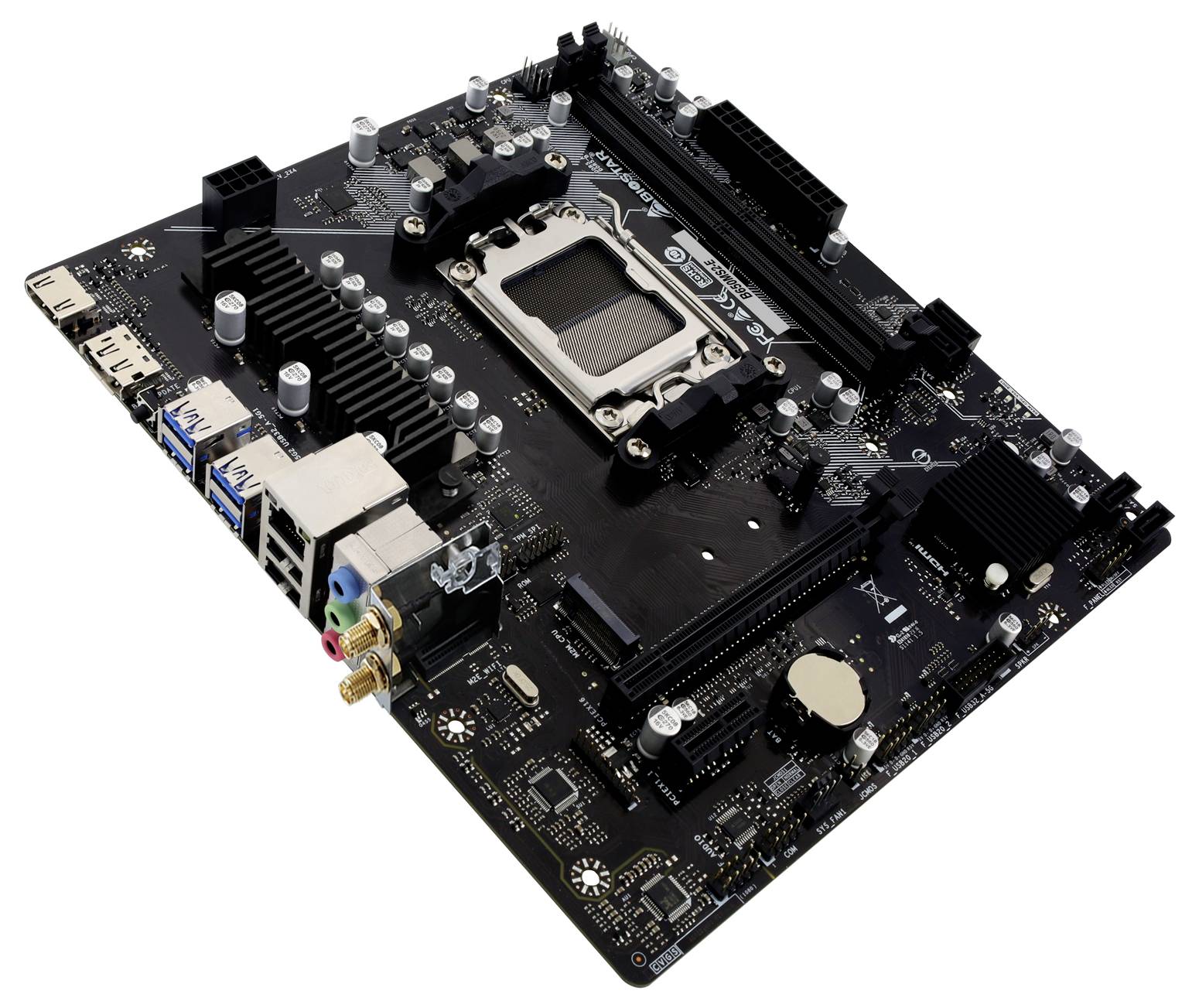

Black computer motherboard with an empty CPU socket, RAM slots, heatsinks, and rear I/O ports on a white background.

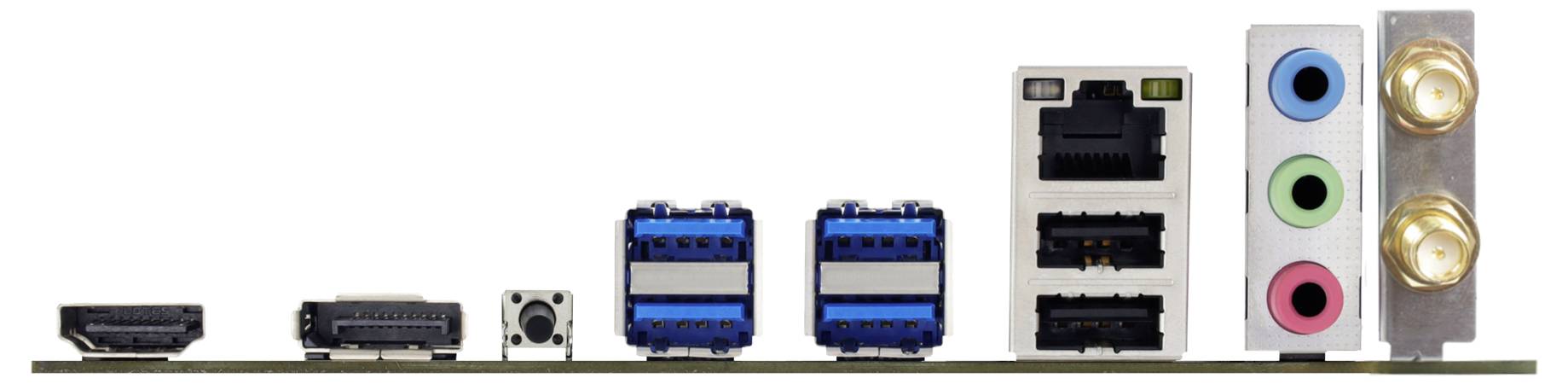

Rear panel of a desktop computer motherboard showing video, USB, Ethernet, audio, and antenna ports.

1/4

BioStar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BioStar B650MS2-E (AM5) (D) Motherboard

Socket AM5 supports AMD Ryzen™ 7000, 8000, and 9000 series processors
AMD B650 single chip architecture
Supports 2 DIMMs with DDR5 memory up to 128 GB
Supports 2.5 Gigabit LAN
Supports USB 3.2 1st Gen on the front side
Supports PCIe 4.0 M.2 (64 GB/s)
Supports HDMI® 4K resolution
This text is machine translated.

Technical specifications

Dimensions: 22.1 cm x 23.5 cm (W x L)

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: Micro-ATX

Processor/type: AMD® Ryzen™ 7000 / 8000 / 9000 Serie

RAM type: DDR5 RAM

RAM / Max. upgrade: 128 GB

Interfaces: HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Audio 7.1 (3.5 mm jack)
Audio 7.1 (3.5 mm jack)
Audio 7.1 (3.5 mm jack)
COM (for POS connectivity)
M.2 NVMe PCIe 4.0 x4

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 6 x

No. of USB 3.2: 6 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

UKCA: yes
