BioStar Z690MX2-E D4 Motherboard PC base #####Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® Z69
EAN:
Part number:
Item no:
Highlights & Details

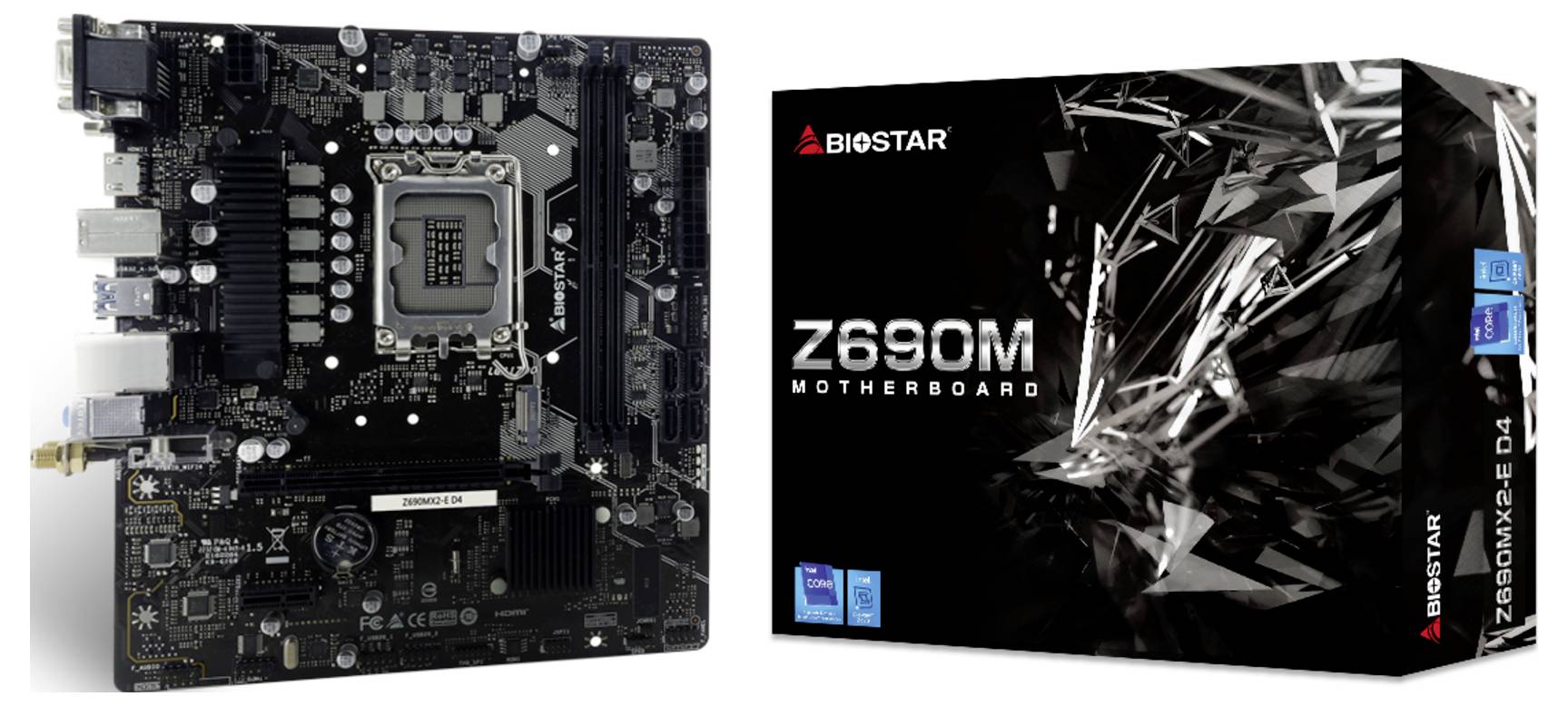

BioStar Z690MX2-E D4 Motherboard
- LGA 1700 Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 13th Gen, Intel core i7 Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen
- PC micro ATX Intel Z690 Realtek ALC897 7.1 channels
- DDR4 SDRAM 2 DIMM RAM maximum: 64 GB
- HDD & SSD M.2, SATA III RAID SUPPORT
- BIOS type UEFI
- 2.5 Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Compatible processors: core i3 12th Gen,Intel core i3 13th Gen,Intel core i3 14th Gen,Intel core i5 12th Gen,Intel core i5 13th Gen,Intel core i5 14th Gen,Intel core i7 12th Gen,Intel core i7 13th Gen,Intel core i7 14th Gen,Intel core i7 12th Gen,Intel core i9 12th Gen,Intel core i9 13th Gen,Intel core i9 13th Gen
- C-Ko compatibility: Non-ECC
- Intel Z690 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- Chipset
Intel® Z690
#####Intel® 1700
- Form factor
Micro-ATX
- RAM type
DDR4 SDRAM
- RAM / Max. upgrade
64 GB

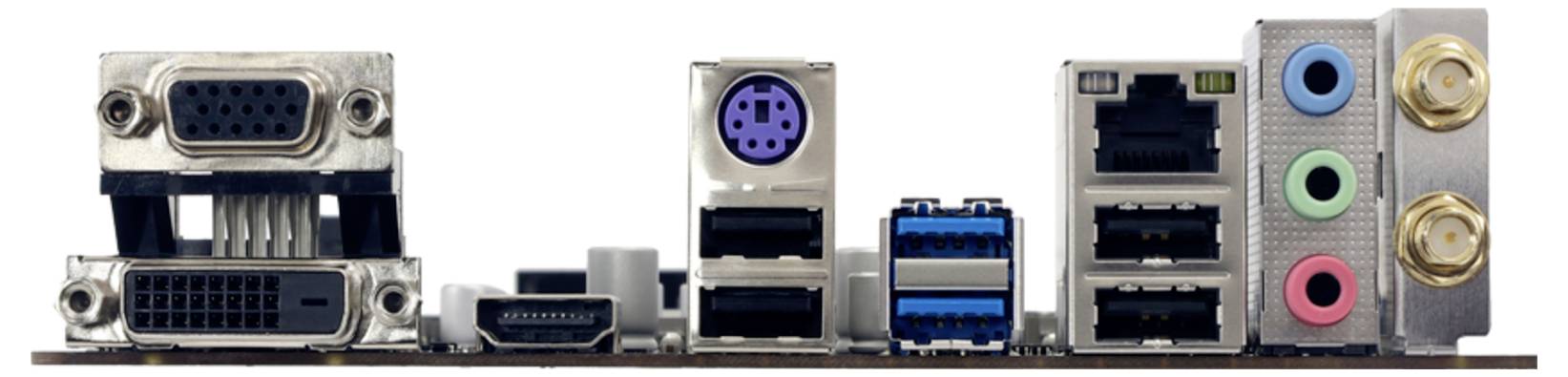

- Interfaces
HDMI™
USB A (USB 2.0)
VGA
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Depth
236 mm
- Width
208 mm
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- Ethernet LAN
yes
- PCI Express x1 (Gen 3.x) slots
1
- Number of memory slots
2
- Number of M.2 (M) slots
1
- USB 2.0 ports quantity
4
- Front panel connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- DVI-D ports quantity
1
- Number of HDDs supported
5
- TPM connector
yes
- Drivers included
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
