Buy BJZ A-32233 RM 4000 Ohmmeter

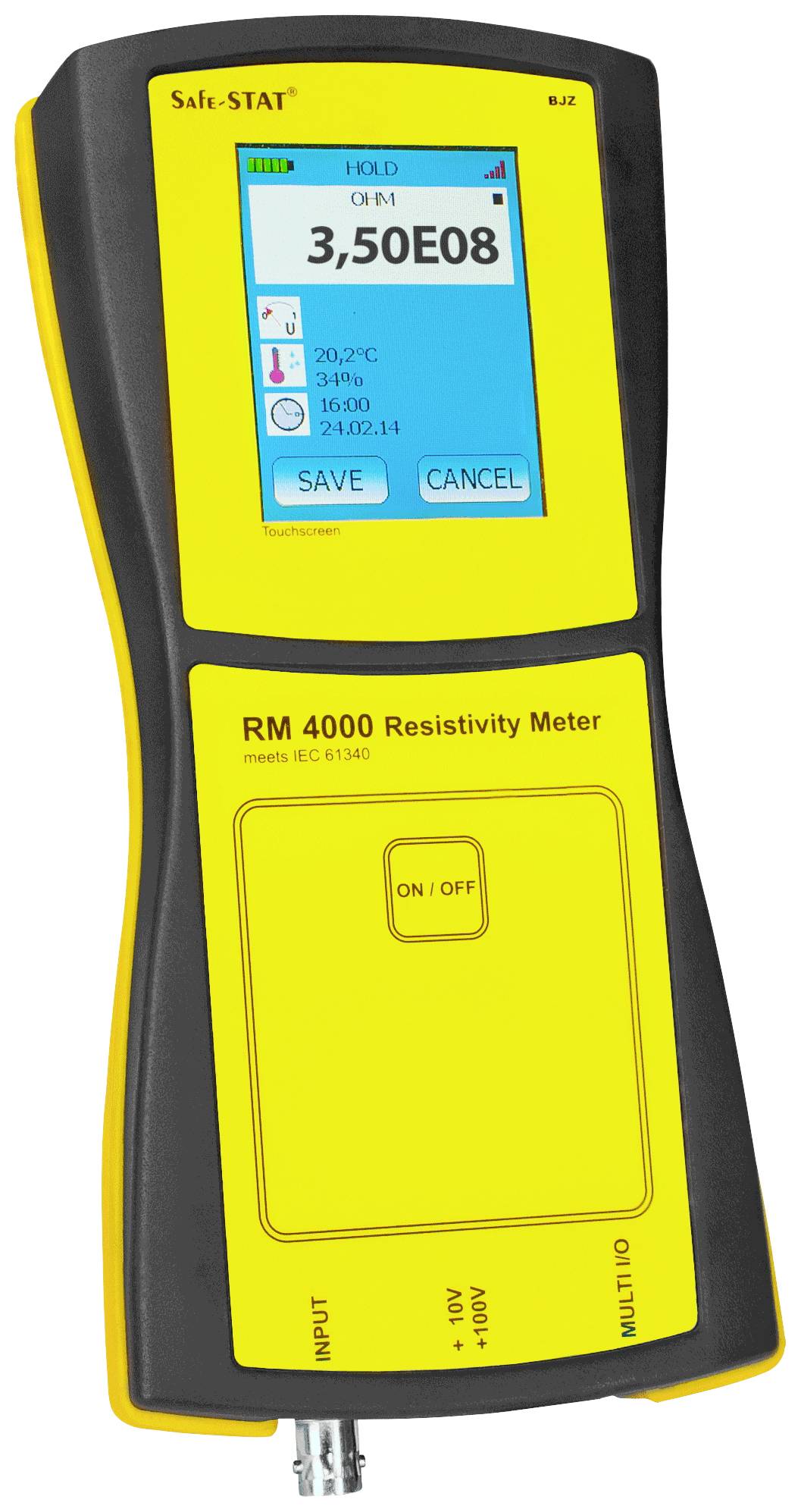

The image shows a yellow resistivity measuring device RM 4000 from Safe-STAT with a digital display, indicating a measured value of 3.50E08.

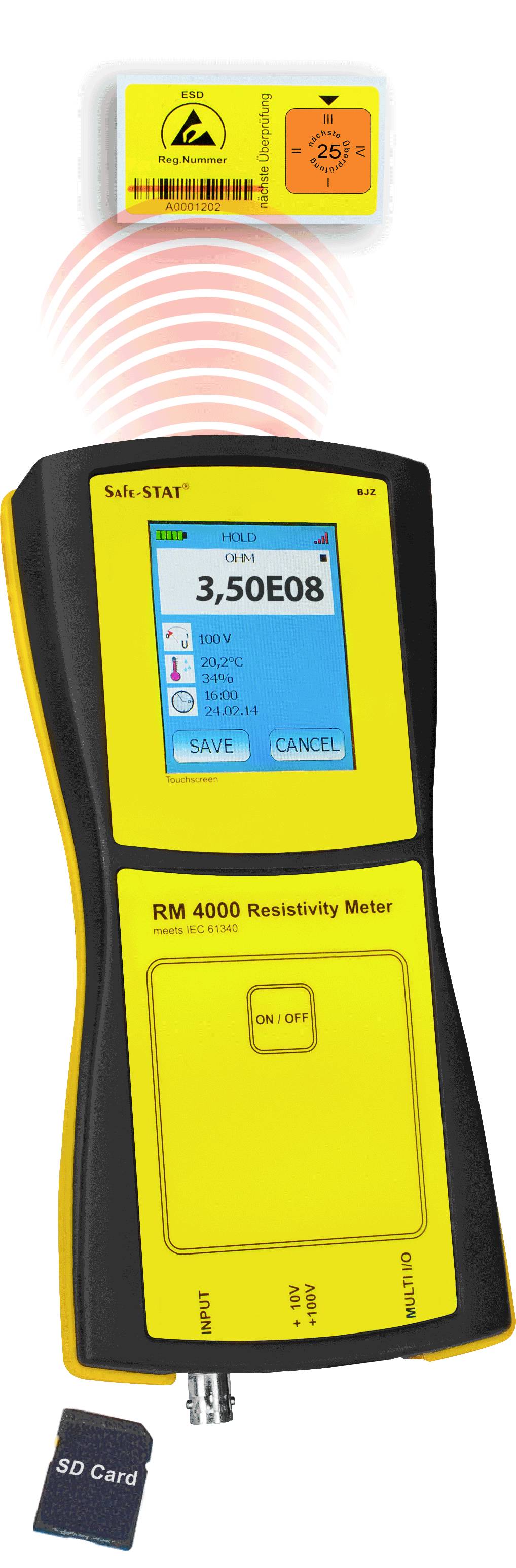

'RM 4000' resistance measuring device with digital display, showing measurement value '3.50E08'. SD card and label 'Safe-STAT' visible.

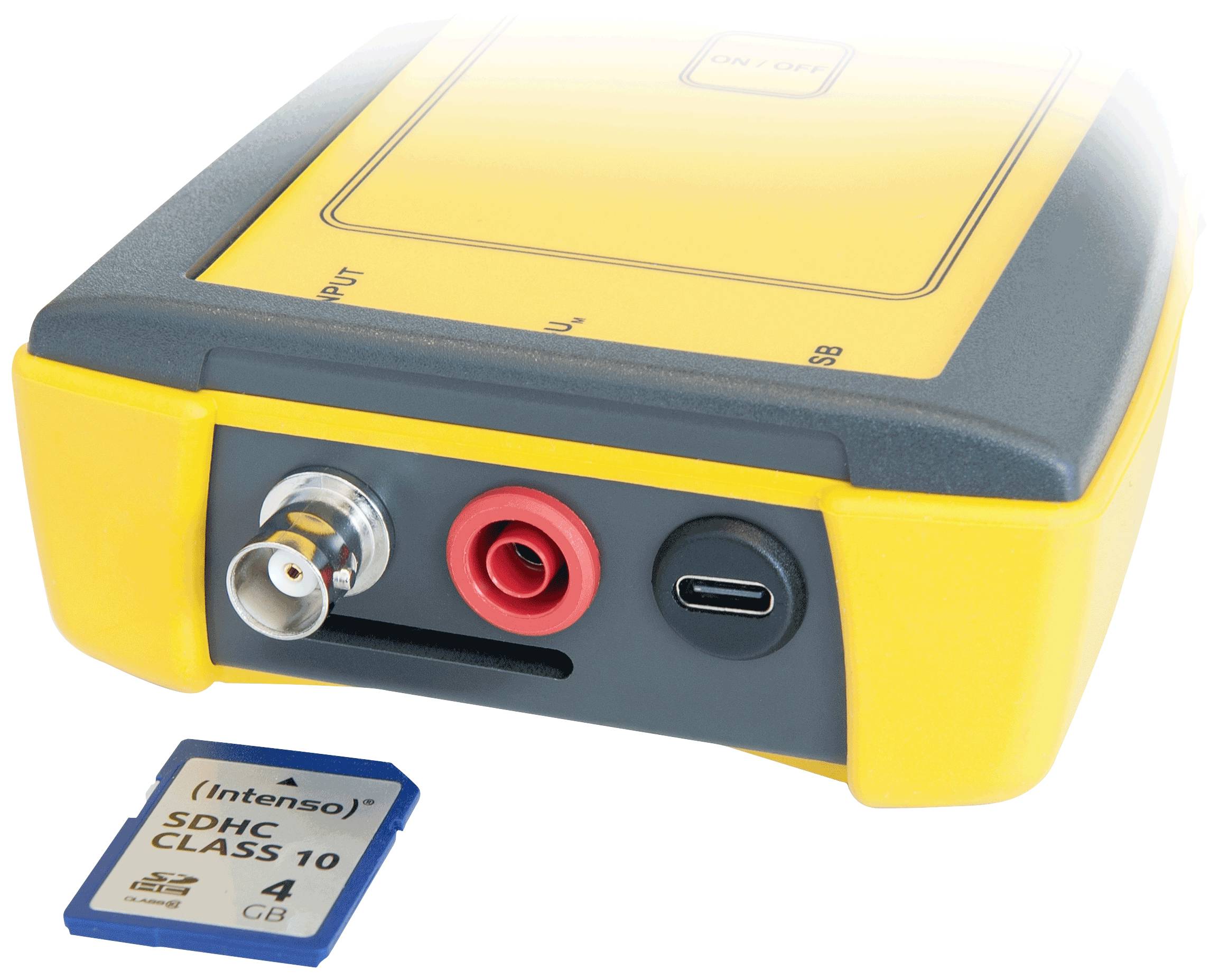

A yellow electronic device with various ports (sockets, USB-C). Beside it lies an SD card with 4 GB of storage space.

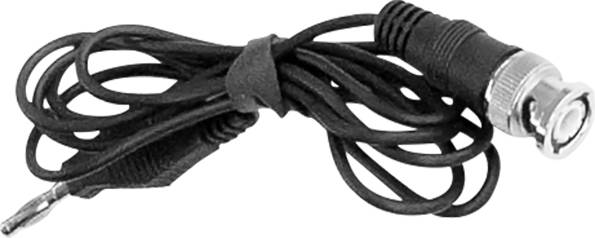

Black BNC cable with plug and crocodile clip, suitable for electrical connections and test equipment.

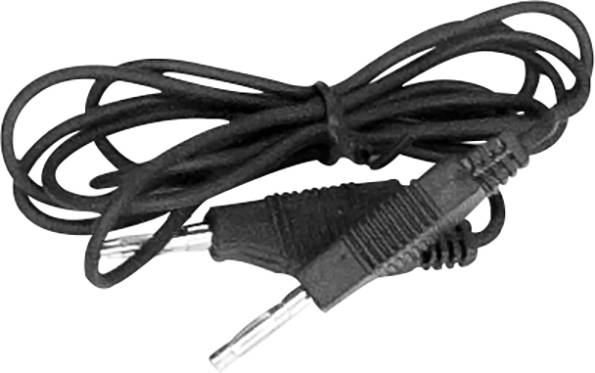

Black electrical cable with two metal plugs at the ends, coiled and held together with a cable tie.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Ohmmeter

Reading type: Resistance

: Manufacturer's standards (no certificate)

Interfaces: SD slot

Dim: (L x W x H) 4 x 10.5 x 21 cm

Weight: 400 g

Voltage reading range (max.): 100 V

Voltage reading range (min.): 10 V

Width: 10.5 cm

Height: 21 cm

Length: 4 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3152359 BJZ A-32233 RM 4000 Ohmmeter

Description

The SAFE-STAT® RM 4000 measuring device is limited to actual testing. The supplied MS Excel database allows a barcode or transponder to be assigned to the respective object. This allows a precise categorization as well as individual limits and the required measuring voltage to be determined. All measurement results are automatically saved in a txt file on the SD card. Recurring tests can thus be easily assigned to the respective object to be measured, saved and archived. Besides the resistance values, the txt file contains the defined category, the measuring voltage, temperature and air humidity values at the time of the measurement as well as the date and time of the measurement.

This text is machine translated.
