BJZ A-32258 RM 1000 Ohmmeter
EAN:
Part number:
Item no:
Technical specifications
- Measuring range 1 ohms - 1 ohms
- Product type
Ohmmeter
- Reading type
Resistance
Manufacturer's standards (no certificate)
- Interfaces
USB
- Power supply (details)
2x AA batteries
- Dim
(L x W x H) 24 x 78 x 115 mm
- Weight
180 g
- Display type
LCD Touch
- Voltage reading range (max.)
100 V
- Voltage reading range (min.)
10 V
- Width
78 mm
- Height
115 mm
- Length
24 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3152361 BJZ A-32258 RM 1000 Ohmmeter
Description

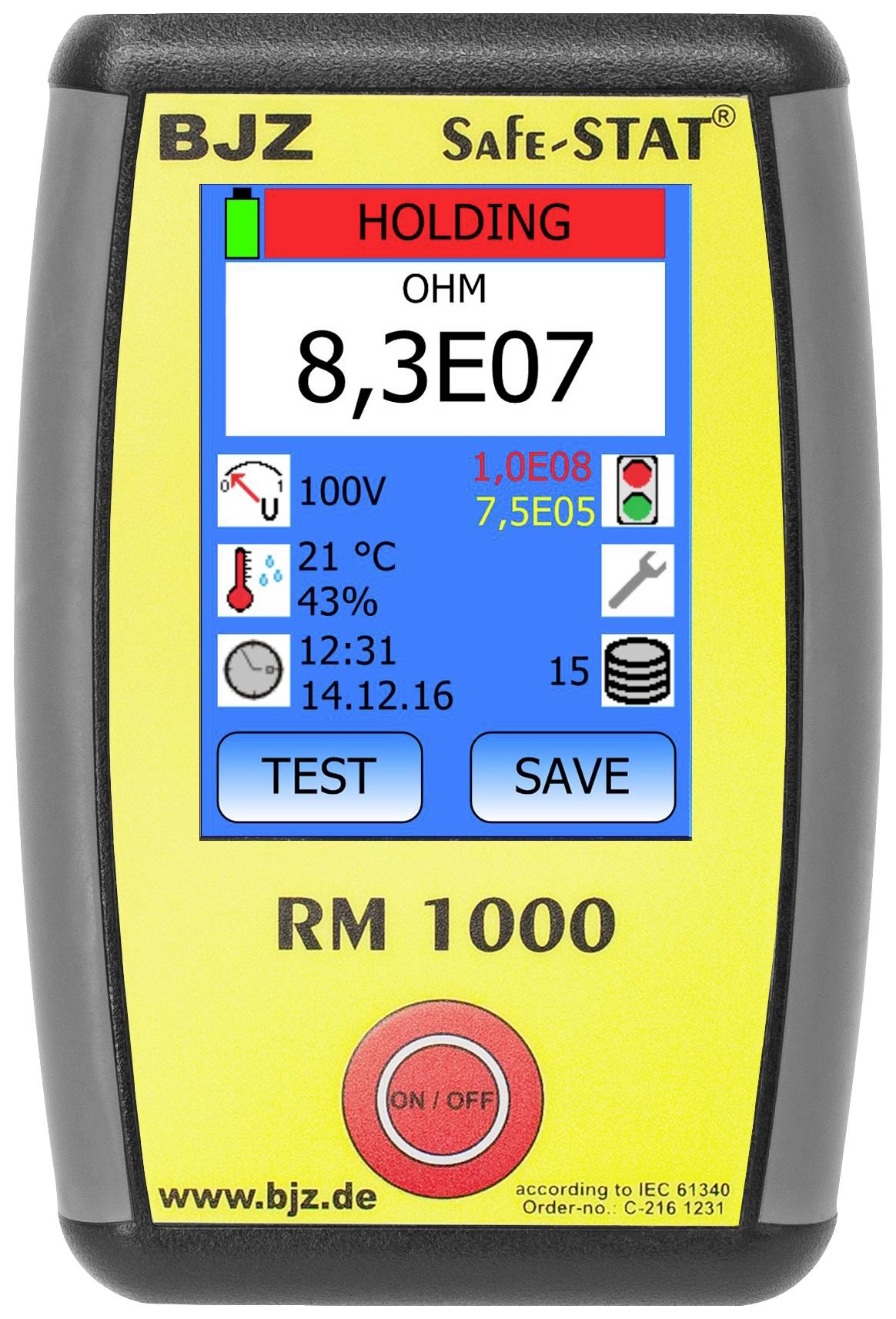

The SAFE-STAT® RM 1000 is optimally suited for fast high-ohm measurement. With the measurement voltages of 10 V and 100 V, surface, continuity and leakage resistance can be measured according to DIN EN 61340-1.
This text is machine translated.
This text is machine translated.
Features
- USB interface for reading data
- Resistance display with one decimal place (1.1 x 106 or 110 KOhm)
- Switchable resistance display from standard to scientific
- Coloured, graphic TFT touch display
- Clear display
- Numeric and graphical display of the 96 readings memory
- Built-in temperature and humidity sensor
- Battery and operation via rechargeable battery
- Automatically adjusts the measurement voltage
- Adjustable brightness of display illumination for reducing the power consumption
- Automatic device switch off after 5 minutes if no button is pressed
- The measurement accuracy is < 20% (20 °C) of the full measurement range
- Reading of the stored data memory in the device in csv format
- Upper and lower limit values can be set
- Resetting the device to factory settings
- Runs on the Windows 7, 8 and 10 operating systems
Scope of delivery
- Measurement device RM 1000 incl. test leads
- Leather case
