BJZ Kombi-Meter Ohmmeter
EAN:
Part number:
Item no:
Technical specifications
- Resistance measuring instrument:
- Measurement voltage 100 V
- Measurement range 103 - 1012 ohms
- Measuring accuracy ± ½ Decade
- Wrist tester:
- Measurement voltage 15 V
- Measurement range 0.75 - 35 MOhm
- Measuring accuracy ± 10%
- Product type
Ohmmeter
- Reading type
Resistance
Manufacturer's standards (no certificate)
- Power supply (details)
9V-Battery
- Dim
(L x W x H) 27 x 65 x 130 mm
- Weight
180 g
- Width
65 mm
- Height
130 mm
- Length
27 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3152362 BJZ Kombi-Meter Ohmmeter
Description

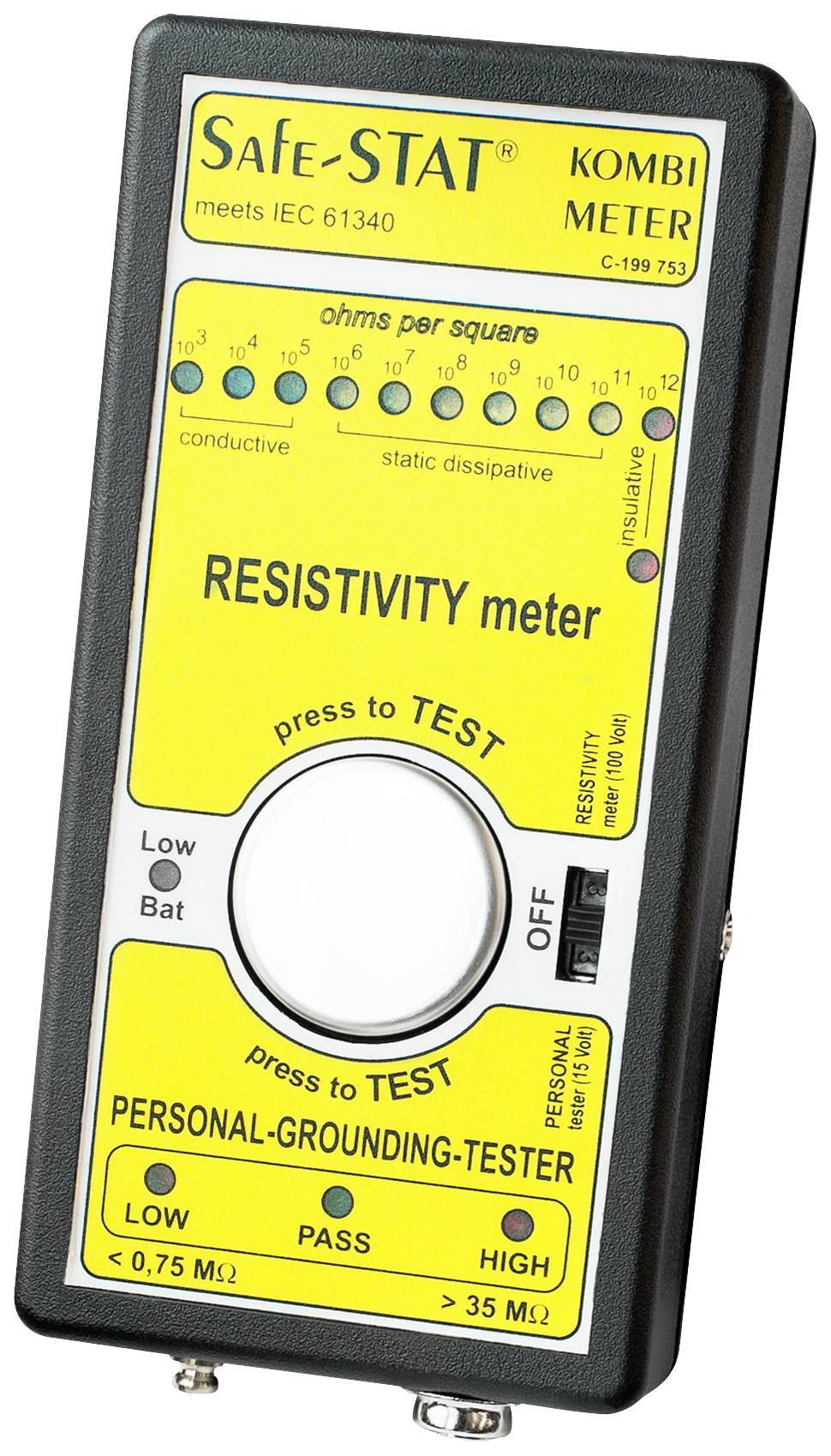

The SAFE-STAT combination meter measures surface, continuity and leakage resistance according to DIN EN 61340 with a test voltage of 100 V. The device has integrated parallel electrodes on the bottom and must be placed on the surface to be measured. Side connections allow measurements through external electrodes. The integrated strap tester for checking personal grounding via wrist strap and cable makes the handy Ideal combination device for a quick check of ESD workstations, personal grounding, etc. The unit has been successfully tested by a testing laboratory of a well-known electronics company in accordance with DIN EN 61340.
This text is machine translated.
This text is machine translated.
Features
- Integrated parallel electrodes on the lower side
- Side connections allow measurements through external electrodes.
- Integrated strap tester
Scope of delivery

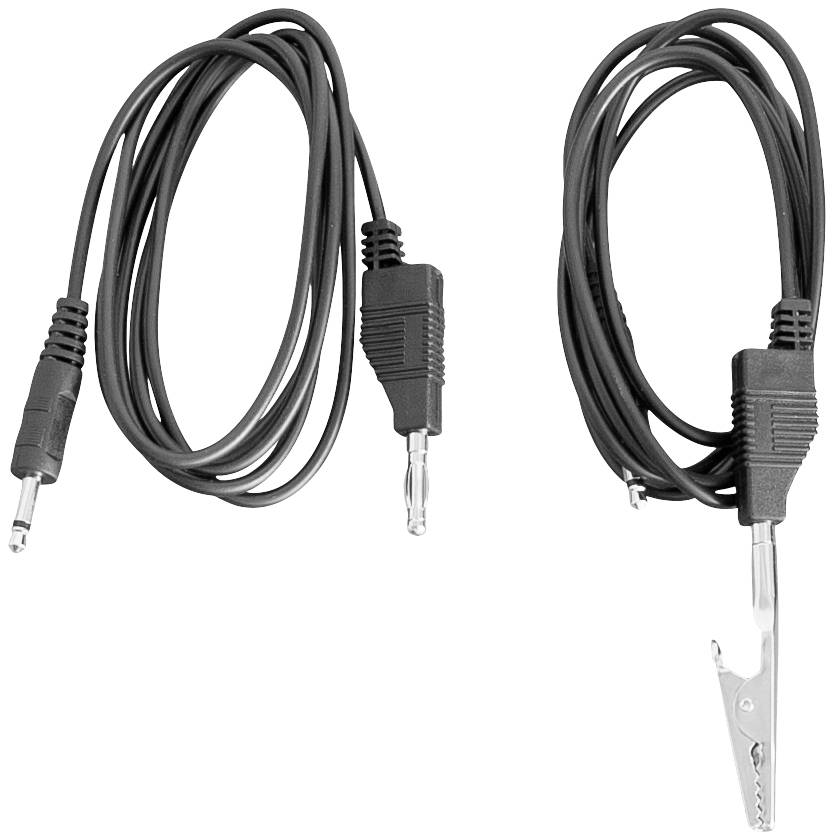

- Measurement device incl. test leads
- Leather case
