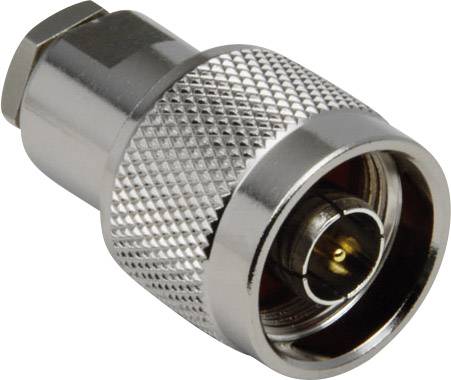

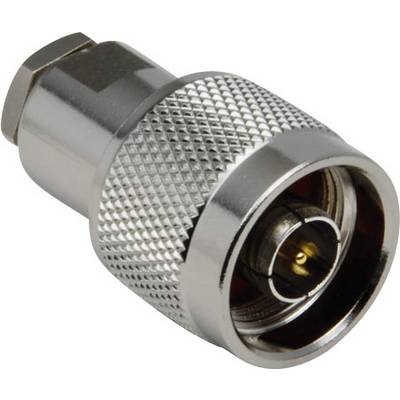

BKL Electronic 0404008/D 0404008/D N connector Plug, straight 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 8
RG 213
Product type
N connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Highlights & Details
BKL Electronic 0404008/D 0404008/D N connector Plug, straight 50 Ω 1 pc(s)
- The plug socket - name, according to the shape of the inner conductor defined.
Our service for you
Technical specifications
- Cable category
RG 8
RG 213
- Product type
N connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Cable Ø
10.30 mm
- Max. frequency
4 GHz
- Front panel thickness
3.5 mm
- Manufacturer part #
0404008/D
- Material (details)
Brass nickel plated
- RoHS-compliant
Yes
- Temperature range
-55 to 150 °C
- Type
0404008/D
- Type
Straight plug
- Frequency range
up to 4 GHz
- Test voltage
2500 V
- Type
UG-21/U
- Connection
Soldering
Documents & Downloads
Datasheet
Datasheet 252522 BKL Electronic 0404008/D 0404008/D N connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 252522 BKL Electronic 0404008/D 0404008/D N connector Plug, straight 50 Ω 1 pc(s)
Description
N-plug connector are coaxial plug connectors with screw locking for high frequency till about 11 GHz.
