BKL Electronic 10120556 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.50
21
10% = € 0.05
€ 0.45
35
12% = € 0.06
€ 0.44
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.50 / piece)
€
Highlights & Details
BKL Electronic 10120556 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s)
- Pitch: 2.54 mm
Technical specifications
- Connector type
Pin strip, straight
- Features
no ejector
- CS
2.54 mm
- No. of rows
2
- Pins per row
7
- Total number of pins
14
- Nominal voltage
250 V AC
- Nominal current
3 A
- Contact material
Brass
- Content
1 pc(s)
- Connection
Print
- Type
10120556
- Dim
(L x W x H) 8.9 x 25.38 x 11.95 mm
- Factory colour
Black
- Height
11.95 mm
- Length
8.9 mm
- Width
25.38 mm
- Compatible with (details)
Post plug connectors
- Contact surface
Gold plated
- Manufacturer part #
10120556
- Type
Without ejector lever
- Insulation resistance
1000 MΩ
- Contact resistance
20 milliohms
- Nominal current (details)
3 A
- Pins
2 x 7
- Temperature range
-40 - +105 °C
- Case material
PBT
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Product type
Pin strip
Variants(All information is without VAT, plus shipping costs)
Pins
BKL Electronic 10120556 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s)
This article
2 x 7
Minimum order quantity: 7
Multiple: 1
€ 0.50*
BKL Electronic 10120550 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 6 No. of rows: 2 1 pc(s)
2 x 3 mm
Minimum order quantity: 10
Multiple: 1
€ 0.40*
BKL Electronic 10120552 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 8 No. of rows: 2 1 pc(s)
2 x 4
Minimum order quantity: 7
Multiple: 1
€ 0.45*
BKL Electronic 10120554 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
2 x 5
Minimum order quantity: 7
Multiple: 1
€ 0.40*
BKL Electronic 10120558 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 16 No. of rows: 2 1 pc(s)
2 x 8 mm
Minimum order quantity: 7
Multiple: 1
€ 0.53*
BKL Electronic 10120560 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 20 No. of rows: 2 1 pc(s)
2 x 10
Minimum order quantity: 7
Multiple: 1
€ 0.55*
BKL Electronic 10120562 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 26 No. of rows: 2 1 pc(s)
2 x 13
Minimum order quantity: 5
Multiple: 1
€ 0.65*
BKL Electronic 10120564 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 34 No. of rows: 2 1 pc(s)
2 x 17
Minimum order quantity: 5
Multiple: 1
€ 0.54*

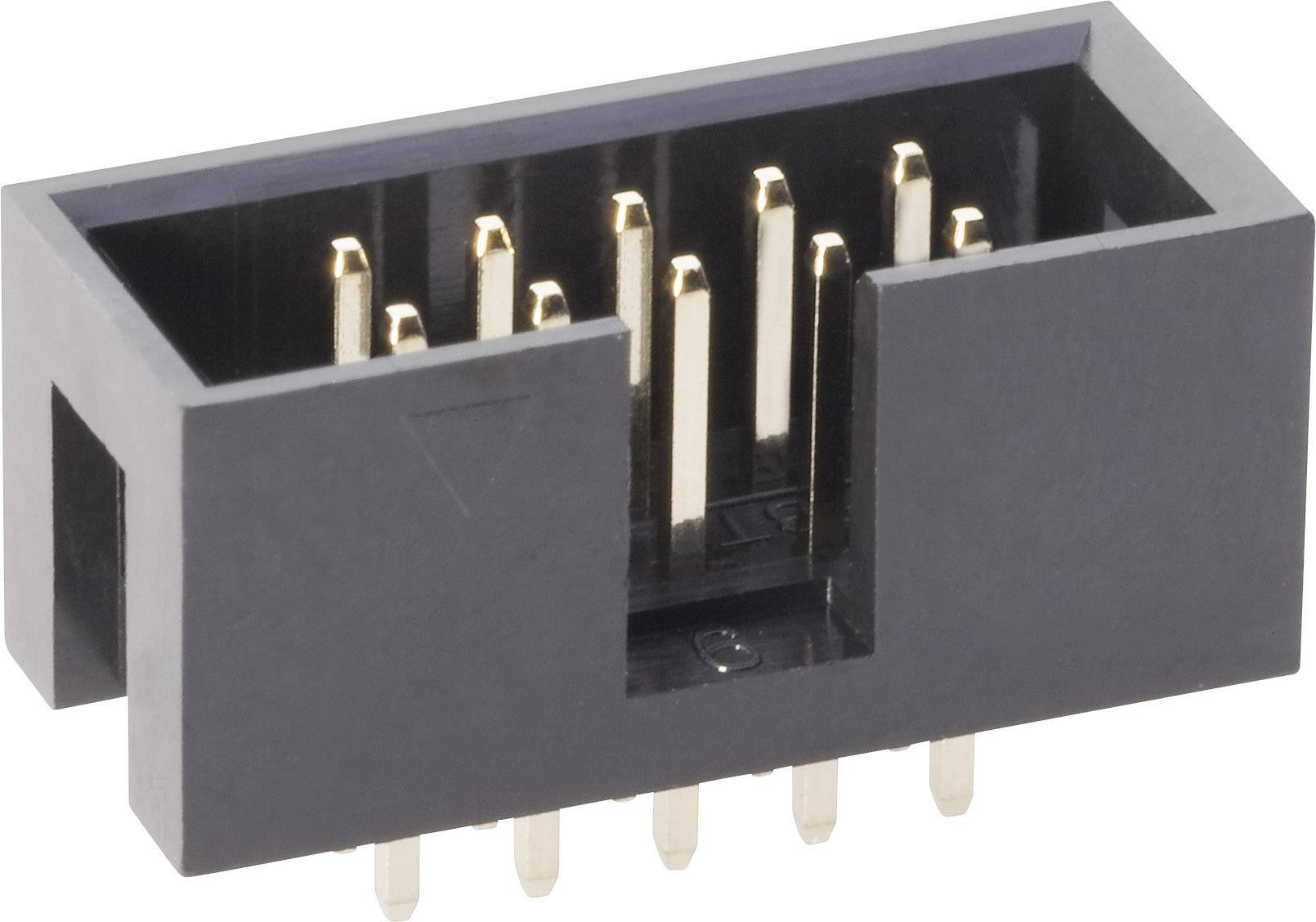

BKL Electronic 10120566 Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 40 No. of rows: 2 1 pc(s)
2 x 20
Minimum order quantity: 3
Multiple: 1
€ 0.82*
BKL Electronic 10120582 Pin strip + ejector (short/long) Contact spacing: 2.54 mm Total number of pins: 10 No. of rows: 2 1 pc(s)
2 x 5
Minimum order quantity: 3
Multiple: 1
€ 1.25*
