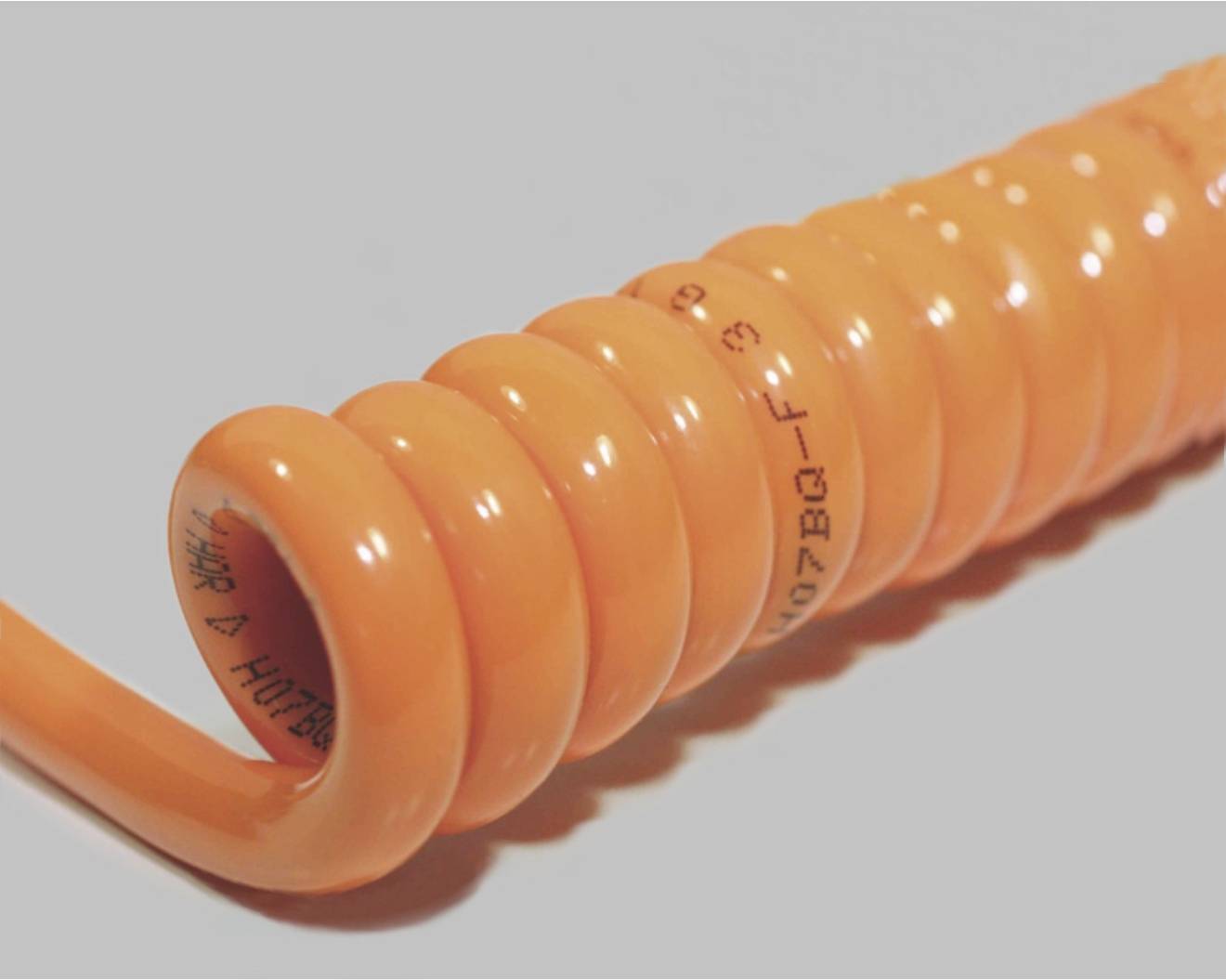

BKL Electronic 1506130 Spiral cable H07BQ-F 400 mm / 1600 mm 5 G 2.50 mm² + 5 G 2.50 mm² Orange 1 pc(s)
EAN:
Part number:
Item no:
Product type
Spiral cable
Cable type
H07BQ-F
Spiral length (min.)
400 mm
Spiral lenght (max.)
1600 mm
No. of leads
5 G
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Spiral cable PUR, H07BQ-F, 5G2,5 mm², orange, block length 400mm extendable to 1600 mm
- Finely stranded copper conductor
- EPR insulation
- Polyurethane outer sheath
- This text is machine translated.
Technical specifications
- Sheath type: PUR
- Product type
Spiral cable
- Cable type
H07BQ-F
- Spiral length (min.)
400 mm
- Spiral lenght (max.)
1600 mm
- No. of leads
5 G
- Cross section (each core)
2.50 mm²
- No. of leads (part 2)
5 G
- Cross section (each core) (part 2)
2.50 mm²
- Cross section
5 G 2.50 mm² + 5 G 2.50 mm²
- Cable features
Flexible
- Factory colour
Orange
- Content
1 pc(s)
- Halogen-free
Yes
- Shielded
No
- Manufacturer part #
1506130
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+90 °C
- RoHS-compliant
Yes
- Nominal voltage
750 V
- Nominal voltage U0
450 V
- Type
1506130
Documents & Downloads
Datasheet
Datasheet 2987205 BKL Electronic 1506130 Spiral cable H07BQ-F 400 mm / 1600 mm 5 G 2.50 mm² + 5 G 2.50 mm² Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2987205 BKL Electronic 1506130 Spiral cable H07BQ-F 400 mm / 1600 mm 5 G 2.50 mm² + 5 G 2.50 mm² Orange 1 pc(s)
Description
Features
- Unshielded
- Smooth side ends 500 mm
- Axial
- Halogen-free
- High mechanical resistivity (abrasion, tearing, notch and pressure resistance, wear resistant)
- Good bending resistance under voltage
- Good chemical resistance (against petrol, oil, grease, chemicals,...)
- Resistant to environmental influences (such as ozone, UV radiation, humidity, ...)
- Operating temperature: - 40 ... +90 °C
Hints
WARNING: Safety related component - Install
