Buy BKL Electronic 1506152 Spiral cable H07BQ-F 800 mm / 3200 mm 5 G 4.0 mm² + 5 G 4.0 mm² Orange 1 pc(s)

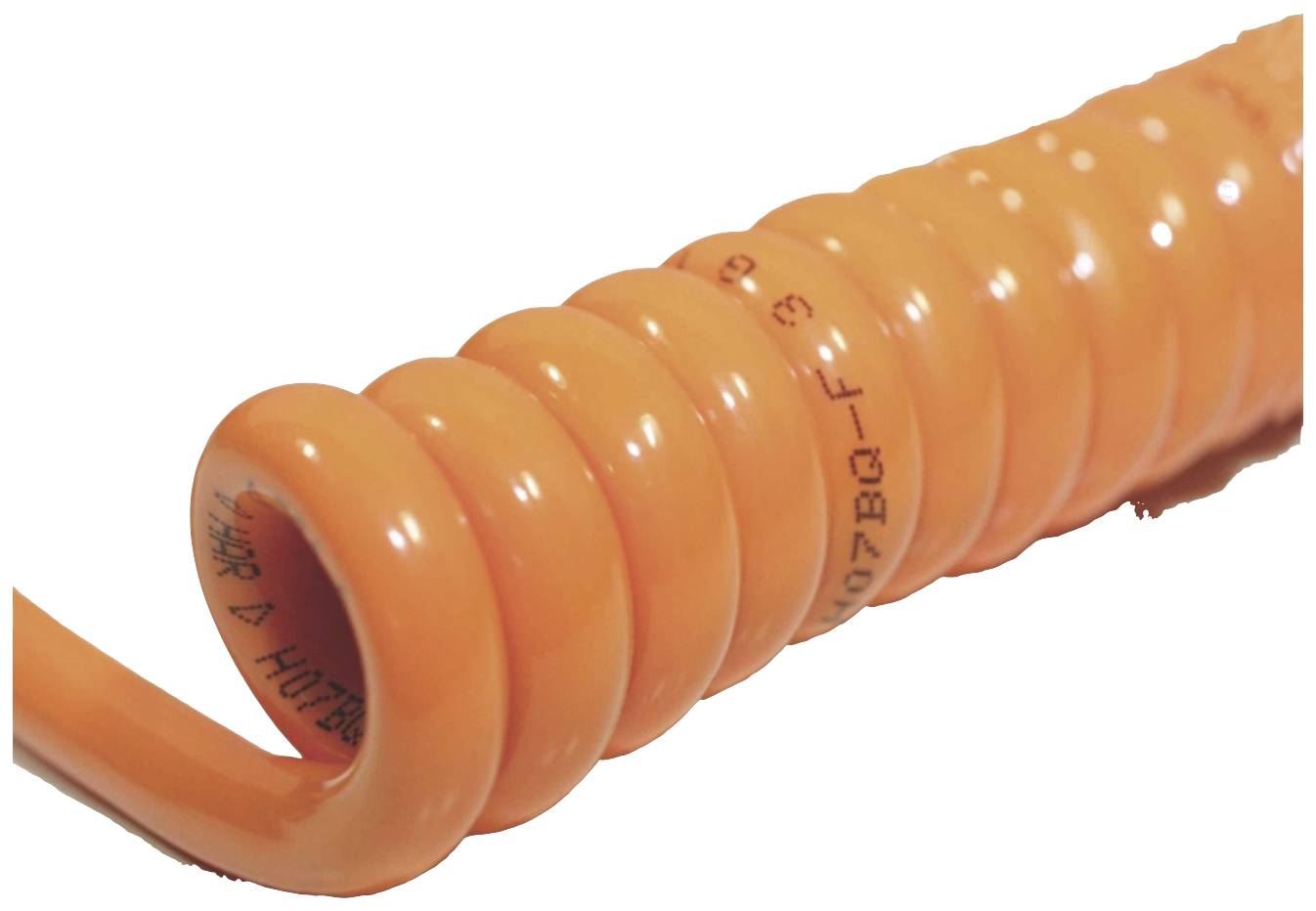

An orange spiral cable, tightly wound and marked with black text indicating technical specifications.

Product type

Spiral cable

Cable type

H07BQ-F

Spiral length (min.)

800 mm

Spiral lenght (max.)

3200 mm

No. of leads

5 G

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Spiral cable PUR, H07BQ-F, 5G4.0 mm2, orange, block length 800mm extendable to 3200mm

Our service for you

Technical specifications

Product type: Spiral cable

Cable type: H07BQ-F

Spiral length (min.): 800 mm

Spiral lenght (max.): 3200 mm

No. of leads: 5 G

Cross section (each core): 4.0 mm²

No. of leads (part 2): 5 G

Cross section (each core) (part 2): 4.0 mm²

Cross section: 5 G 4.0 mm² + 5 G 4.0 mm²

Cable features: PUR coating
Abrasion resistant
tearproof
Charpy impact tested

Factory colour: Orange

Content: 1 pc(s)

Halogen-free: Yes

Shielded: No

Manufacturer part #: 1506152

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +90 °C

RoHS-compliant: Yes

Type: Wrap cable H07BQ-F 5G4,0mm² 800 - 3200 orange

Variants(All information is without VAT, plus shipping costs)

Spiral lenght (max.)

Factory colour

No. of leads (part 2)

No. of leads

Spiral length (min.)

Cable type

Cross section (each core) (part 2)

Cross section (each core)

BKL Electronic 1506100 Spiral cable H05BQ-F 400 mm / 1600 mm 4 G 0.75 mm² + 4 G 0.75 mm² Orange 1 pc(s)

Item no:2987171

1600 mm

Orange

4 G

400 mm

H05BQ-F

0.75 mm²

BKL Electronic 1506102 Spiral cable H05BQ-F 1200 mm / 4800 mm 4 G 0.75 mm² + 4 G 0.75 mm² Orange 1 pc(s)

Item no:2987173

4800 mm

Orange

4 G

1200 mm

H05BQ-F

0.75 mm²

BKL Electronic 1506103 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 1.00 mm² + 3 G 1.00 mm² Orange 1 pc(s)

Item no:2987174

1600 mm

Orange

3 G

400 mm

H07BQ-F

1.00 mm²

BKL Electronic 1506105 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 1.00 mm² + 3 G 1.00 mm² Orange 1 pc(s)

Item no:2987176

4800 mm

Orange

3 G

1200 mm

H07BQ-F

1.00 mm²

BKL Electronic 1506106 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987177

1600 mm

Orange

3 G

400 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506107 Spiral cable H07BQ-F 800 mm / 3200 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987178

3200 mm

Orange

3 G

800 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506108 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987179

4800 mm

Orange

3 G

1200 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506109 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987180

1600 mm

Orange

3 G

400 mm

H07BQ-F

2.50 mm²

BKL Electronic 1506110 Spiral cable H07BQ-F 800 mm / 3200 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987181

3200 mm

Orange

3 G

800 mm

H07BQ-F

2.50 mm²

BKL Electronic 1506111 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987182

4800 mm

Orange

3 G

1200 mm

H07BQ-F

2.50 mm²

Documents & Downloads

Datasheet

Datasheet 3164677 BKL Electronic 1506152 Spiral cable H07BQ-F 800 mm / 3200 mm 5 G 4.0 mm² + 5 G 4.0 mm² Orange 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3164677 BKL Electronic 1506152 Spiral cable H07BQ-F 800 mm / 3200 mm 5 G 4.0 mm² + 5 G 4.0 mm² Orange 1 pc(s)

Description

Features

High mechanical resistivity (abrasion, tearing, notch and pressure resistance, wear resistant)
Good bending resistance under voltage
Good chemical resistance (against petrol, oil, grease, chemicals,...)
Resistant to environmental influences (such as ozone, UV radiation, humidity, ...)
Finely stranded copper conductor
EPR insulation
Unshielded
Smooth side ends 500 mm
Axial
This text is machine translated.

Hints

CAUTION: Safety-relevant component - Only by a specialist workshop
