Buy BKL Electronic 1506218 Spiral cable Li12Y11Y 400 mm / 1600 mm 8 x 0.50 mm² + 8 x 0.50 mm² Black 1 pc(s)

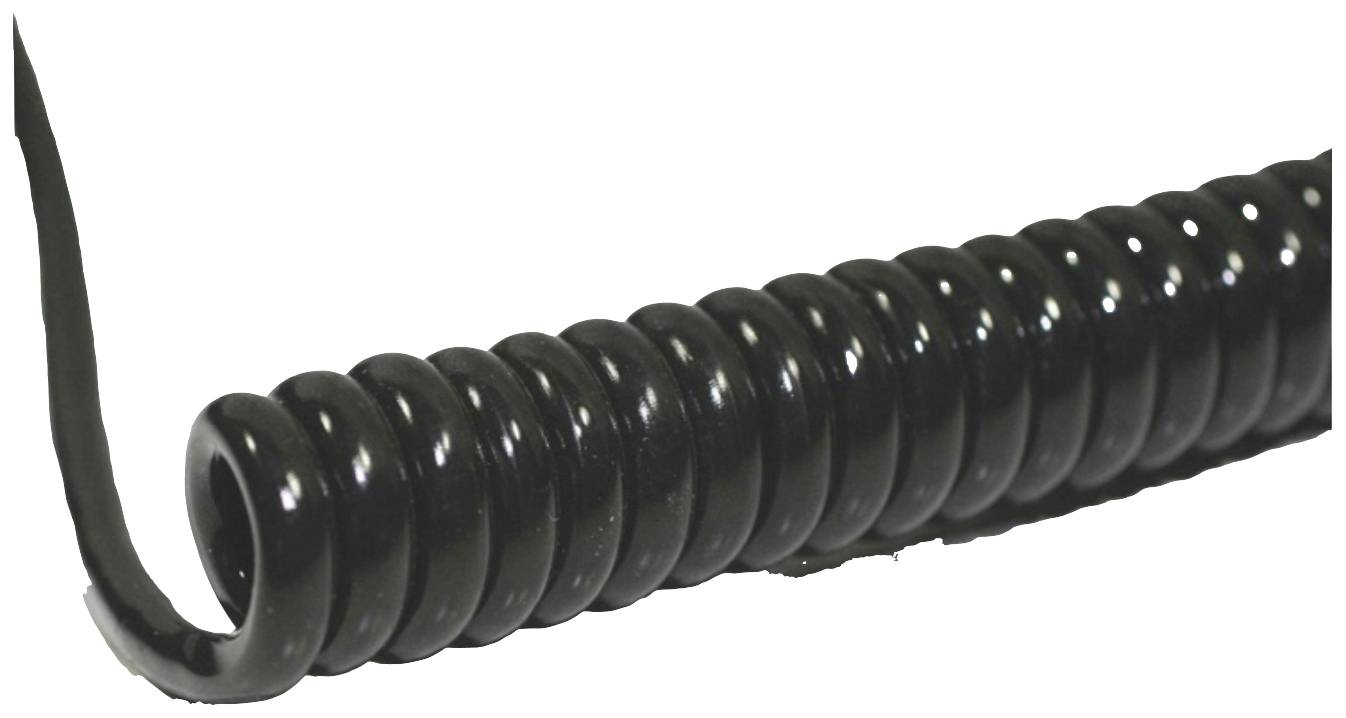

A black, spiral cable coil that is tightly wound. It demonstrates flexibility and is ready to be stretched out.

Product type

Spiral cable

Cable type

Li12Y11Y

Spiral length (min.)

400 mm

Spiral lenght (max.)

1600 mm

No. of leads

8 x

Datasheet (PDF)

Fast track dispatch on Fri, 9 Oct

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Spiral cable PUR electronic cable unshielded, Li12Y11Y, 8x0.5 mm², black, block length 400mm extendable at 1600mm

Finely stranded copper conductor
TPE-e-insulation
Polyurethane outer sheath
This text is machine translated.

Technical specifications

Sheath type: PUR

Product type: Spiral cable

Cable type: Li12Y11Y

Spiral length (min.): 400 mm

Spiral lenght (max.): 1600 mm

No. of leads: 8 x

Cross section (each core): 0.50 mm²

No. of leads (part 2): 8 x

Cross section (each core) (part 2): 0.50 mm²

Cross section: 8 x 0.50 mm² + 8 x 0.50 mm²

Cable features: Flexible

Factory colour: Black

Content: 1 pc(s)

Halogen-free: Yes

Shielded: No

Manufacturer part #: 1506218

Insulation material: TPE-E

Min. temperature range (flexible installation): -30 °C

Max. temperature range (flexible installation): +80 °C

Max. temperature range (fixed installation): +80 °C

RoHS-compliant: Yes

Nominal voltage: 300 V

Type: 1506218

Variants(All information is without VAT, plus shipping costs)

Spiral lenght (max.)

Factory colour

No. of leads (part 2)

No. of leads

Spiral length (min.)

Cable type

Cross section (each core) (part 2)

Cross section (each core)

BKL Electronic 1506100 Spiral cable H05BQ-F 400 mm / 1600 mm 4 G 0.75 mm² + 4 G 0.75 mm² Orange 1 pc(s)

Item no:2987171

1600 mm

Orange

4 G

400 mm

H05BQ-F

0.75 mm²

BKL Electronic 1506102 Spiral cable H05BQ-F 1200 mm / 4800 mm 4 G 0.75 mm² + 4 G 0.75 mm² Orange 1 pc(s)

Item no:2987173

4800 mm

Orange

4 G

1200 mm

H05BQ-F

0.75 mm²

BKL Electronic 1506103 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 1.00 mm² + 3 G 1.00 mm² Orange 1 pc(s)

Item no:2987174

1600 mm

Orange

3 G

400 mm

H07BQ-F

1.00 mm²

BKL Electronic 1506105 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 1.00 mm² + 3 G 1.00 mm² Orange 1 pc(s)

Item no:2987176

4800 mm

Orange

3 G

1200 mm

H07BQ-F

1.00 mm²

BKL Electronic 1506106 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987177

1600 mm

Orange

3 G

400 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506107 Spiral cable H07BQ-F 800 mm / 3200 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987178

3200 mm

Orange

3 G

800 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506108 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 1.50 mm² + 3 G 1.50 mm² Orange 1 pc(s)

Item no:2987179

4800 mm

Orange

3 G

1200 mm

H07BQ-F

1.50 mm²

BKL Electronic 1506109 Spiral cable H07BQ-F 400 mm / 1600 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987180

1600 mm

Orange

3 G

400 mm

H07BQ-F

2.50 mm²

BKL Electronic 1506110 Spiral cable H07BQ-F 800 mm / 3200 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987181

3200 mm

Orange

3 G

800 mm

H07BQ-F

2.50 mm²

BKL Electronic 1506111 Spiral cable H07BQ-F 1200 mm / 4800 mm 3 G 2.50 mm² + 3 G 2.50 mm² Orange 1 pc(s)

Item no:2987182

4800 mm

Orange

3 G

1200 mm

H07BQ-F

2.50 mm²

Documents & Downloads

Datasheet

Datasheet 2987227 BKL Electronic 1506218 Spiral cable Li12Y11Y 400 mm / 1600 mm 8 x 0.50 mm² + 8 x 0.50 mm² Black 1 pc(s)

Description

Features

Unshielded
Smooth side ends 500 mm
Axial
Halogen-free
High mechanical resistivity (abrasion, tearing, notch and pressure resistance, wear resistant)
Good bending resistance under voltage
Good chemical resistance (against petrol, oil, grease, chemicals,...)
Resistant to environmental influences (such as ozone, UV radiation, humidity, ...)
Operating temperature -30°C to +80°C.

Hints

WARNING: Safety related component - Install
