BKL Electronic BKL Electronic N/A 10121218 No. of pins (RJ) 8P8C Silver 1 pc(s) 10121218 No. of pins (RJ) 8P8C Silver 1
EAN:
Part number:
Item no:
Packaging type
Single
No. of pins
8P8C
Specification
CAT 8.1
Connector standard
RJ45
Type
10121218
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 4 Piece(s) available
Highlights & Details
BKL Electronic N/A 10121218 No. of pins (RJ) 8P8C Silver 1 pc(s)
Our service for you
Technical specifications
- Packaging type
Single
- Type
10121218
- No. of pins
8P8C
CAT 8.1
- Connector standard
RJ45
- AWG max.
26
- AWG (min.)
22
- Type A
LSA
- Type B
RJ45 plug
- Factory colour
Silver
- Content
1 pc(s)
- Contact material
Copper
- Material
Zinc alloy
- RoHS-compliant
Yes
- Features
Industrial-grade (w/o tools)
Documents & Downloads
Datasheet
Datasheet 3280525 BKL Electronic BKL Electronic N/A 10121218 No. of pins (RJ) 8P8C Silver 1 pc(s) 10121218 No. of pins (RJ) 8P8C Silver 1
User & Safety Instructions
User & Safety Instructions 3280525 BKL Electronic BKL Electronic N/A 10121218 No. of pins (RJ) 8P8C Silver 1 pc(s) 10121218 No. of pins (RJ) 8P8C Silver 1
Description
With the help of the angle adapter you can select up to 4 additional ways for the cable outlet.
This text is machine translated.
This text is machine translated.
Features
- Specification: CAT. 8.1 (class I)
- According to Fluke DSX-8000 CAT 8 CHANNEL TEST 2000 MHz
- STP rating
- Suitable for T568A, T568B, PoE IEEE 802.3af - PoE+ IEEE 802.3bt
- GHMT certified 2 connector channel (30m), Copper, Class I - ISO/IEC 11801-1 Ed. 1.0 (2017-11)
- Zinc alloy casing
- Mounting without tools, 4-way 90° angle adapter
- Suitable for solid conductor 1/22AWG to 1/26AWG
- Suitable for stranded wire 7/22AWG to 7/26AWG
- For wire diameters (incl. insulation) from 1.1 to 1.6mm
- For cable diameters (incl. sheath) from 5.0 - 8.5mm

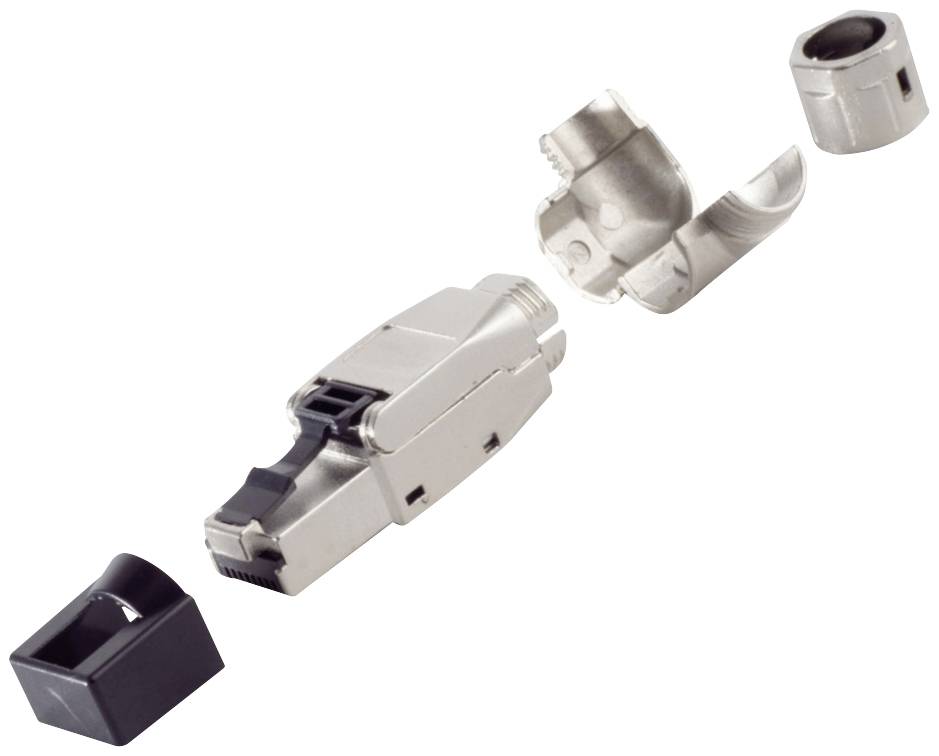

Scope of delivery
- RJ-45 plug
- Thread help / cable manager
- Straight gland 8.5mm diameter
- 4-way angle adapter 8.5mm diameter
- Copper foil tape
- Dust excluder
- Installation manual
