BKL Electronic Pin strip (standard) No. of rows: 2 Pins per row: 25 10120541 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.67
6
8% = € 0.13
€ 1.54
10
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.67 / piece)
€
Highlights & Details

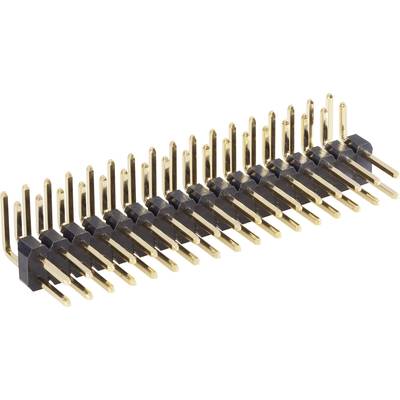

Double row multi-pin connector RM 2.54, angled
- Gold-plated
Technical specifications
- Connector type
Pin strip, right angle
- No. of rows
2
- Pins per row
25
- Total number of pins
50
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
Thermoplastic material
- Pin Ø
1.02 mm
- Pin length (receptacle)
6.10 mm
- Pin length (PCB)
3.30 mm
- Separable
No
- Dim
(L x W x H) 63.50 x 12.58 x 8.3 mm
- Manufacturer part #
10120541
- Content
1 pc(s)
- Height
8.3 mm
- Length
63.50 mm
- Width
12.58 mm
- Industrial packaging
No
- Type
10120541
- Nominal current (details)
3 A
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Product type
Pin strip (standard)
Description
Safe contact
