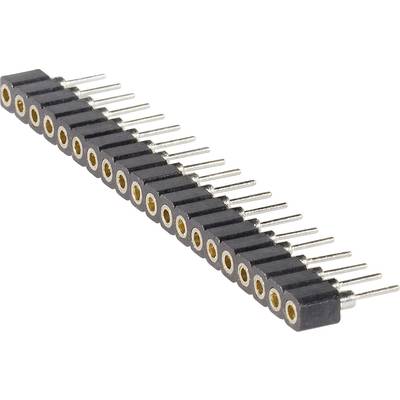

BKL Electronic SIL socket (precision) No. of rows: 1 Pins per row: 20 10120700 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
74 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€
Highlights & Details
BKL Electronic SIL socket (precision) No. of rows: 1 Pins per row: 20 10120700 1 pc(s)
- gold-plated
Technical specifications
- Precision Contacts
- Connector type
Power strip, straight
- No. of rows
1
- Pins per row
20
- Total number of pins
20
- CS
2 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Circular
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Partially gold plated
- Contact material
Copper alloy
- Case material
Thermoplastic material
- Pin Ø
0.45 mm
- Pin length (PCB)
4.28 mm
- Separable
No
- Dim
(L x W x H) 40.0 x 7.40 x 2.20 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10120700
- Content
1 pc(s)
- Height
2.20 mm
- Length
40.0 mm
- Width
7.40 mm
- Industrial packaging
No
- Type
10120700
- Socket depth
2.80 mm
- Nominal current (details)
1 A
- Connection
-
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Product type
SIL socket (precision)
Documents & Downloads
Datasheet
Datasheet 741606 BKL Electronic SIL socket (precision) No. of rows: 1 Pins per row: 20 10120700 1 pc(s)
User & Safety Instructions
User & Safety Instructions 741606 BKL Electronic SIL socket (precision) No. of rows: 1 Pins per row: 20 10120700 1 pc(s)
Description
Fits straight or angled pin headers in the RM 2.00 mm. Severable.
