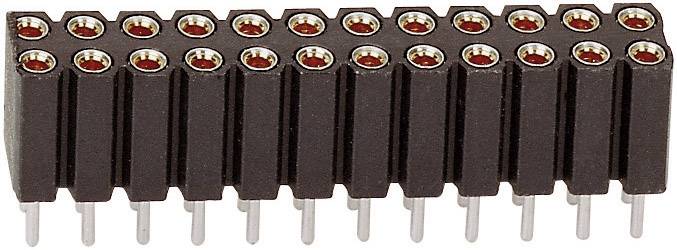

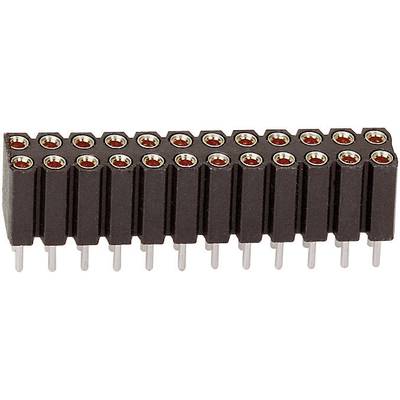

BKL Electronic SIL socket (precision) No. of rows: 2 Pins per row: 13 10120848 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, straight
Product type
SIL socket (precision)
No. of rows
2
Total number of pins
26
CS
2.54 mm
Datasheet (PDF)
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
BKL Electronic SIL socket (precision) No. of rows: 2 Pins per row: 13 10120848 1 pc(s)
- Gold-plated
Our service for you
Technical specifications
- Connector type
Power strip, straight
- Product type
SIL socket (precision)
- No. of rows
2
- Pins per row
13
- Total number of pins
26
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PPS
- Pin Ø
0.60 mm
- Pin length (PCB)
3 mm
- Separable
Yes
- Dim
(L x W x H) 33.02 x 10.00 x 5.08 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10120848
- Socket depth
7.00 mm
- Industrial packaging
No
- Content
1 pc(s)
- Width
10.00 mm
- Height
5.08 mm
- Length
33.02 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Type
10120848
- Nominal current (details)
3 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 741473 BKL Electronic SIL socket (precision) No. of rows: 2 Pins per row: 13 10120848 1 pc(s)
User & Safety Instructions
User & Safety Instructions 741473 BKL Electronic SIL socket (precision) No. of rows: 2 Pins per row: 13 10120848 1 pc(s)
Description
Round pins Ø 0.46 to 0.85mm. Contacts: 6-Finger-Precision contact with a gilded Contact spring.
