BKL Electronic SIL socket (standard) No. of rows: 1 Pins per row: 10 10120788 1 pc(s) Tray
EAN:
Part number:
Item no:
Packaging type
Tray
Connector type
Power strip, straight
Product type
SIL socket (standard)
No. of rows
1
Total number of pins
10
Datasheet (PDF)
Number
Total (€ 0.18 / piece)
€ 0.18
plus VAT.
14-day return policy included
Highlights & Details

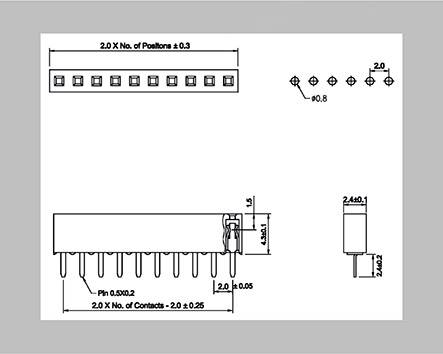

Female header single row 10 way, straight, gold plated, grid 2.00mm, overall height 4.3mm, Insulation Nylon 6T, not separable
- Content 1 pc(s)
- No. of rows 1
- Pins per row 10
Our service for you
Technical specifications
- Packaging type
Tray
- Connector type
Power strip, straight
- Product type
SIL socket (standard)
- No. of rows
1
- Pins per row
10
- Total number of pins
10
- CS
2.00 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
500 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Contact surface
Gold plated
- Contact material
Phosphorus bronze
- Case material
Nylon (NL)
- Pin length (PCB)
2.40 mm
- Separable
No
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10120788
- Socket depth
2.40 mm
- Content
1 pc(s)
- Height
4.30 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
10120788
Documents & Downloads
Datasheet
Datasheet 2356440 BKL Electronic SIL socket (standard) No. of rows: 1 Pins per row: 10 10120788 1 pc(s) Tray
