Buy BKL Electronic SIL socket (standard) No. of rows: 2 Pins per row: 5 10122242 1 pc(s) Tube

A black electronic plug with five golden contacts, lying on a light surface.

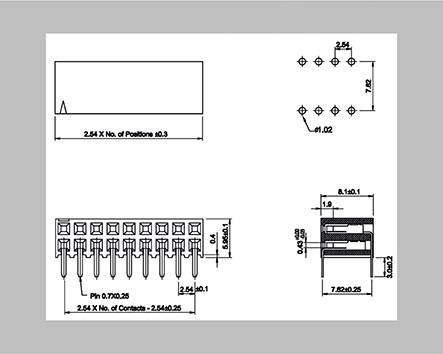

Technical drawing of an electronic connector with dimensions for width, height, number of contacts, and positions.

1/2

Packaging type

Tube

Connector type

Power strip, straight

Product type

SIL socket (standard)

No. of rows

Total number of pins

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

367 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 2

Total (€ 1.67 / piece)

€ 3.34

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Double row socket connector with Side Entry 2x5-pin, straight, gold-plated, 2.54mm pitch, Nylon 6T insulation, cannot be separated

Content 1 pc(s)
No. of rows 2
Pins per row 5

Our service for you

Technical specifications

Packaging type: Tube

Connector type: Power strip, straight

Product type: SIL socket (standard)

No. of rows: 2

Pins per row: 5

Total number of pins: 10

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 600 V

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Phosphorus bronze

Case material: Nylon (NL)

Pin length (PCB): 3.00 mm

Separable: No

Connector orientation: Parallel (to the PCB)

Manufacturer part #: 10122242

Socket depth: 8.10 mm

Content: 1 pc(s)

Height: 5.95 mm

RoHS-compliant: Yes

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: 10122242
