BKL Electronic SIL socket (standard) No. of rows: 2 Pins per row: 8 10122221 1 pc(s) Tray
EAN:
Part number:
Item no:
Packaging type
Tray
Connector type
Power strip, straight
Product type
SIL socket (standard)
No. of rows
2
Total number of pins
16
Datasheet (PDF)
Number
Total (€ 0.45 / piece)
€ 0.45
plus VAT.
14-day return policy included
Highlights & Details

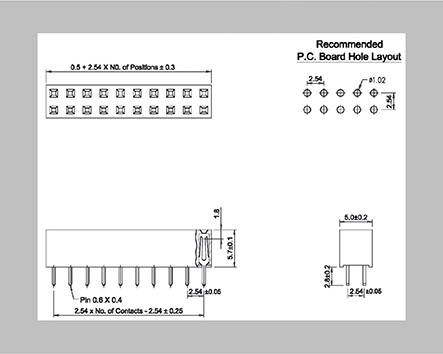

Female header dual row 2x8 pin, straight, gold plated, grid 2.54mm, overall height 5.7mm, cannot be separated
- Content 1 pc(s)
- No. of rows 2
- Pins per row 8
Our service for you
Technical specifications
- Packaging type
Tray
- Connector type
Power strip, straight
- Product type
SIL socket (standard)
- No. of rows
2
- Pins per row
8
- Total number of pins
16
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
600 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Phosphorus bronze
- Case material
PBT
- Pin length (PCB)
2.80 mm
- Separable
No
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10122221
- Socket depth
5.00 mm
- Content
1 pc(s)
- Height
5.70 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
10122221
Documents & Downloads
Datasheet
Datasheet 2356412 BKL Electronic SIL socket (standard) No. of rows: 2 Pins per row: 8 10122221 1 pc(s) Tray
