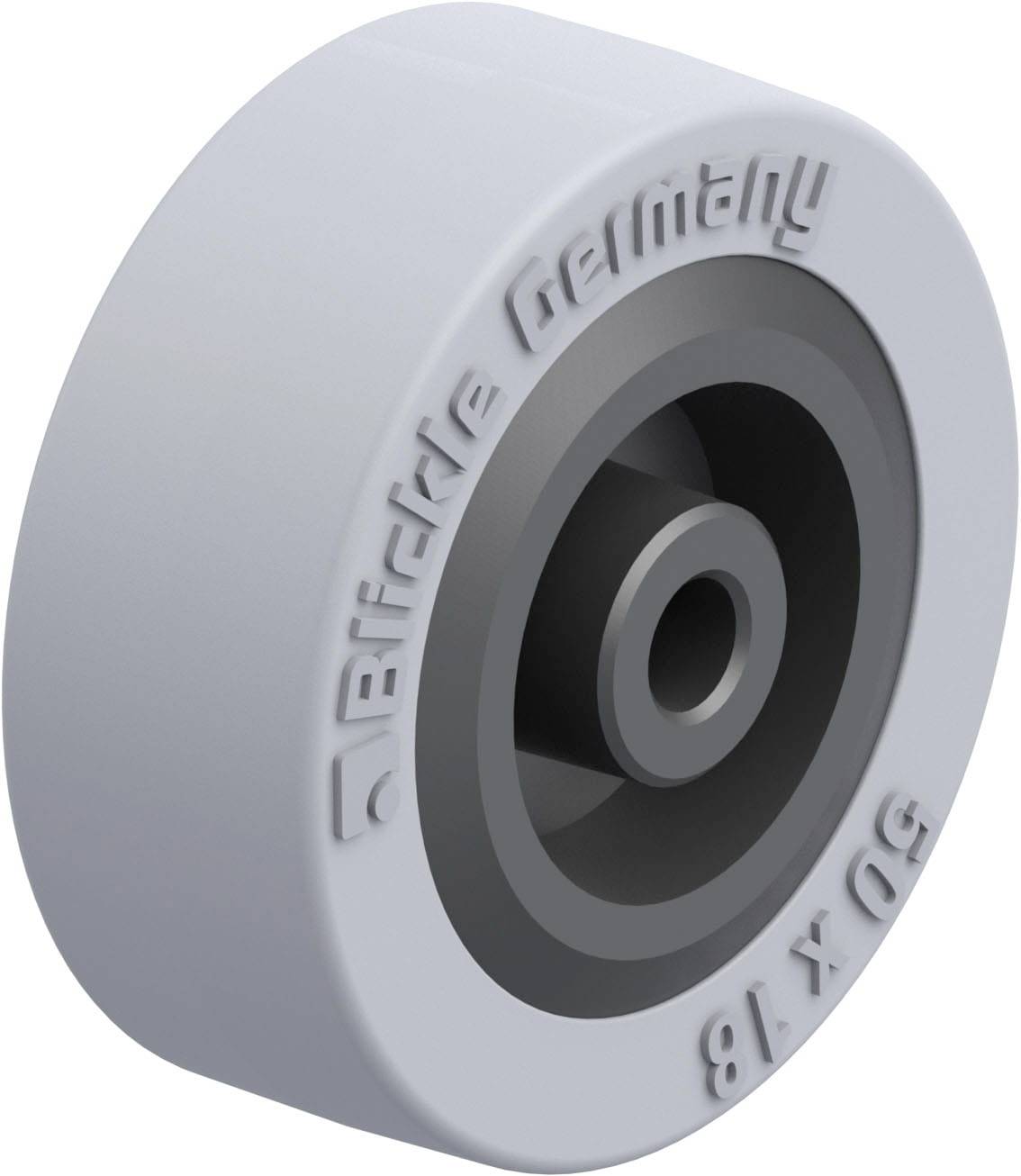

Blickle 109421 VPA 50/6G Wheel Wheel diameter: 50 mm Load capacity (max.): 40 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 3 km/h: 40 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Rubber
- Colour run lining: Grey
- Colour wheel body: Black
- Temperature resistance up to 60 °C
- Temperature resistance min -20 oC
- Coating hardness 80 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
50 mm
- Load capacity (max.)
40 kg
- Axle hole diameter
6 mm
- Wheel width
18 mm
- Bearing type
Plain bearing
- Material
Rubber
- Factory colour
Grey
- Content
1 pc(s)
- Hub length
22 mm
- Weight
0.041 kg
Documents & Downloads
Datasheet
Datasheet 3058865 Blickle 109421 VPA 50/6G Wheel Wheel diameter: 50 mm Load capacity (max.): 40 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058865 Blickle 109421 VPA 50/6G Wheel Wheel diameter: 50 mm Load capacity (max.): 40 kg 1 pc(s)
Description
Wheel with solid tires, with plastic rim
Tyres:
• High quality solid rubber, hardness 80 shore A.
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Colour gray, trackless, contact-free (version electrically conductive "-EL" color black, chalk)
Rim:
• High-quality polyamide 6 or Polypropylene on variant "-EL", break-proof
• Colour black
Other properties:
• High chemical resistance to many aggressive media, but not to oils
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
