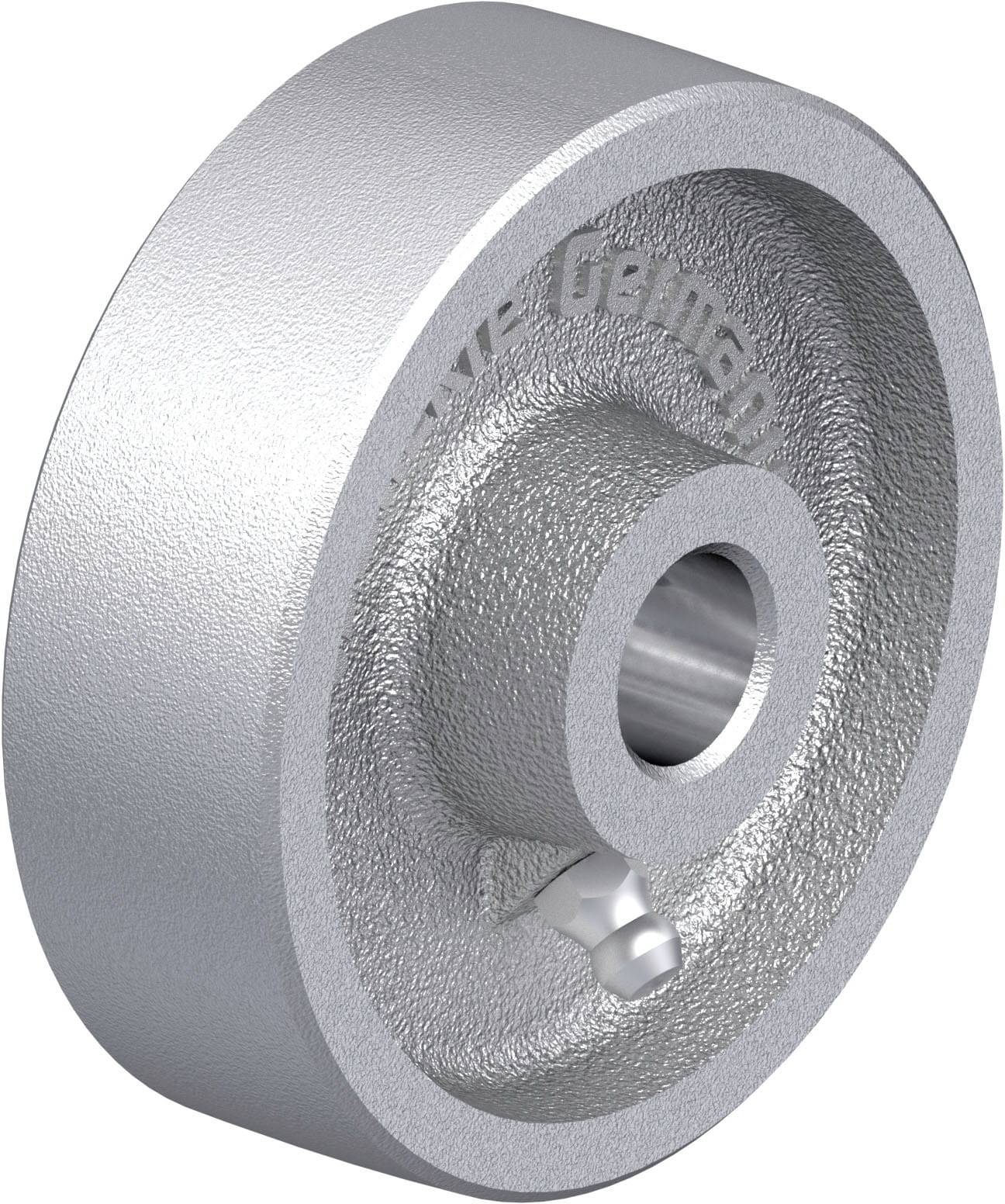

Blickle 14118 G 80/15G Wheel Wheel diameter: 80 mm Load capacity (max.): 250 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 250 kg
- Material wheel body: Robust gray cast iron
- Material run lining: Metal
- Colour run lining: Silver
- Colour wheel body: Silver gray
- Temperature resistance up to 600 °C
- Temperature resistance min -100 oC
- Coating hardness 180–220 HB
- Without a trace: No.
- Anti-static: No.
- Electrically conductive: Yes
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat-resistant: Yes
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
80 mm
- Load capacity (max.)
250 kg
- Axle hole diameter
15 mm
- Wheel width
25 mm
- Bearing type
Plain bearing
- Material
Metal
- Factory colour
Silver
- Content
1 pc(s)
- Hub length
35 mm
- Weight
0.553 kg
Documents & Downloads
Datasheet
Datasheet 3051274 Blickle 14118 G 80/15G Wheel Wheel diameter: 80 mm Load capacity (max.): 250 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051274 Blickle 14118 G 80/15G Wheel Wheel diameter: 80 mm Load capacity (max.): 250 kg 1 pc(s)
Description
Cast wheel
Wheel:
• Robust cast iron, hardness 180–220 HB
• With lubricating nipple
• Extremely low rolling and slewing resistance
• extremely resistant to wear
• Bearing surface and flanks overtwisted
Painted •, color silver
Other properties:
• Chemical resistance to many aggressive media
• For pressure-sensitive floors, observe surface pressure
• Ensure adequate, regular lubrication for the plain bearing version
• Lubrication with a lubricant adapted to the application temperature
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
