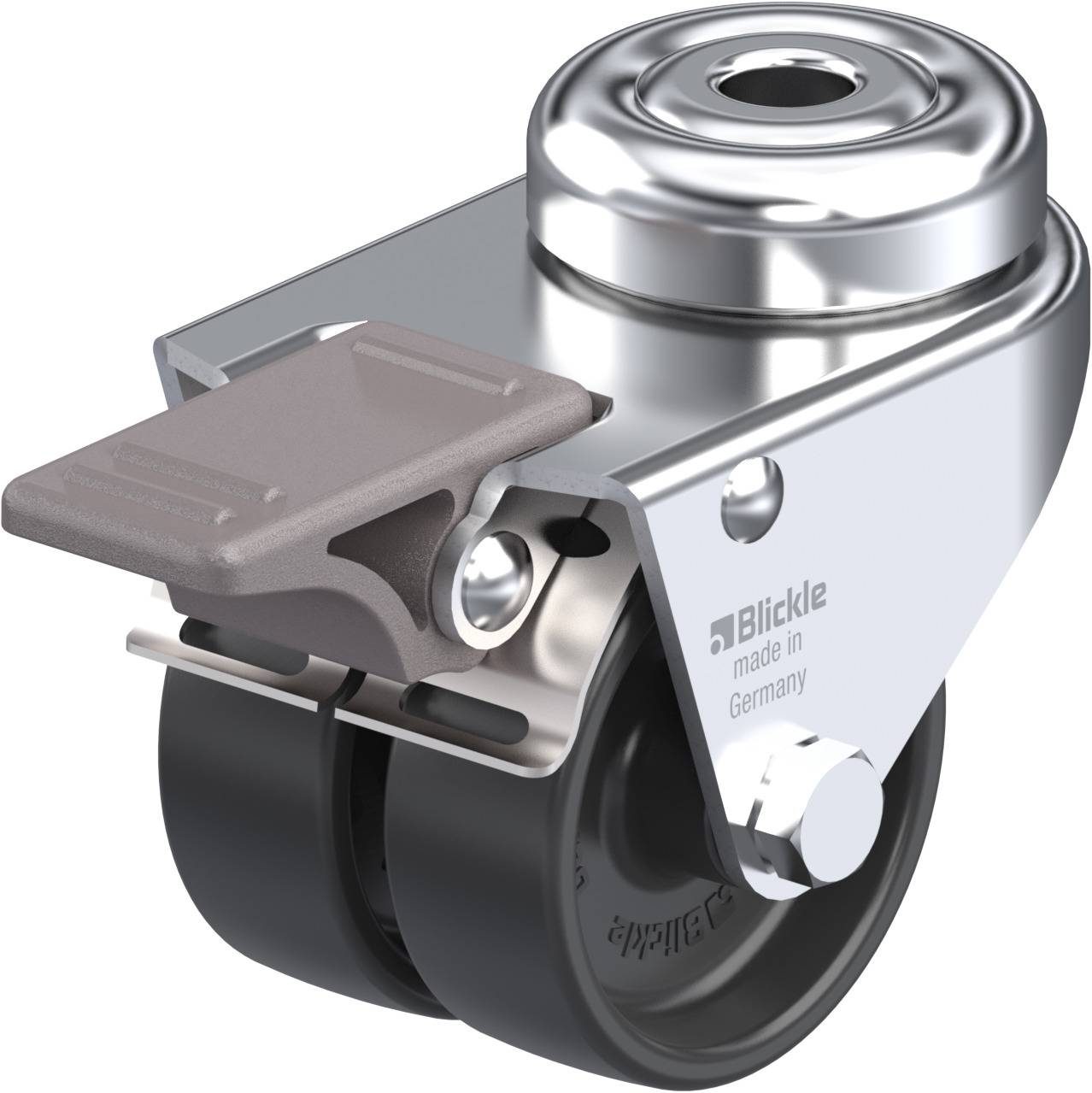

Blickle 276394 LMDA-POA 50G-FI Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 13.44
-19 %
€ 10.92
plus VAT.
Highlights & Details
Apparate-Double-steering, Ø 50 mm mit reverse lock
- Plain Bearings
- This text is machine translated.
Technical specifications
- Product type
Double swivel wheel
- Wheel Ø
50 mm
- Load capacity (max.)
80 kg
- Features
Rear opening
Brake
- Total height
71 mm
- Size
41 mm
- Wheel width
18 mm
- Bearing type
Plain bearing
- Material
Polyamide 6
- Factory colour
Black
- Content
1 pc(s)
- Material (details)
Casing made of Steel sheet, wheels of Polyamid
- Type
Double wheels with reverse lock and stop-fix-Breaks
- Tyre width
2 x 18 mm
Documents & Downloads
Datasheet
Datasheet 887559 Blickle 276394 LMDA-POA 50G-FI Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 887559 Blickle 276394 LMDA-POA 50G-FI Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 1 pc(s)
Description
Apparate-Double-steering wheel with reverse lock, with stopper 'stop-fix',
Wheels of Polyamid
Casing: Series LMDA
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating ring riveted
Wheel: POA series
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color black
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
This text is machine translated.
Wheels of Polyamid
Casing: Series LMDA
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating ring riveted
Wheel: POA series
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color black
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
This text is machine translated.
Features
- Casing made of sheet steel pressed with two-fold ball bearing in the rotor collar
- Axle screwed together
- Back hole diameter: 10.2 mm
- Wheels made from premium Polyamid
- Color black.
- High abrasion resistance
- Low rolling resistance
- Smooth run on even surfaces
- Shock and impact resistant
- Corrosion-resistant
- High chemical stability against alcohol, salts, fats and against certain acids and bases
- With sleeve bearings.
