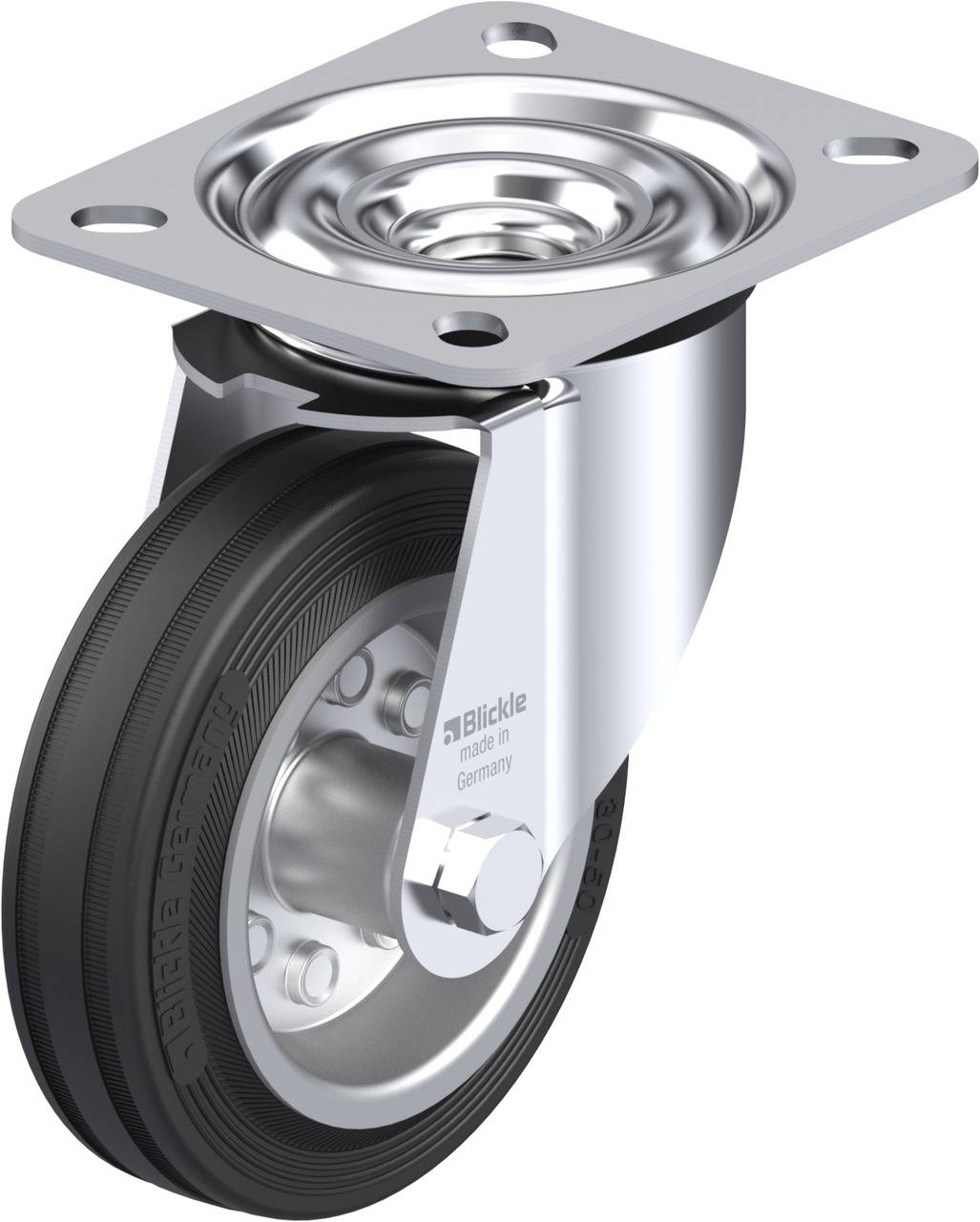

Blickle 280644 LE-VE 100R Swivel wheel Wheel diameter: 100 mm Load capacity (max.): 70 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
Device swivel castor, Ø 100 mm
- Roller bearing
- fully rubberised wheels;
Technical specifications
- Product type
Swivel wheel
- Wheel Ø
100 mm
- Load capacity (max.)
70 kg
- Features
Mount
- Total height
125 mm
- Size
100 x 85 mm
- Wheel width
30 mm
- Bearing type
Roller bearing
- Material
Solid rubber
- Factory colour
Black
- Content
1 pc(s)
- Hole distance
80 x 60 mm
- Material (details)
Full-rubber tyres, casing made of galvanised sheet steel
- Type
Guide roller
- Tyre width
30 mm
Documents & Downloads
Datasheet
Datasheet 826813 Blickle 280644 LE-VE 100R Swivel wheel Wheel diameter: 100 mm Load capacity (max.): 70 kg 1 pc(s)
Datasheet 826813 Blickle 280644 LE-VE 100R Swivel wheel Wheel diameter: 100 mm Load capacity (max.): 70 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 826813 Blickle 280644 LE-VE 100R Swivel wheel Wheel diameter: 100 mm Load capacity (max.): 70 kg 1 pc(s)
Description
Steel sheet swivel castor with mounting plate,
Wheel with standard solid rubber tires, with steel plate rim
Housing: Series LE
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VE
• Tyres: Standard solid rubber, hardness 80 shore A, color black
• Rim: Steel plate, pressed, galvanized electrically, blue passivated, Cr6-free
Other properties:
• Chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -25 °C to +80 °C, reduced load capacity above +60 °C.
This text is machine translated.
Wheel with standard solid rubber tires, with steel plate rim
Housing: Series LE
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VE
• Tyres: Standard solid rubber, hardness 80 shore A, color black
• Rim: Steel plate, pressed, galvanized electrically, blue passivated, Cr6-free
Other properties:
• Chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -25 °C to +80 °C, reduced load capacity above +60 °C.
This text is machine translated.
Features
- Case with double ball bearings in rotating assembly
- Axle is firmly screwed down, galvanised - chrome-plated
- Wheel with standard solid rubber tyres
- Rim pressed out of sheet metal
- Roller bearing.
