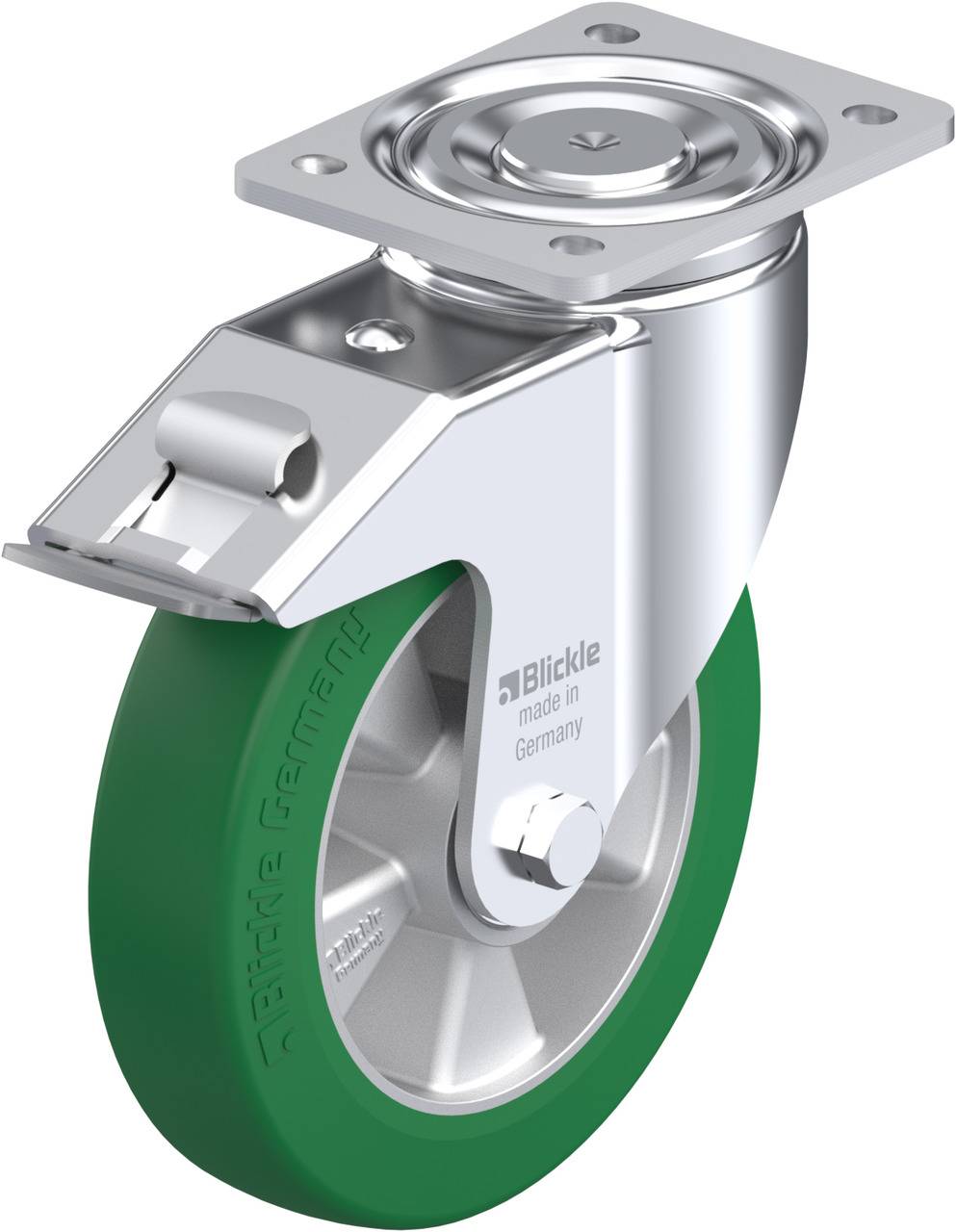

Blickle 579581 LH-ALST 200K-FI Swivel wheel with brake Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Swivel wheel with brake
- Wheel Ø
200 mm
- Load capacity (max.)
750 kg
- Features
Mount
Brake
- Total height
245 mm
- Size
140 x 110 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Polyurethane elastomer
- Factory colour
Green
- Content
1 pc(s)
- Hole distance
105 x 75-80 mm
Documents & Downloads
Datasheet
Datasheet 891417 Blickle 579581 LH-ALST 200K-FI Swivel wheel with brake Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 891417 Blickle 579581 LH-ALST 200K-FI Swivel wheel with brake Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
Description
Steel sheet swivel castor, heavy-duty design, with mounting plate, with locking device 'stop-fix',
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body
Housing: Series LH
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Heavy fork and floor plate
• Double ball bearing in rotating assembly
• Very stable center bolts, screwed and secured
• Especially resistant to impact and impact by four specially shaped hardened bearing shellswheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color green, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body
Housing: Series LH
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Heavy fork and floor plate
• Double ball bearing in rotating assembly
• Very stable center bolts, screwed and secured
• Especially resistant to impact and impact by four specially shaped hardened bearing shellswheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color green, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Features
- Casing: Made of compressed steel sheet;
- Steering roller casing with heavy gabl and base plate
- With very stable center bolts screwed and secured
- With double ball bearing in turntable
- In addition, enhanced by the installation of four specially designed, hardened bearing shells, as a result especially insensitive to shocks and impacts
- Axle screwed together
- Zinc plated - chromated Wheels: tread: made of Polyurethane Blickle Soft Hane ®
- Hard up shot
- Colour: green
- No track
- Very high driving comfort thanks especially thick elastic tread
- 75° Shore A
- Resistant to abrasion
- High cutting - and High tear strength
- No discolouration on contact
- Protects ground
- Low operating noise
- Low rolling resistance
- excellent chemical connection with the wheel bodies
- Wheel body: made of die-cast aluminum
- Corrosion-resistant
- With ball bearing
- Color aluminum.
- This text is machine translated.
