Blickle 607572 B-PHN 81G Fixed wheel Wheel diameter: 80 mm Load capacity (max.): 100 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Highlights & Details
Heat-resistant wheels and fixed castors
- Steel sheet
- Two way ball bearing
- Heat-resistant
Technical specifications
- Product type
Fixed wheel
- Wheel Ø
80 mm
- Load capacity (max.)
100 kg
- Features
Mount
- Total height
102 mm
- Size
100 x 85 mm
- Wheel width
32 mm
- Bearing type
Plain bearing
- Material
Phenol formaldehyde resin
- Factory colour
Black
- Content
1 pc(s)
- Hole distance
80 x 60 mm
Documents & Downloads
Datasheet
Datasheet 891302 Blickle 607572 B-PHN 81G Fixed wheel Wheel diameter: 80 mm Load capacity (max.): 100 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 891302 Blickle 607572 B-PHN 81G Fixed wheel Wheel diameter: 80 mm Load capacity (max.): 100 kg 1 pc(s)
Description

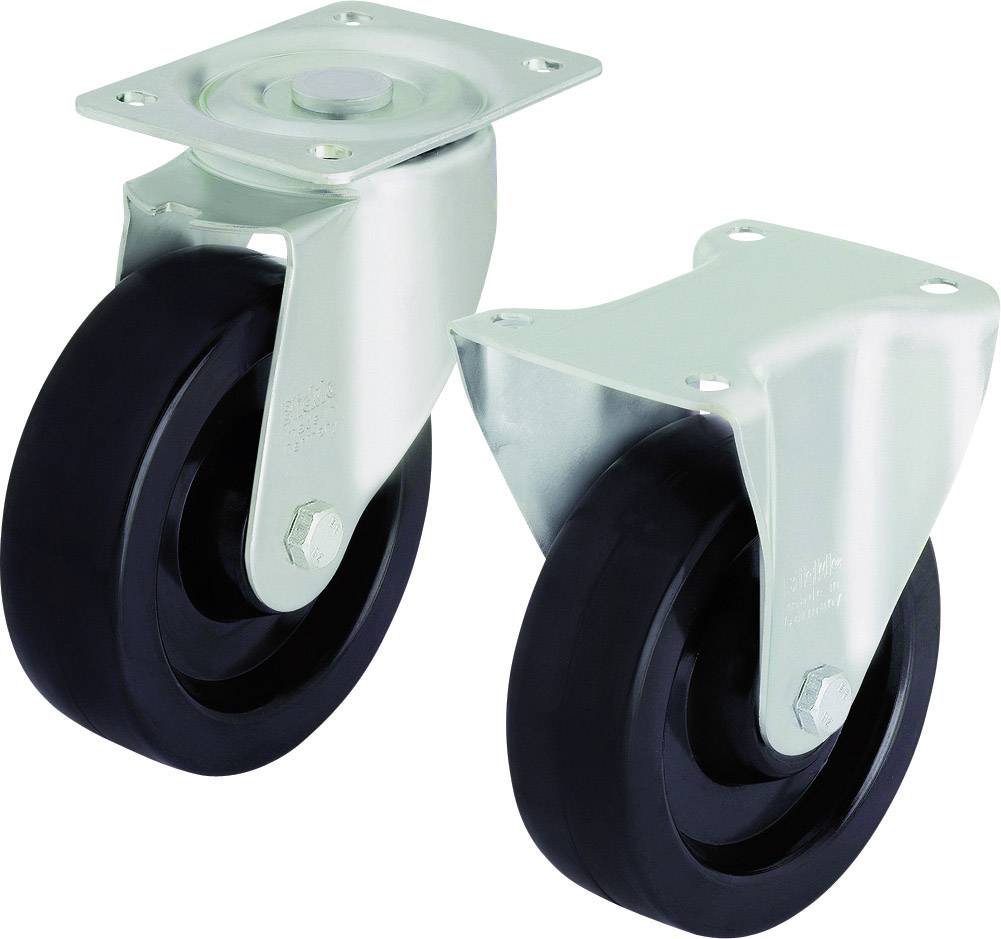

Pressed from sheet steel, steering housing with double ball bearing in rotating collar, with stable centre bolts, ball protection thanks to special shape of the mounting plate. The special dynamic Blickle riveting of the rotating collar enables smooth running properties, a long service life and the rotating collar play adapted to high temperature usage, with highly heat-resistant grease. Plain bearing versions (wheel-Ø 80-125 mm) with Teflon-coated stainless steel axle tube. Axle screwed together. Galvanised, blue passivated, Cr6-free. Wheels: Phenolic resin, 90° shore D. Temperature-resistant from -35°C to +260°C, short-term up to +300°C.
