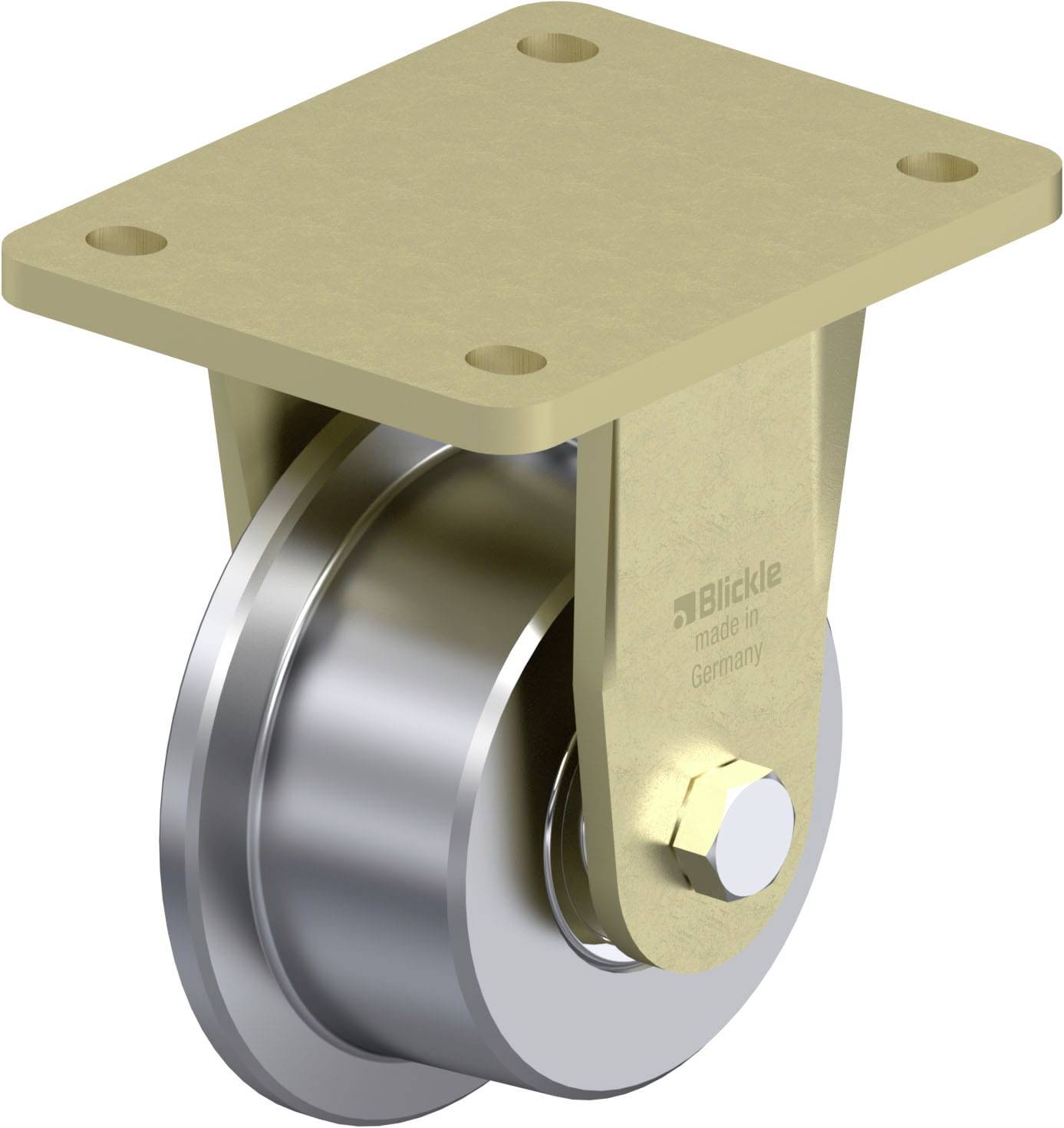

Blickle 736701 BS-SPKVS 100K Heavy-duty fixed wheel Wheel diameter: 100 mm Load capacity (max.): 1200 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 1200 kg
- Wheel body material: Hardened steel
- Material run lining: Metal
- Colour run lining: Silver
- Temperature resistance up to 120 °C
- Temperature resistance min -20 oC
- Coating hardness 190–230 HB
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated wheel: SPKVS 100K
- Product type
Heavy-duty fixed wheel

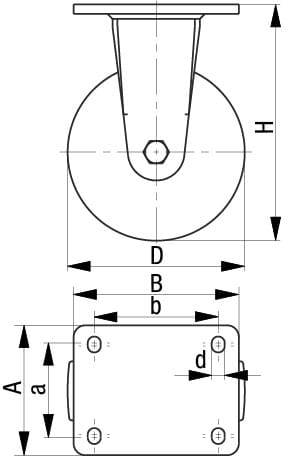

- Wheel Ø
100 mm
- Load capacity (max.)
1200 kg
- Total height
157 mm
- Size
140 x 110 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Metal
- Factory colour
Silver
- Content
1 pc(s)
- Weight
4.67 kg
Documents & Downloads
Datasheet
Datasheet 3051182 Blickle 736701 BS-SPKVS 100K Heavy-duty fixed wheel Wheel diameter: 100 mm Load capacity (max.): 1200 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051182 Blickle 736701 BS-SPKVS 100K Heavy-duty fixed wheel Wheel diameter: 100 mm Load capacity (max.): 1200 kg 1 pc(s)
Description
Steel welded heavy-duty fixed roller,
Wheel of reinforced steel
Housing: Series BS
• Particularly robust steel welding construction
• Galvanically galvanized, yellow passivated, Cr6-free
Wheel: Series SPKVS
• Quenched steel, hardness 190–230 HB
Other properties:
• Chemical resistance to many aggressive media
• Temperature resistance:
Ball bearing version -20 °C to +120 °C.
Heat-resistant ball-bearing version: -30 °C to +300 °C, capacity reduction by 50 % at +300 °C
• The load capacities listed in the table refer to the following assignment of the wheel flange wheels to the rail profiles according to DIN 536 (crane rail standard):
SPKVS 50K–SPKVS 200K: A45
SPKVS 250K: A55
SPKVS 300K–SPKVS 400K A65
This text is machine translated.
Wheel of reinforced steel
Housing: Series BS
• Particularly robust steel welding construction
• Galvanically galvanized, yellow passivated, Cr6-free
Wheel: Series SPKVS
• Quenched steel, hardness 190–230 HB
Other properties:
• Chemical resistance to many aggressive media
• Temperature resistance:
Ball bearing version -20 °C to +120 °C.
Heat-resistant ball-bearing version: -30 °C to +300 °C, capacity reduction by 50 % at +300 °C
• The load capacities listed in the table refer to the following assignment of the wheel flange wheels to the rail profiles according to DIN 536 (crane rail standard):
SPKVS 50K–SPKVS 200K: A45
SPKVS 250K: A55
SPKVS 300K–SPKVS 400K A65
This text is machine translated.
