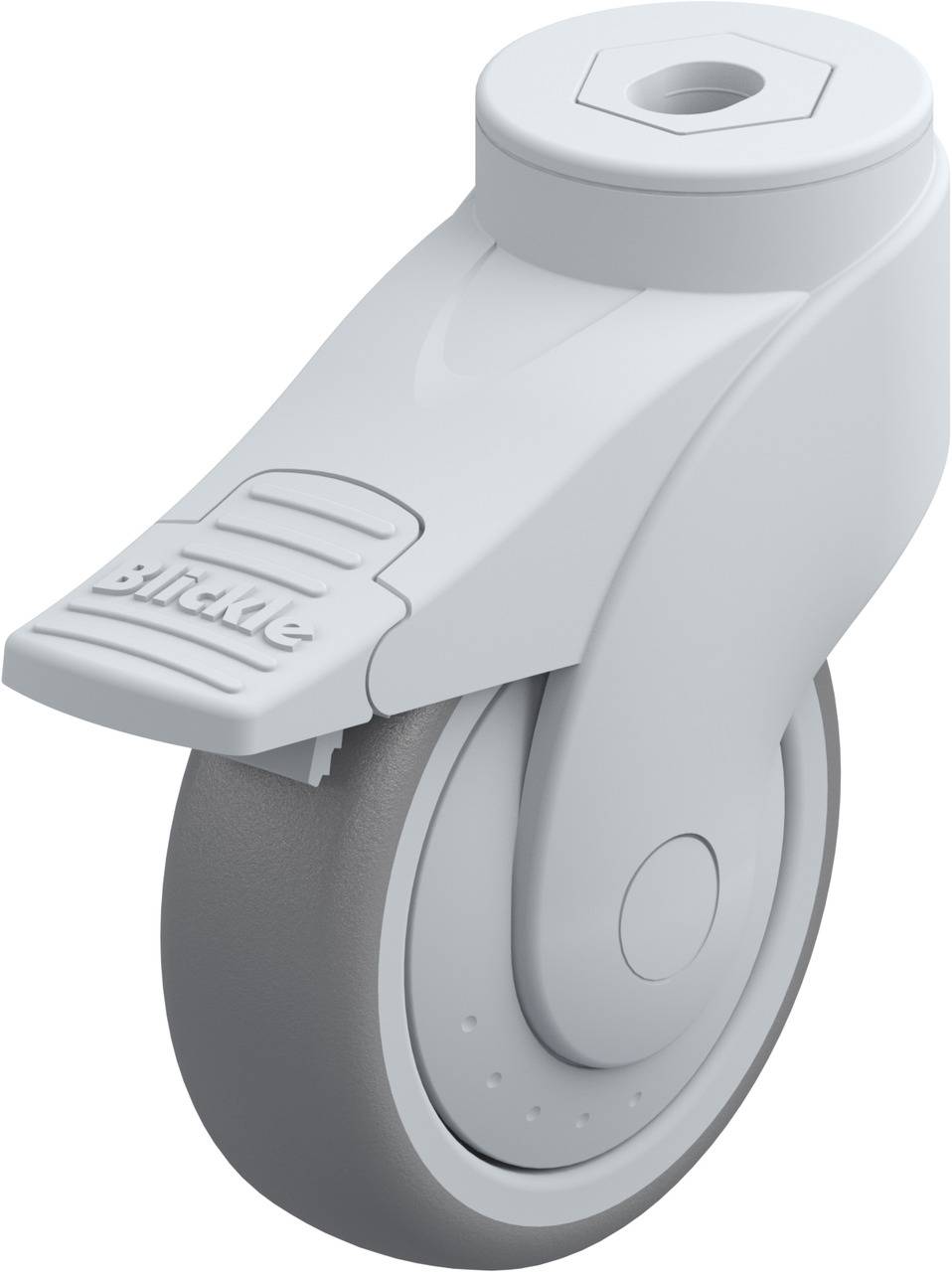

Blickle 744739 LWG-TPA 101KF-11-FI (LWG-TPA 101K-11-FI-FK) Swivel wheel with brake Wheel diameter: 100 mm Load capacity
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 10 Piece(s) available
Highlights & Details
100 mm Design-plastic-steering WAVE with stopper
- Precision grooved ball-bearing
- This text is machine translated.
Technical specifications
- Product type
Swivel wheel with brake
- Wheel Ø
100 mm
- Load capacity (max.)
100 kg
- Features
Rear opening
Brake
- Total height
135 mm
- Size
55 mm
- Wheel width
32 mm
- Bearing type
Ball bearing
- Material
Polyamide
Rubber
- Content
1 pc(s)
- Material (details)
Casing made of reinforced polyamide, wheels made from thermoplastic rubber
- Type
Steering wheel with reverse lock and stop-fix-Breaks
- Tyre width
32 mm
Documents & Downloads
Datasheet
Datasheet 887565 Blickle 744739 LWG-TPA 101KF-11-FI (LWG-TPA 101K-11-FI-FK) Swivel wheel with brake Wheel diameter: 100 mm Load capacity
User & Safety Instructions
User & Safety Instructions 887565 Blickle 744739 LWG-TPA 101KF-11-FI (LWG-TPA 101K-11-FI-FK) Swivel wheel with brake Wheel diameter: 100 mm Load capacity
Description
Blickle WAVE plastic guide roller, silver gray color, with stopper 'stop-fix',
Wheel with thermoplastic rubber tread, with polypropylene wheel body, with thread protection made of plastic, large
Housing: Series LWG
• High-quality polyamide 6, unbreakable
• Injection-molded, double-sided sealed deep groove ball bearings in rotating assembly
• Rear hole
• Colour silver gray RAL 7001
• Modern, attractive design
Wheel: Series TPA
• Tread: High-quality thermoplastic rubber elastomer (TPE), hardness 85 shore A, color gray, trackless, oil-containing
• Wheel body: High-quality polypropylene, break-proof, color silver gray RAL 7001
Other properties:
• Very high chemical resistance to many aggressive media
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
• Coating containing oil, contact discoloration possible for sensitive floors
This text is machine translated.
Wheel with thermoplastic rubber tread, with polypropylene wheel body, with thread protection made of plastic, large
Housing: Series LWG
• High-quality polyamide 6, unbreakable
• Injection-molded, double-sided sealed deep groove ball bearings in rotating assembly
• Rear hole
• Colour silver gray RAL 7001
• Modern, attractive design
Wheel: Series TPA
• Tread: High-quality thermoplastic rubber elastomer (TPE), hardness 85 shore A, color gray, trackless, oil-containing
• Wheel body: High-quality polypropylene, break-proof, color silver gray RAL 7001
Other properties:
• Very high chemical resistance to many aggressive media
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
• Coating containing oil, contact discoloration possible for sensitive floors
This text is machine translated.
Features
- Casing made of reinforced Polyamid with injected, double coated deep groove ball bearing in turntable
- With reverse lock Ø 11 mm
- Colour silver grey
- Less sound emission by optimal construction of casing.
- Modern, attractive Design
- Tread section made of thermo plastisc rubber
- Complete, 85° Shore A
- Wheels made from Polypropylene
- With ball bearings.
