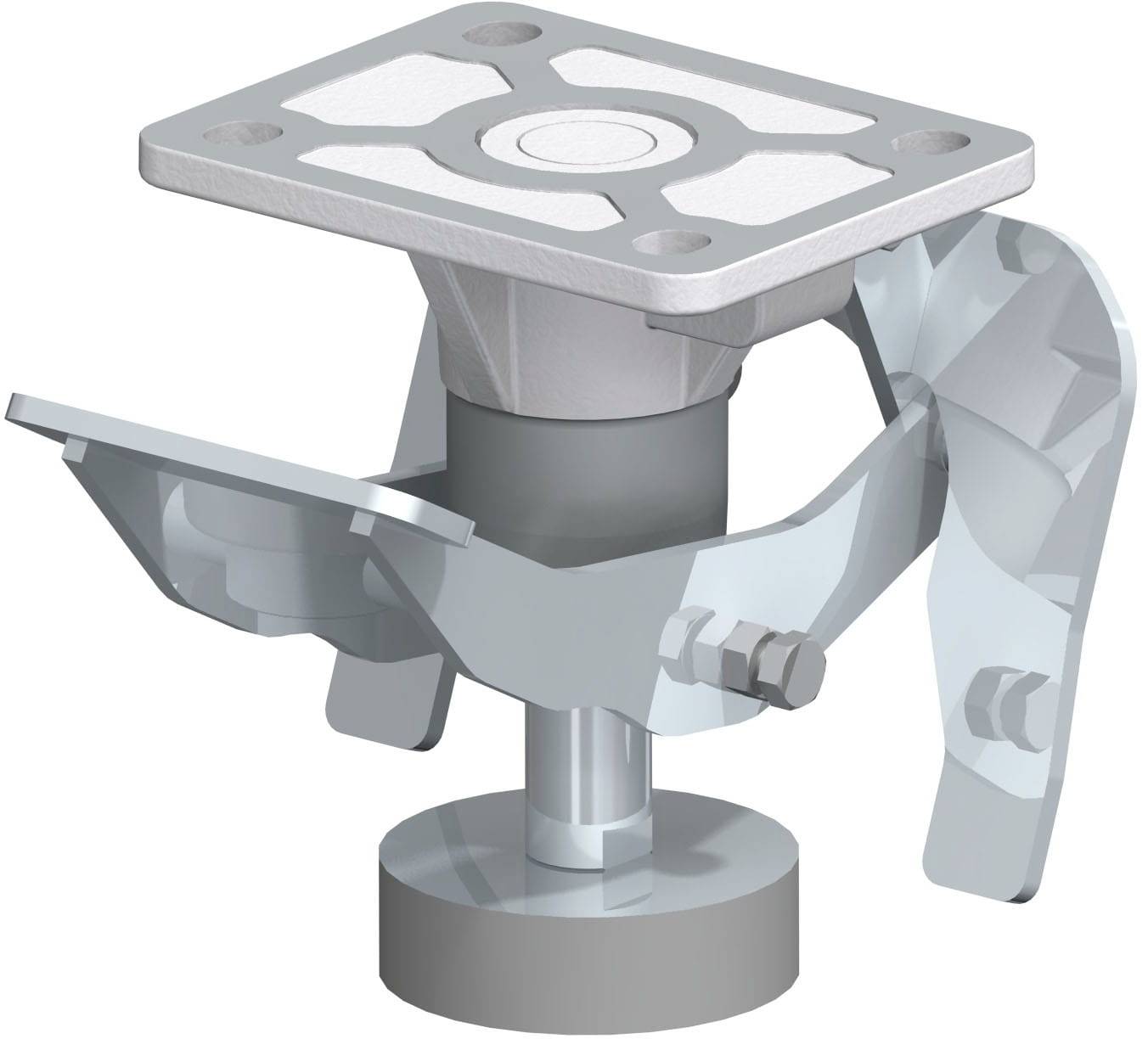

Blickle 755838 WH 160 Jack Load capacity (max.): 500 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Jack
- Load capacity (max.)
500 kg
- Total height
166 mm
- Size
140 x 110 mm
- Content
1 pc(s)
- Weight
4.02 kg
Documents & Downloads
Datasheet
Datasheet 3058874 Blickle 755838 WH 160 Jack Load capacity (max.): 500 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058874 Blickle 755838 WH 160 Jack Load capacity (max.): 500 kg 1 pc(s)
Description
Jacks
• For lifting transport equipment in stationary position
• Direct attachment to the transport device

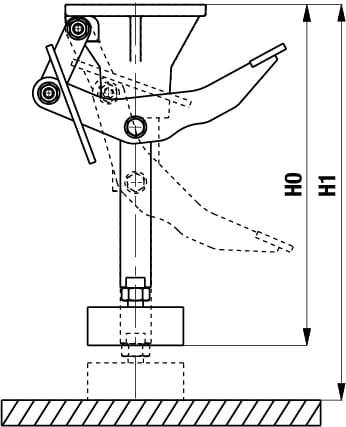

• Optimum use when the overall height of the applied jack (H1) is 5 mm greater than the total height of the rollers
• Lifting capacity between 150–250 kg depending on operator body weight
• Vertical load on the raised jack must not exceed 500 kg
This text is machine translated.
• For lifting transport equipment in stationary position
• Direct attachment to the transport device
• Optimum use when the overall height of the applied jack (H1) is 5 mm greater than the total height of the rollers
• Lifting capacity between 150–250 kg depending on operator body weight
• Vertical load on the raised jack must not exceed 500 kg
This text is machine translated.
