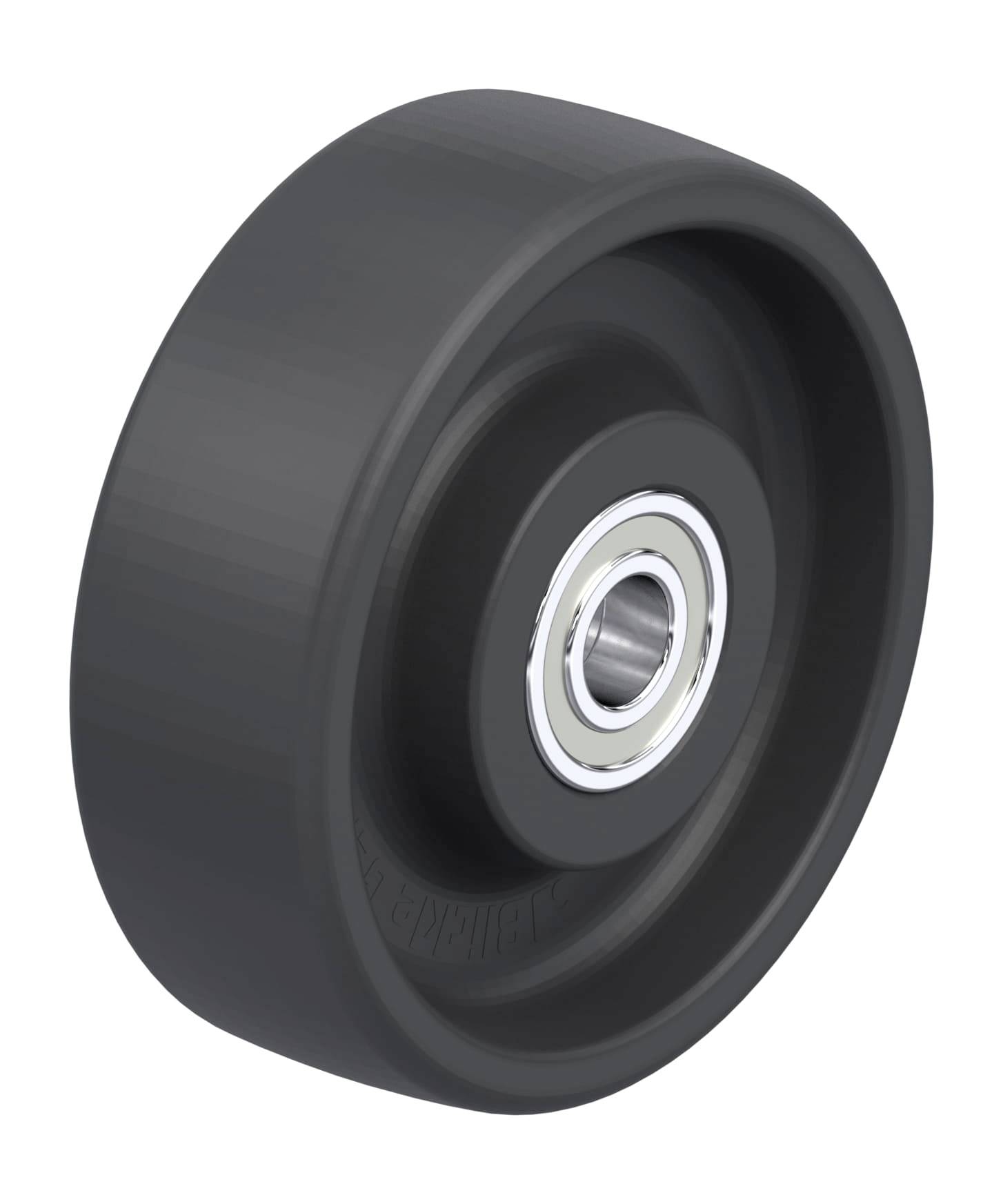

Blickle 760681 POHI 150/20HXK Thermoplastic wheel Wheel diameter: 150 mm Load capacity (max.): 500 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 500 kg
- Material wheel body: Highly heat resistant thermoplastic
- Material run lining: Plastic
- Colour run lining: Dark gray
- Colour wheel body: Dark gray
- Temperature resistance up to 250 °C
- Temperature resistance min -25 oC
- Coating hardness 85 shore D.
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat-resistant: Yes
- Autoclave compatible: Yes
- Resistant to hydrolysis: No.
- Product type
Thermoplastic wheel
- Wheel Ø
150 mm
- Load capacity (max.)
500 kg
- Axle hole diameter
20 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Plastic
- Factory colour
Dark grey
- Content
1 pc(s)
- Hub length
60 mm
- Weight
0.85 kg
Documents & Downloads
Datasheet
Datasheet 3058795 Blickle 760681 POHI 150/20HXK Thermoplastic wheel Wheel diameter: 150 mm Load capacity (max.): 500 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058795 Blickle 760681 POHI 150/20HXK Thermoplastic wheel Wheel diameter: 150 mm Load capacity (max.): 500 kg 1 pc(s)
Description
Thermoplastic wheel Blickle templine® performance, heat resistant
Wheel:
• High heat resistant thermoplastic, unbreakable, hard 85 shore D.
• Very low roll and swivel resistance
• Smooth running on smooth floors
• very abrasion-resistant
• Colour dark gray
• Autoclave-compatible (plain bearing and version with stainless ball bearing with heat-resistant grease "-HXK")
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +250 °C
• Oven temperature up to +300 °C for a short time, wheel temperature must not exceed +250 °C.
This text is machine translated.
Wheel:
• High heat resistant thermoplastic, unbreakable, hard 85 shore D.
• Very low roll and swivel resistance
• Smooth running on smooth floors
• very abrasion-resistant
• Colour dark gray
• Autoclave-compatible (plain bearing and version with stainless ball bearing with heat-resistant grease "-HXK")
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +250 °C
• Oven temperature up to +300 °C for a short time, wheel temperature must not exceed +250 °C.
