Blickle 763209 LKDG-PUA 100G-RA Plastic Twin wheelswivel caster Wheel diameter: 100 mm Load capacity (max.): 110 kg 1 pc
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 3 km/h: 110 kg
- Material wheel body: High-quality polyamide 6
- Material: Polyurethane lining
- Colour: Running coating black
- Colour wheel body: Light gray RAL 7035
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Fastening method: Threaded pin
- Accompanying steering roller: LKDG-PUA 100g
- Product type
Plastic Twin wheelswivel caster
- Wheel Ø
100 mm
- Load capacity (max.)
110 kg
- Total height
121 mm
- Bearing type
Plain bearing
- Material
Polyurethane
- Factory colour
Black
- Content
1 pc(s)
- Weight
0.423 kg
Documents & Downloads
Datasheet
Datasheet 3054859 Blickle 763209 LKDG-PUA 100G-RA Plastic Twin wheelswivel caster Wheel diameter: 100 mm Load capacity (max.): 110 kg 1 pc
User & Safety Instructions
User & Safety Instructions 3054859 Blickle 763209 LKDG-PUA 100G-RA Plastic Twin wheelswivel caster Wheel diameter: 100 mm Load capacity (max.): 110 kg 1 pc
Description

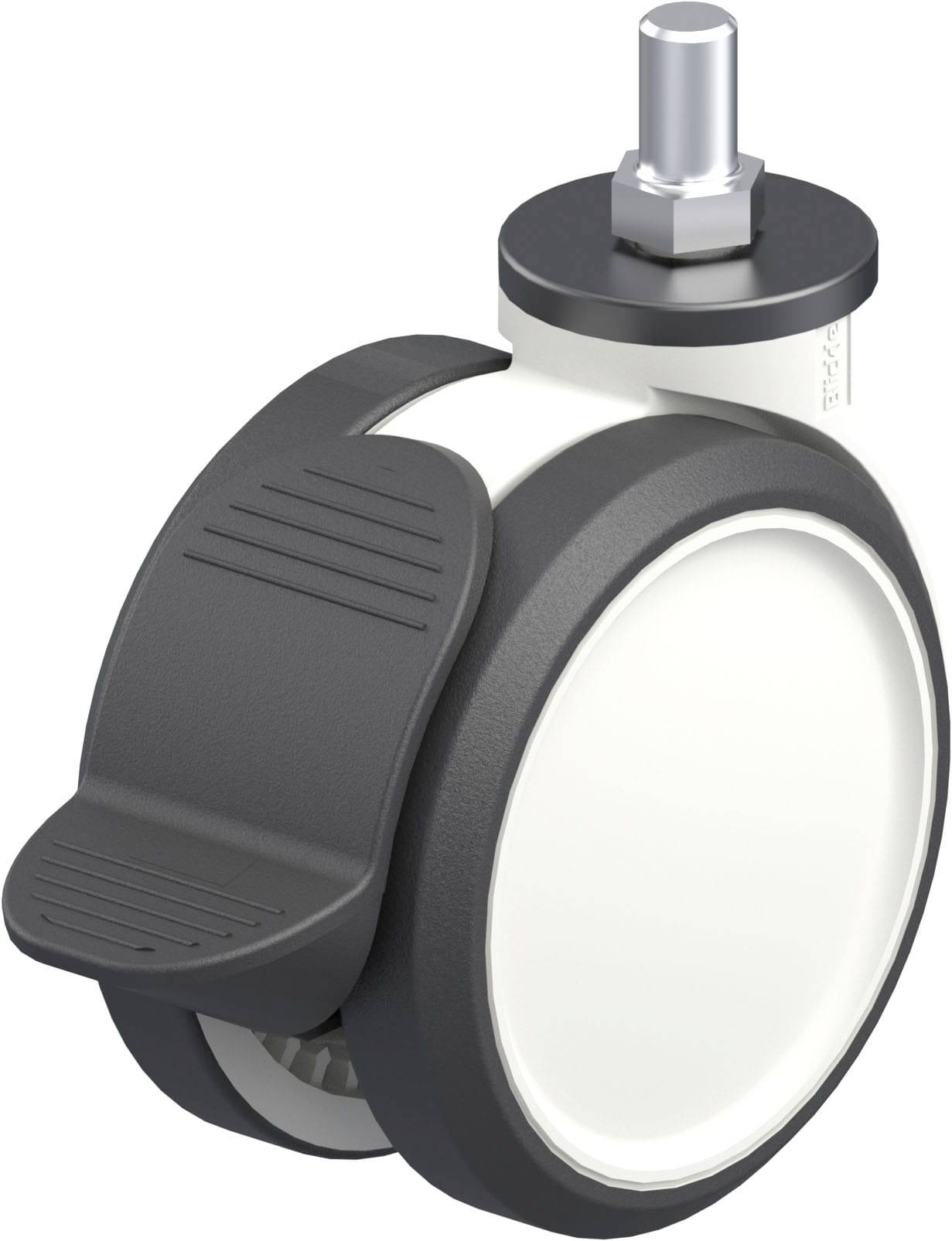

Plastic double castor, light gray, with locking device 'Radstop',
Wheel with thermoplastic polyurethane wood plank, with polyamide wheel body
Housing: Series LKDG
• High-quality polyamide 6, unbreakable
• High quality plastic sliding bearings in rotating assembly
• Colour light gray RAL 7035
Wheel: PUA series
• Coating: High-quality thermoplastic polyurethane (TPU), hardness 92 shore A, color black, trackless, contact-free
• Wheel body: High-quality polyamide 6, break-proof, color light gray RAL 7035
Other properties:
• Very high chemical resistance to many aggressive media
• Temperature resistance: --20° C to +70°C, short-term to +80 °C, reduced load capacity above +30 °C.
This text is machine translated.
Wheel with thermoplastic polyurethane wood plank, with polyamide wheel body
Housing: Series LKDG
• High-quality polyamide 6, unbreakable
• High quality plastic sliding bearings in rotating assembly
• Colour light gray RAL 7035
Wheel: PUA series
• Coating: High-quality thermoplastic polyurethane (TPU), hardness 92 shore A, color black, trackless, contact-free
• Wheel body: High-quality polyamide 6, break-proof, color light gray RAL 7035
Other properties:
• Very high chemical resistance to many aggressive media
• Temperature resistance: --20° C to +70°C, short-term to +80 °C, reduced load capacity above +30 °C.
