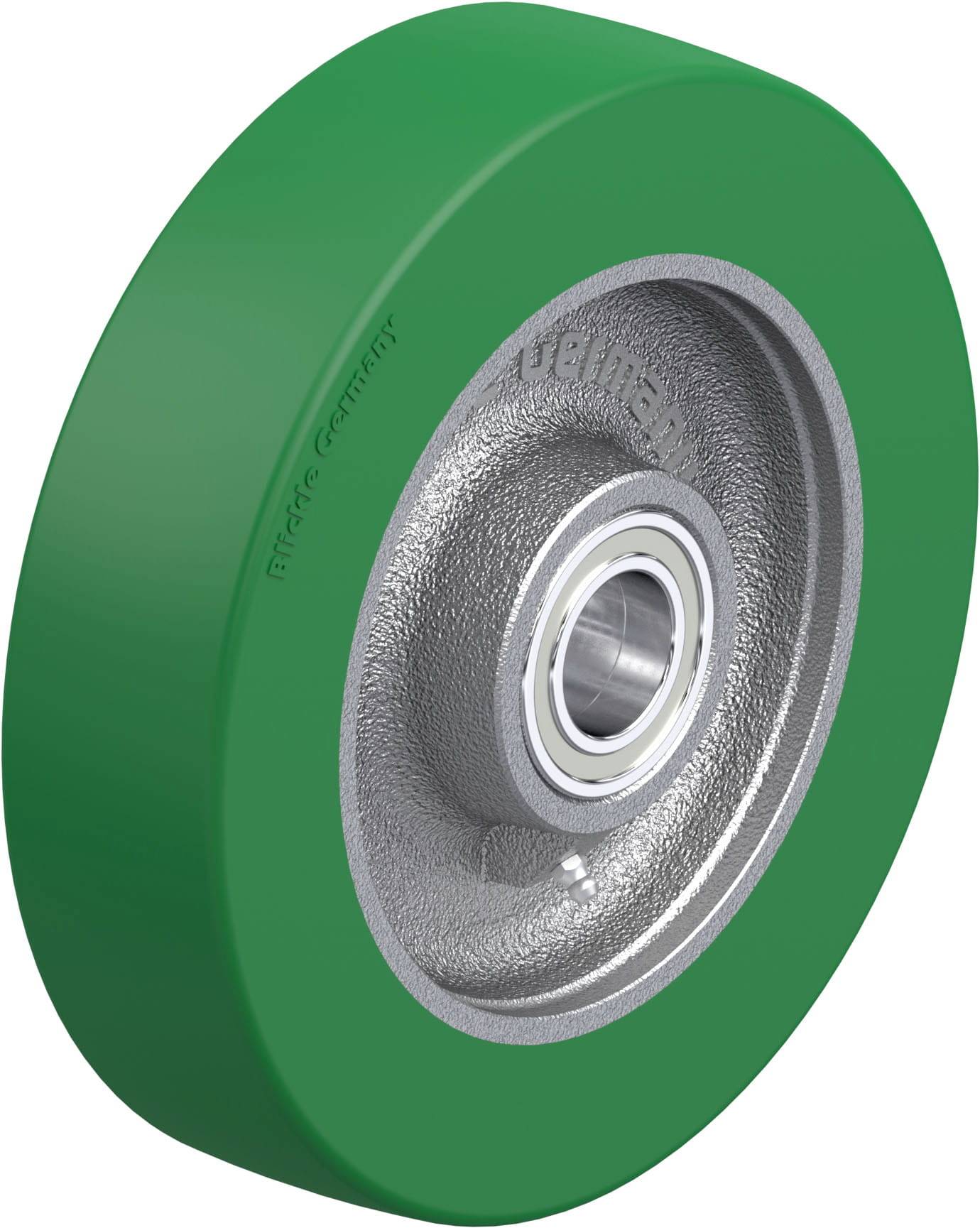

Blickle 842015 GST 250/35K Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1200 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 1200 kg
- Material wheel body: Robust gray cast iron
- Material: Polyurethane lining
- Colour: Run lining: Green
- Colour wheel body: Silver
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 75 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Resistant to hydrolysis: No.
- Product type
Heavy duty caster
- Wheel Ø
250 mm
- Load capacity (max.)
1200 kg
- Axle hole diameter
35 mm
- Wheel width
60 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Green
- Content
1 pc(s)
- Hub length
70 mm
- Weight
7.031 kg
Documents & Downloads
Datasheet
Datasheet 3051287 Blickle 842015 GST 250/35K Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1200 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051287 Blickle 842015 GST 250/35K Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1200 kg 1 pc(s)
Description
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with cast wheel body
Coating:
• High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A.
• Very high driving comfort due to particularly thick, elastic tread
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• very abrasion-resistant
• High cutting and tear resistance
• Green, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Robust cast iron
• From wheel-Ø 160 mm with lubricating nipple
Painted •, color silver
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
