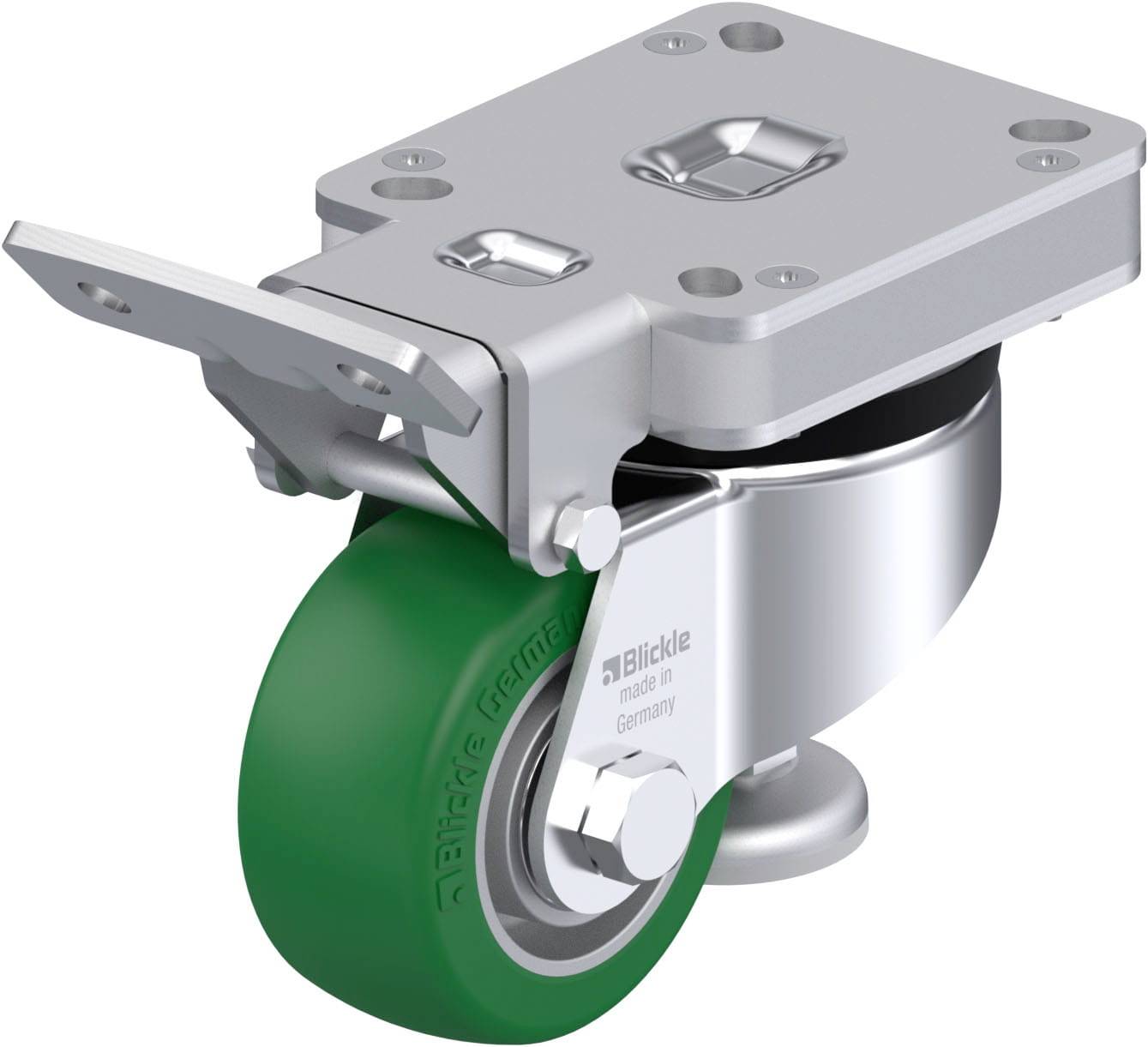

Blickle 884591 HRLK-ALST 82K Leveling caster Wheel diameter: 80 mm Load capacity (max.): 230 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 230 kg
- Material wheel body: Aluminum die casting
- Material: Polyurethane lining
- Colour: Run lining: Green
- Colour wheel body: Silver gray
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 75 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated wheel: ALST 82/15K
- Product type
Leveling caster
- Wheel Ø
80 mm
- Load capacity (max.)
230 kg
- Total height
120 mm
- Size
100 x 85 mm
- Wheel width
40 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Green
- Content
1 pc(s)
- Weight
2.312 kg
Documents & Downloads
Datasheet
Datasheet 3051336 Blickle 884591 HRLK-ALST 82K Leveling caster Wheel diameter: 80 mm Load capacity (max.): 230 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051336 Blickle 884591 HRLK-ALST 82K Leveling caster Wheel diameter: 80 mm Load capacity (max.): 230 kg 1 pc(s)
Description
Lifting roller with fixed operating lever and integrated fixing foot, with mounting plate
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body
Housing: Series HRLK
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
• Steel lock base with rubber support
• Height adjustment using actuating lever
Wheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color green, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body
Housing: Series HRLK
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
• Steel lock base with rubber support
• Height adjustment using actuating lever
Wheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color green, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
