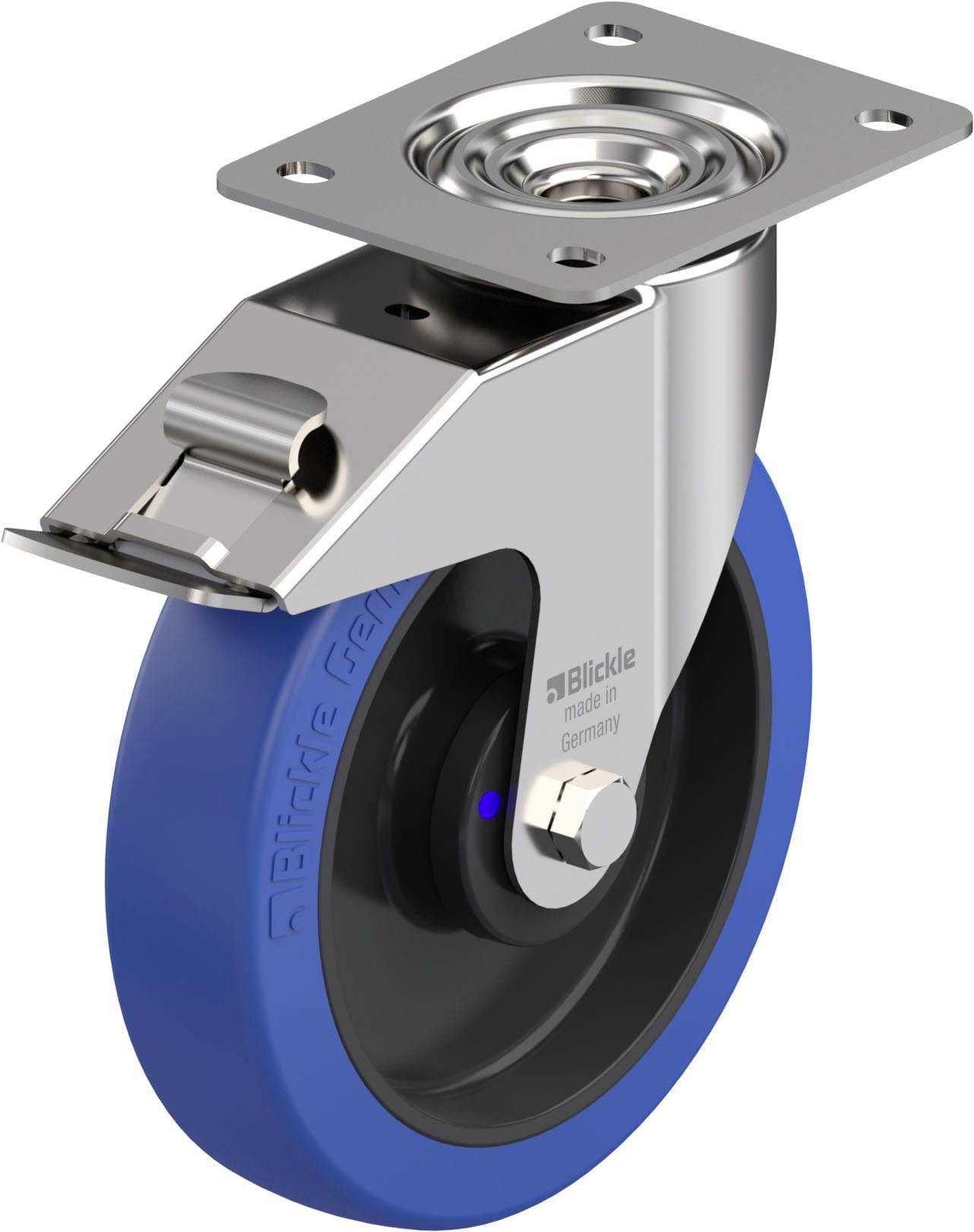

Blickle 901238 LEX-POBS 200XKA-FI Stainless steel swivel wheel Wheel diameter: 200 mm Load capacity (max.): 300 kg 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 300 kg
- Material wheel body: High-quality polyamide 6
- Material: Polyurethane lining
- Colour: Running lining: Blue
- Colour wheel body: Black
- Temperature resistance up to 70 °C
- Temperature resistance min -25 oC
- Coating hardness 75 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: Yes
- Mounting type: Screw-on plate

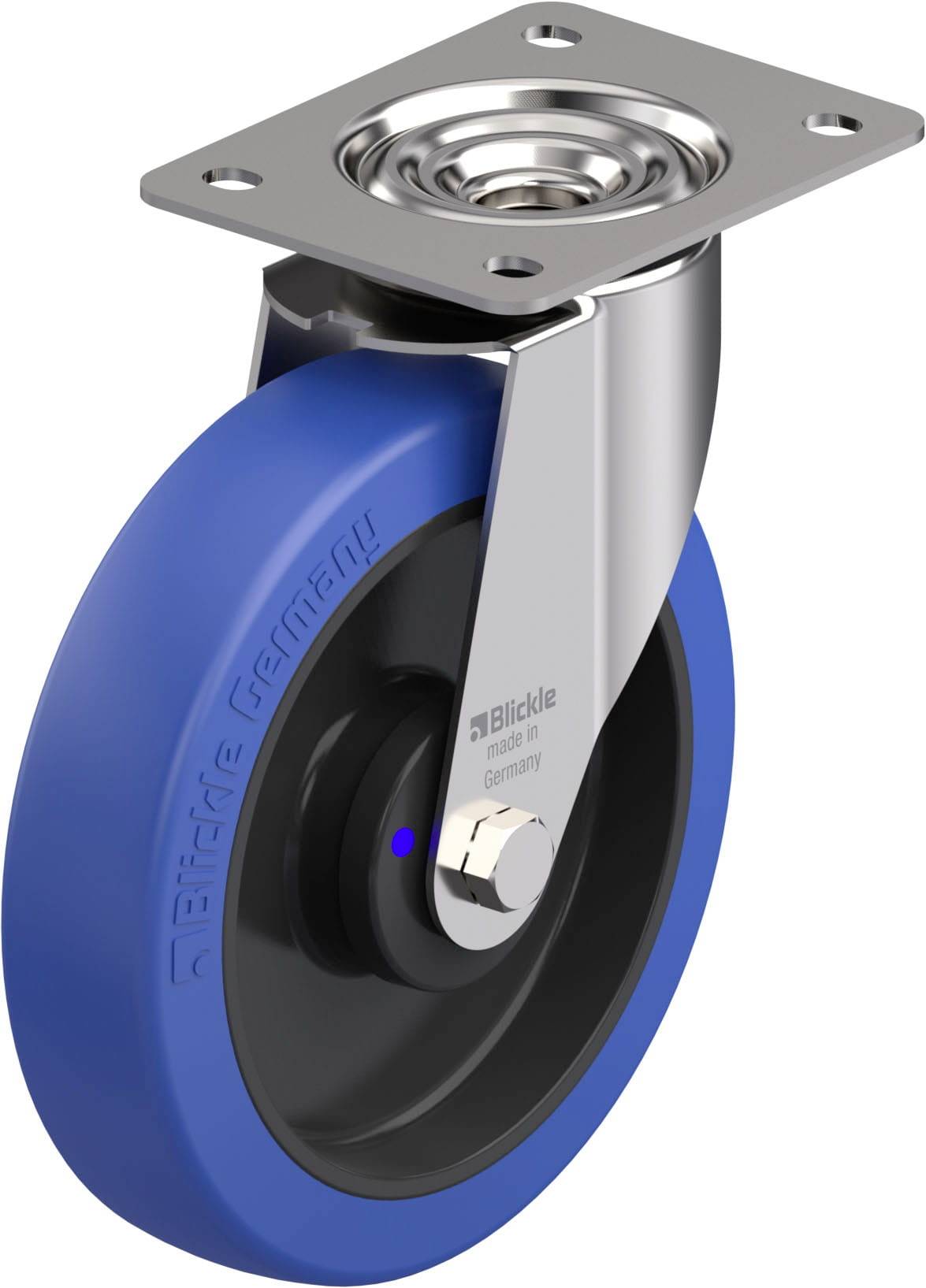

- Accompanying steering roller: LEX-POBS 200XKA
- Associated wheel: POBS 200/12XKA
- Associated fixed roller: BX-POBS 200XKA
- Product type
Stainless steel swivel wheel
- Wheel Ø
200 mm
- Load capacity (max.)
300 kg

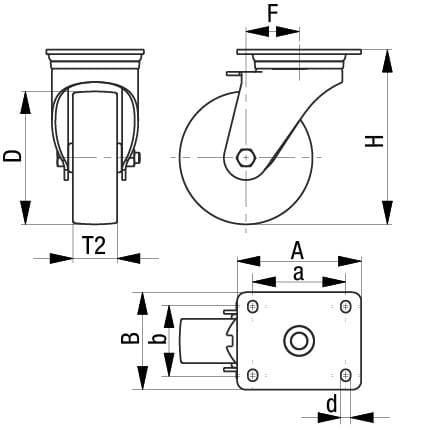

- Total height
235 mm
- Size
140 x 110 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Blue
- Content
1 pc(s)
- Weight
2.5 kg
Documents & Downloads
Datasheet
Datasheet 3052392 Blickle 901238 LEX-POBS 200XKA-FI Stainless steel swivel wheel Wheel diameter: 200 mm Load capacity (max.): 300 kg 1 pc(
User & Safety Instructions
User & Safety Instructions 3052392 Blickle 901238 LEX-POBS 200XKA-FI Stainless steel swivel wheel Wheel diameter: 200 mm Load capacity (max.): 300 kg 1 pc(
Description
Stainless steel steering wheel with screw plate, with 'stop-fix' stopper,
Heavy-duty wheel with polyurethane tread Blickle Bethane® soft, with polyamide wheel body, with thread protection made of plastic, small
Housing: Series LEX
• High-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, slide-ground
• All individual parts included Axle material is rust-proof

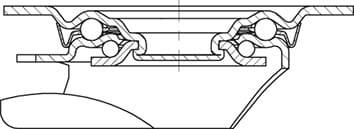

• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series POBS
• Tread: High-quality polyurethane elastomer Blickle Besthane® soft, hardness 75 shore A, color blue, trackless, non-discoloring, very low rolling resistance, high dynamic load capacity, corrosion- and hydrolysis-resistant
• Wheel body: High-quality polyamide 6, break-proof, color black
Other properties:
• With thread protection made of plastic, small
• corrosion and hydrolysis resistant
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity at over +35 °C.
