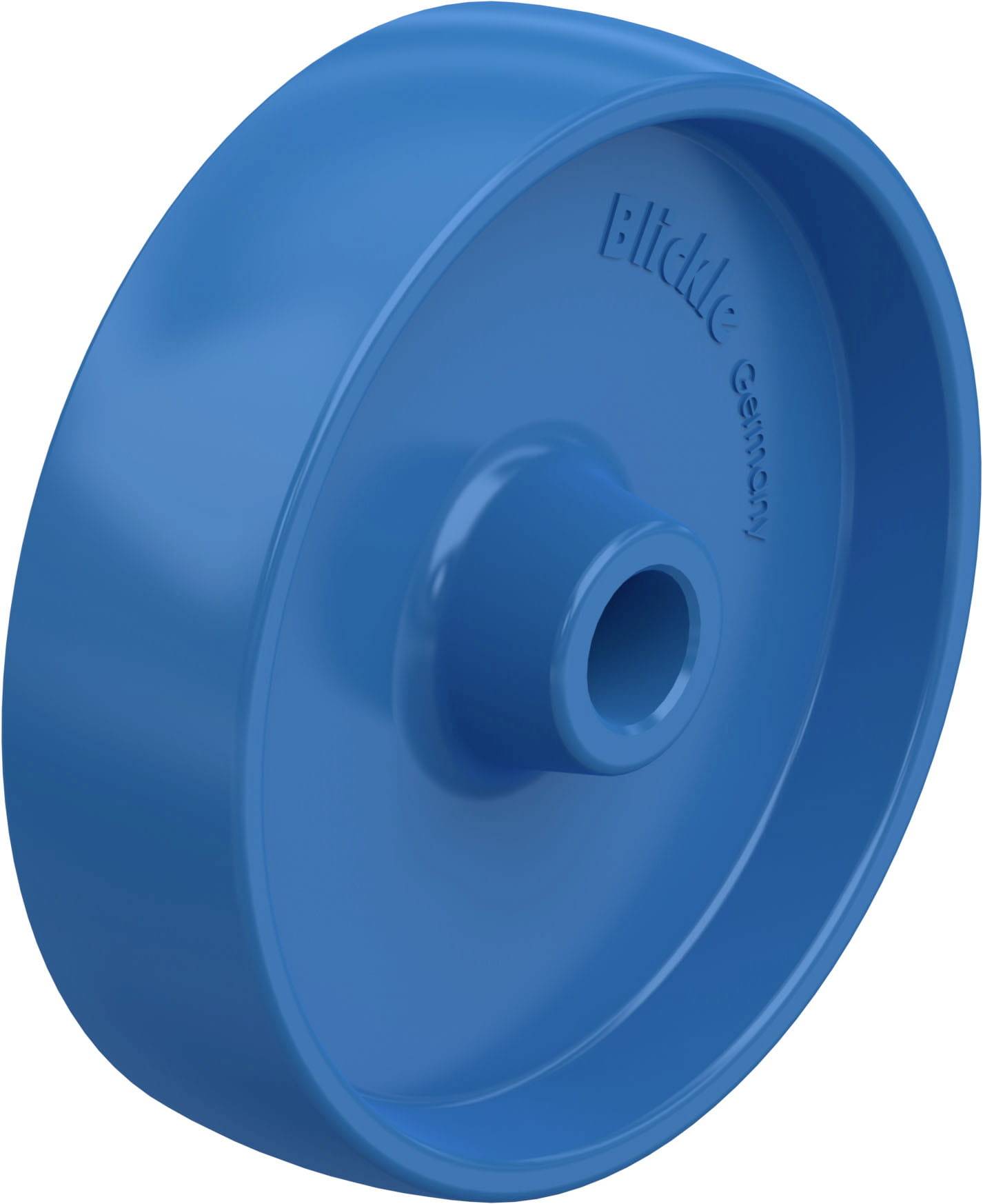

Blickle 902705 PO 151/20G-C5017 Wheel Wheel diameter: 150 mm Load capacity (max.): 350 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 350 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Plastic
- Colour: Running lining: Blue
- Colour wheel body: Blue
- Temperature resistance up to 80 °C
- Temperature resistance min -25 oC
- Coating hardness 70 shore D.
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
150 mm
- Load capacity (max.)
350 kg
- Axle hole diameter
20 mm
- Wheel width
40 mm
- Bearing type
Plain bearing
- Material
Plastic
- Factory colour
Blue
- Content
1 pc(s)
- Hub length
45 mm
- Weight
0.314 kg
Documents & Downloads
Datasheet
Datasheet 3058704 Blickle 902705 PO 151/20G-C5017 Wheel Wheel diameter: 150 mm Load capacity (max.): 350 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058704 Blickle 902705 PO 151/20G-C5017 Wheel Wheel diameter: 150 mm Load capacity (max.): 350 kg 1 pc(s)
Description
Wheels made from polyamide, blue color
Wheel:
• High-quality polyamide 6, unbreakable, hardness 70 shore D.
• Very low roll and swivel resistance
• Smooth running on smooth floors
• very abrasion-resistant
• Colour blue
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
