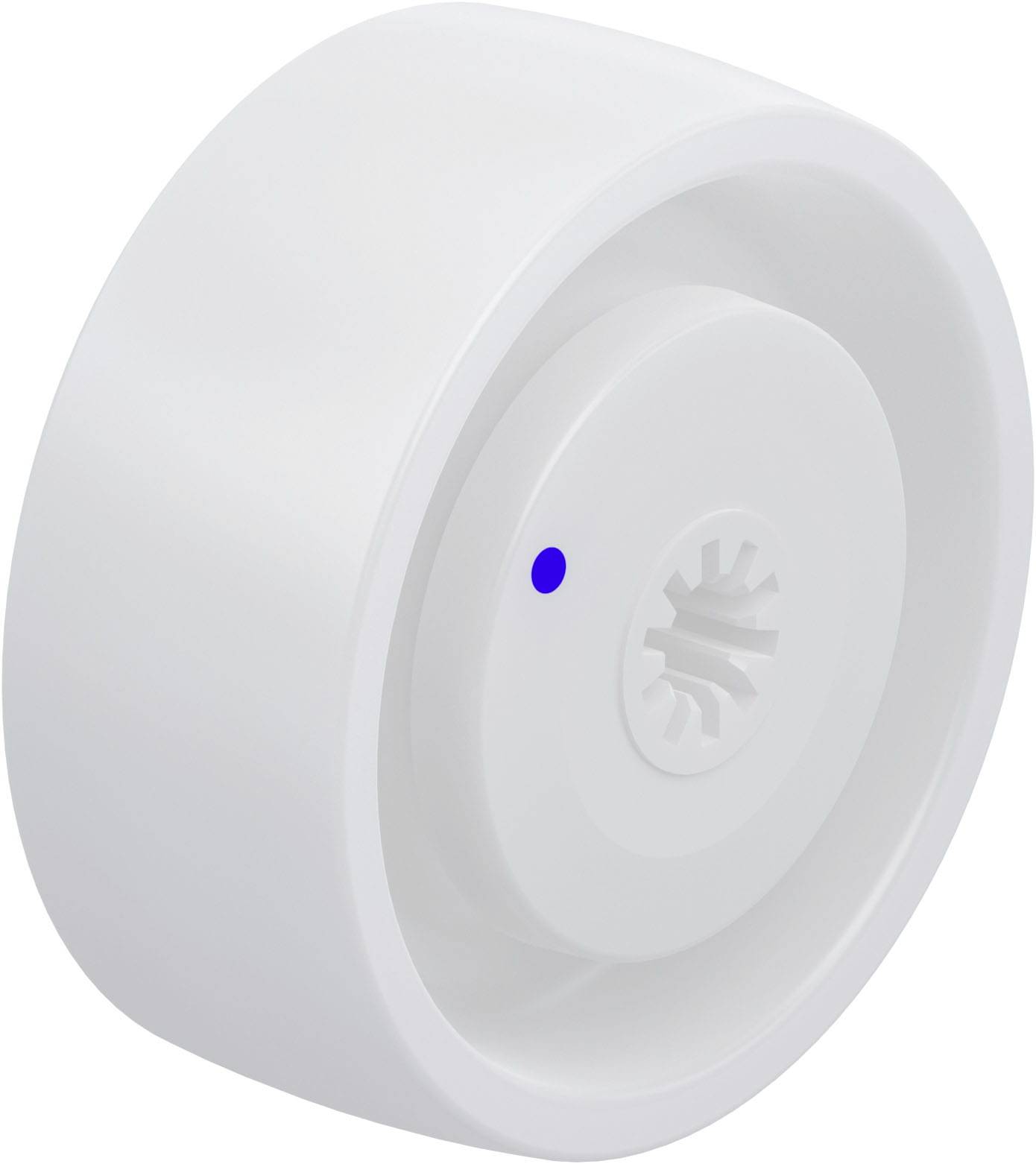

Blickle 902940 PO 80/8XKA Wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 220 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Plastic
- Colour: Carpet, natural-white
- Colour wheel body: Natural white
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 70 shore D.
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
80 mm
- Load capacity (max.)
220 kg
- Axle hole diameter
8 mm
- Wheel width
32 mm
- Bearing type
Ball bearing
- Material
Plastic
- Factory colour
Natural white
- Content
1 pc(s)
- Hub length
36 mm
- Weight
0.141 kg
Documents & Downloads
Datasheet
Datasheet 3058719 Blickle 902940 PO 80/8XKA Wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058719 Blickle 902940 PO 80/8XKA Wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
Description
Wheel made of polyamide, with synthetic thread protection, small
Wheel:
• High-quality polyamide 6, unbreakable, hardness 70 shore D.
• Very low roll and swivel resistance
• Smooth running on smooth floors
• very abrasion-resistant
• Colour natural-white
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +80 ° C, reduced load capacity at over +35 °C.
