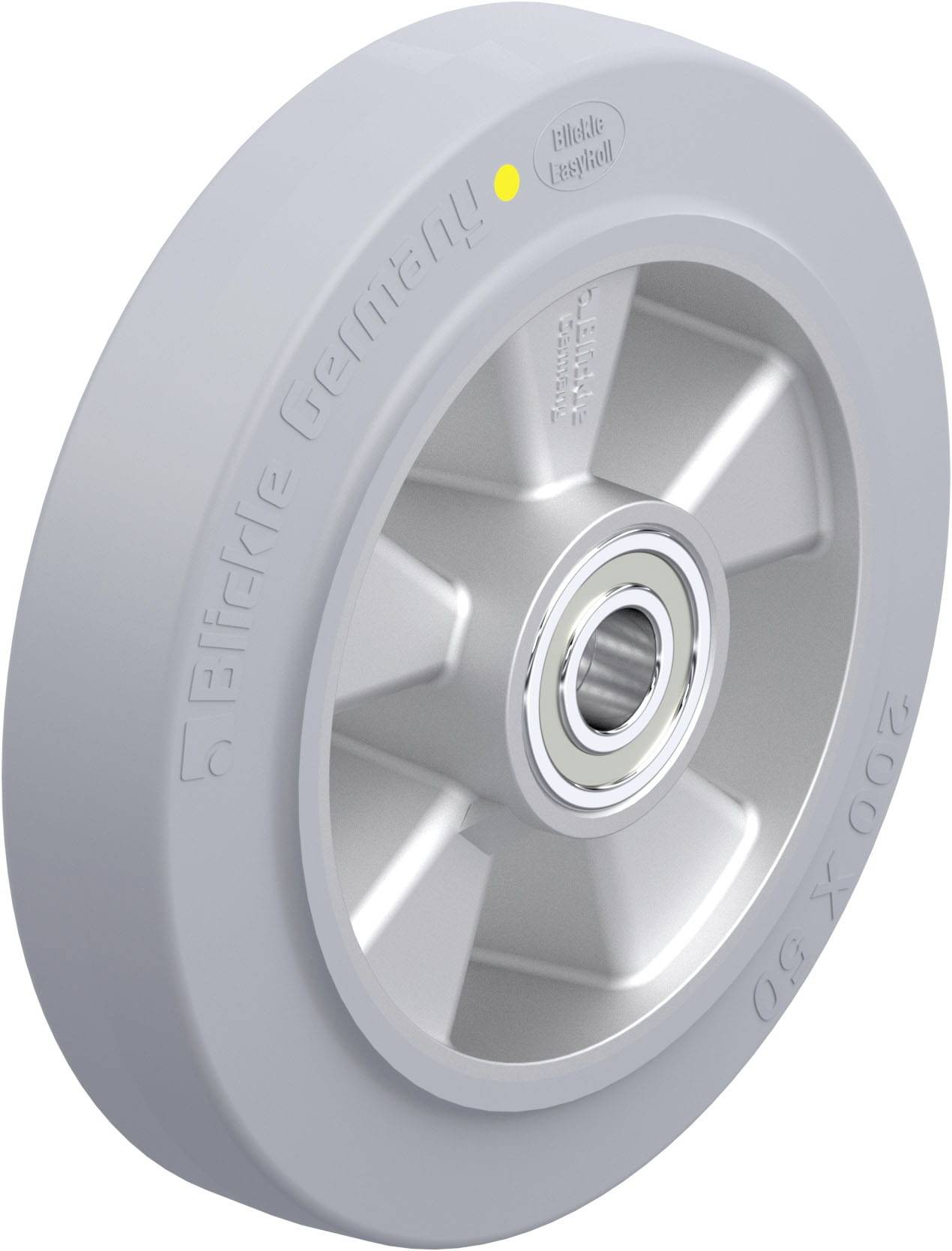

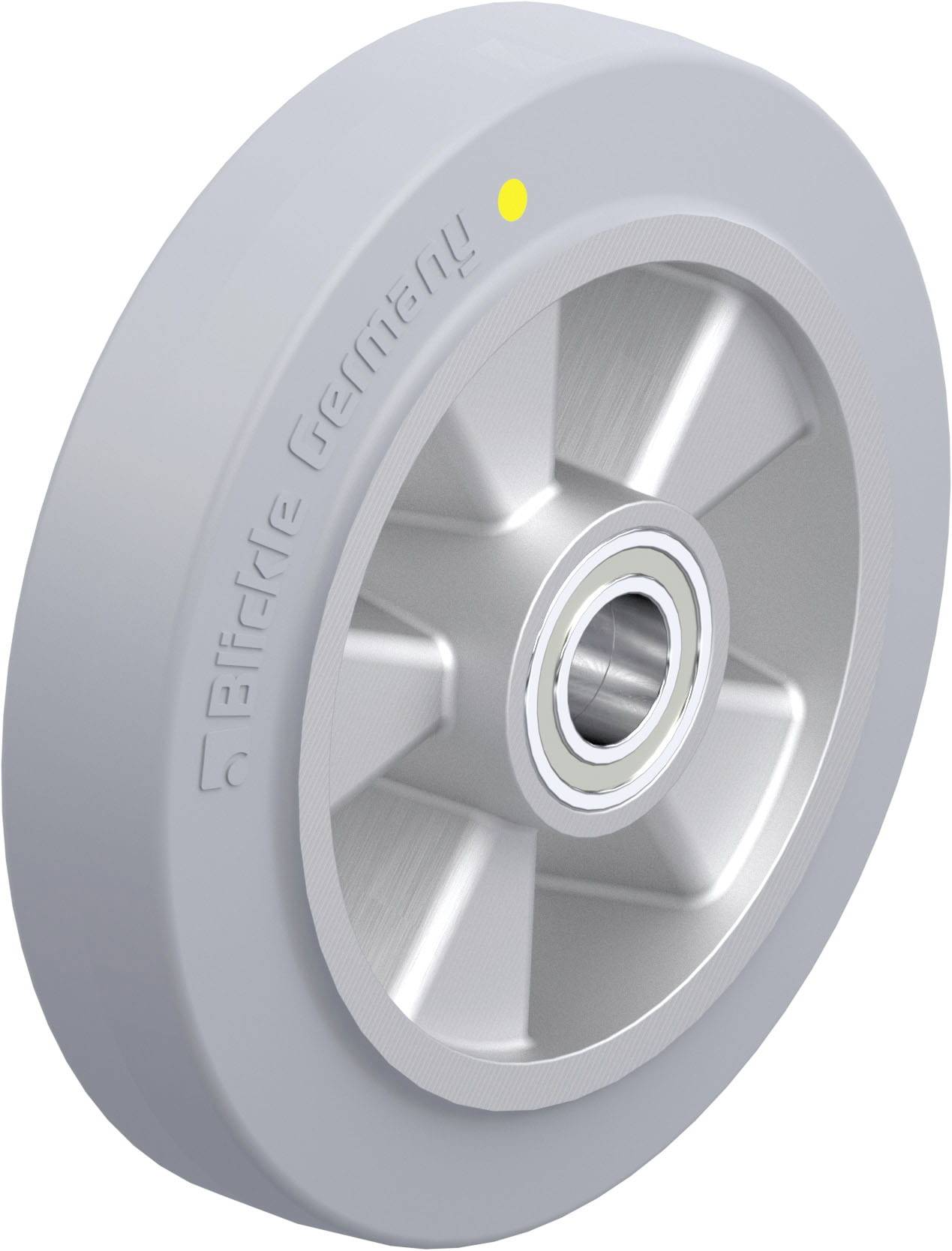

Blickle 911573 ALEV 200/20K-SG-AS Heavy duty caster Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 450 kg
- Material wheel body: Aluminum die casting
- Material run lining: Rubber
- Colour run lining: Grey
- Colour wheel body: Silver gray
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 65 Shore A
- Without a trace: Yes
- Anti-static: Yes
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Heavy duty caster
- Wheel Ø
200 mm
- Load capacity (max.)
450 kg
- Axle hole diameter
20 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Rubber
- Factory colour
Grey
- Content
1 pc(s)
- Hub length
60 mm
- Weight
1.592 kg
Documents & Downloads
Datasheet
Datasheet 3049946 Blickle 911573 ALEV 200/20K-SG-AS Heavy duty caster Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3049946 Blickle 911573 ALEV 200/20K-SG-AS Heavy duty caster Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
Description
Heavy-duty wheel with elastic solid tires 'Blickle Easy Roll', with aluminum wheel body, trackless gray, anti-static
Tyres:
• High-quality elastic solid rubber "Blickle EasyRoll" in light running quality, hardness 65 shore A
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• Colour gray, trackless
• Vulcanized on the wheel body
Wheel body:
• Diecast aluminum
Other properties:
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +60 °C.
• Electrical leakage (ohmic resistance) ≤ 107 Ω
This text is machine translated.
