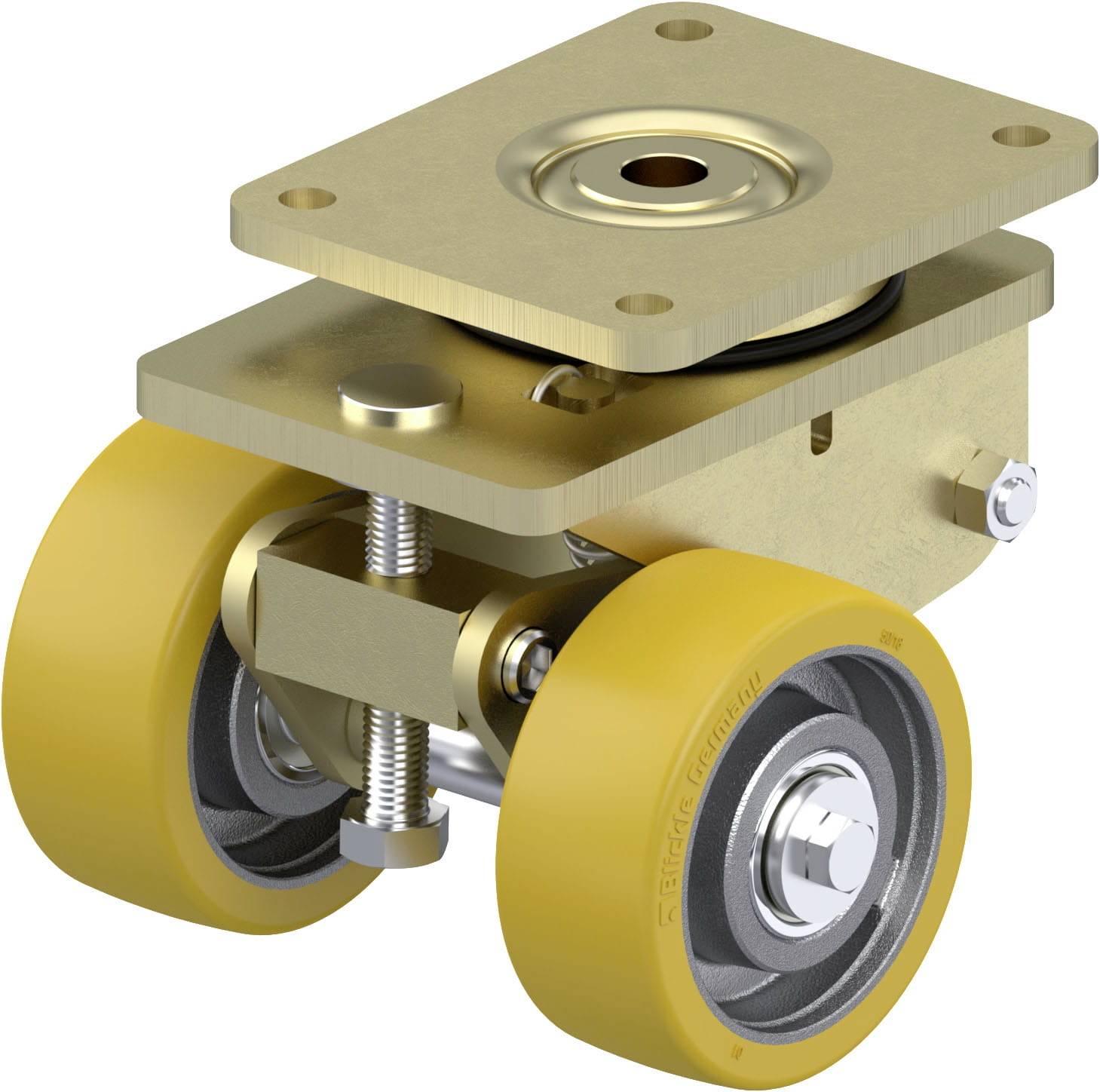

Blickle 912086 HRLSD-GTH 127K Leveling caster Wheel diameter: 125 mm Load capacity (max.): 1300 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 1300 kg
- Material wheel body: Robust gray cast iron
- Material: Polyurethane lining
- Colour: Running surface: Light brown
- Colour wheel body: Silver
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated wheel: GTH 127/20-50K
- Product type
Leveling caster
- Wheel Ø
125 mm
- Load capacity (max.)
1300 kg
- Total height
170 mm
- Size
175 x 140 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Light brown
- Content
1 pc(s)
- Weight
14.728 kg
Documents & Downloads
Datasheet
Datasheet 3051355 Blickle 912086 HRLSD-GTH 127K Leveling caster Wheel diameter: 125 mm Load capacity (max.): 1300 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051355 Blickle 912086 HRLSD-GTH 127K Leveling caster Wheel diameter: 125 mm Load capacity (max.): 1300 kg 1 pc(s)
Description
Lifting roller with integrated locking base and mounting plate, steel-welded version,
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with cast wheel body
Housing: Series HRLSD
• Solid steel welding construction, galvanized galvanically, yellow passivated, Cr6-free
• Axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the rotating collar
• dust and splash proof
• Welded-in guide sleeve for a very stable securing base

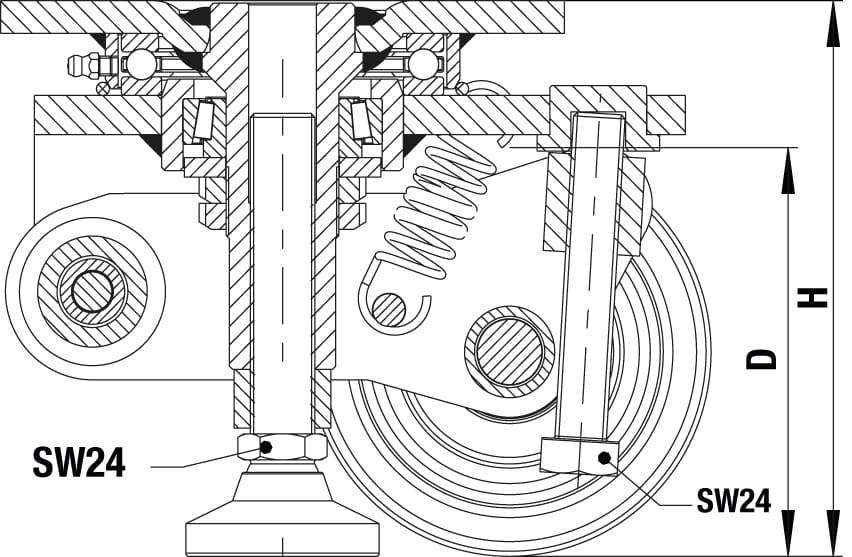

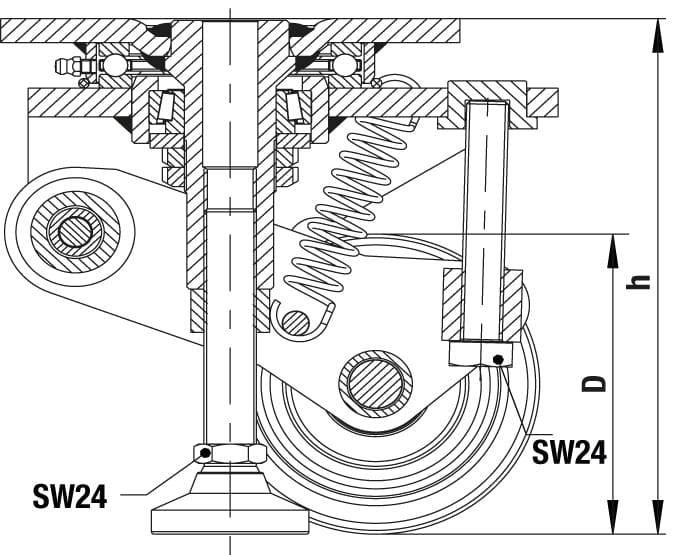

• Levelling of the wheels and the locking foot using the fork wrench (SW24)
• Lubrication nipple
Wheel: Series GTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Robust cast iron, painted, color silver
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• The ground clearance of the foot applies with the locking foot screwed in and the leveling screw screwed in
