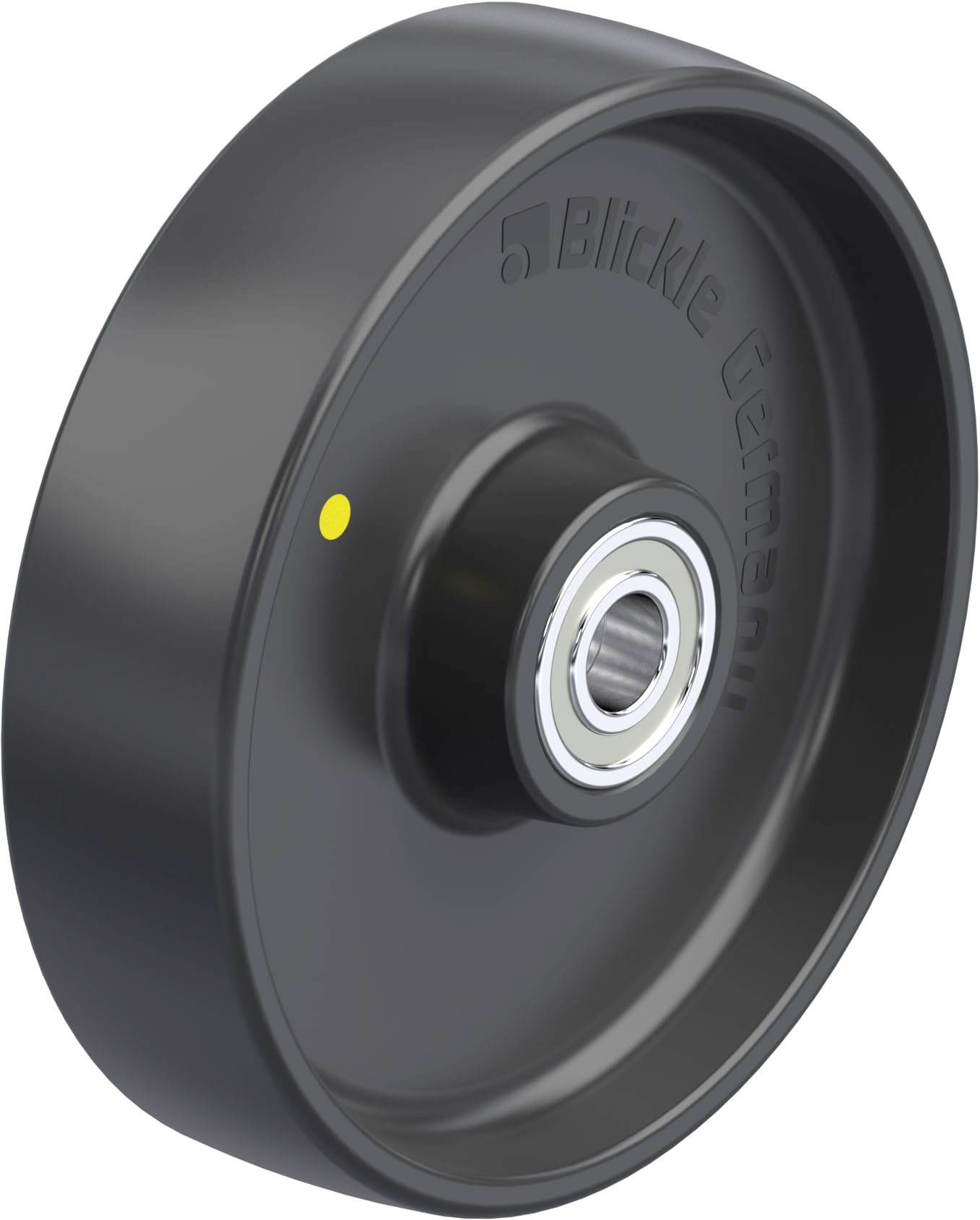

Blickle 913140 PP 200/20K-EL Wheel Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 450 kg
- Material wheel body: High-quality polypropylene
- Material run lining: Plastic
- Colour: Running coating black
- Colour wheel body: Black
- Temperature resistance up to 60 °C
- Temperature resistance min -20 oC
- Coating hardness 60 shore D.
- Without a trace: No.
- Anti-static: No.
- Electrically conductive: Yes
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
200 mm
- Load capacity (max.)
450 kg
- Axle hole diameter
20 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Plastic
- Factory colour
Black
- Content
1 pc(s)
- Hub length
60 mm
- Weight
0.852 kg
Documents & Downloads
Datasheet
Datasheet 3058842 Blickle 913140 PP 200/20K-EL Wheel Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058842 Blickle 913140 PP 200/20K-EL Wheel Wheel diameter: 200 mm Load capacity (max.): 450 kg 1 pc(s)
Description
Wheels made from Polypropylene, electrically conductive
Wheel:
• High-quality polypropylene, break-proof, hardness 60 shore D.
• Low roll and swivel resistance
• Colour black
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media
• Resistance to temperature: -20 °C to +60°C, reduced load capacity above +30 °C.
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
