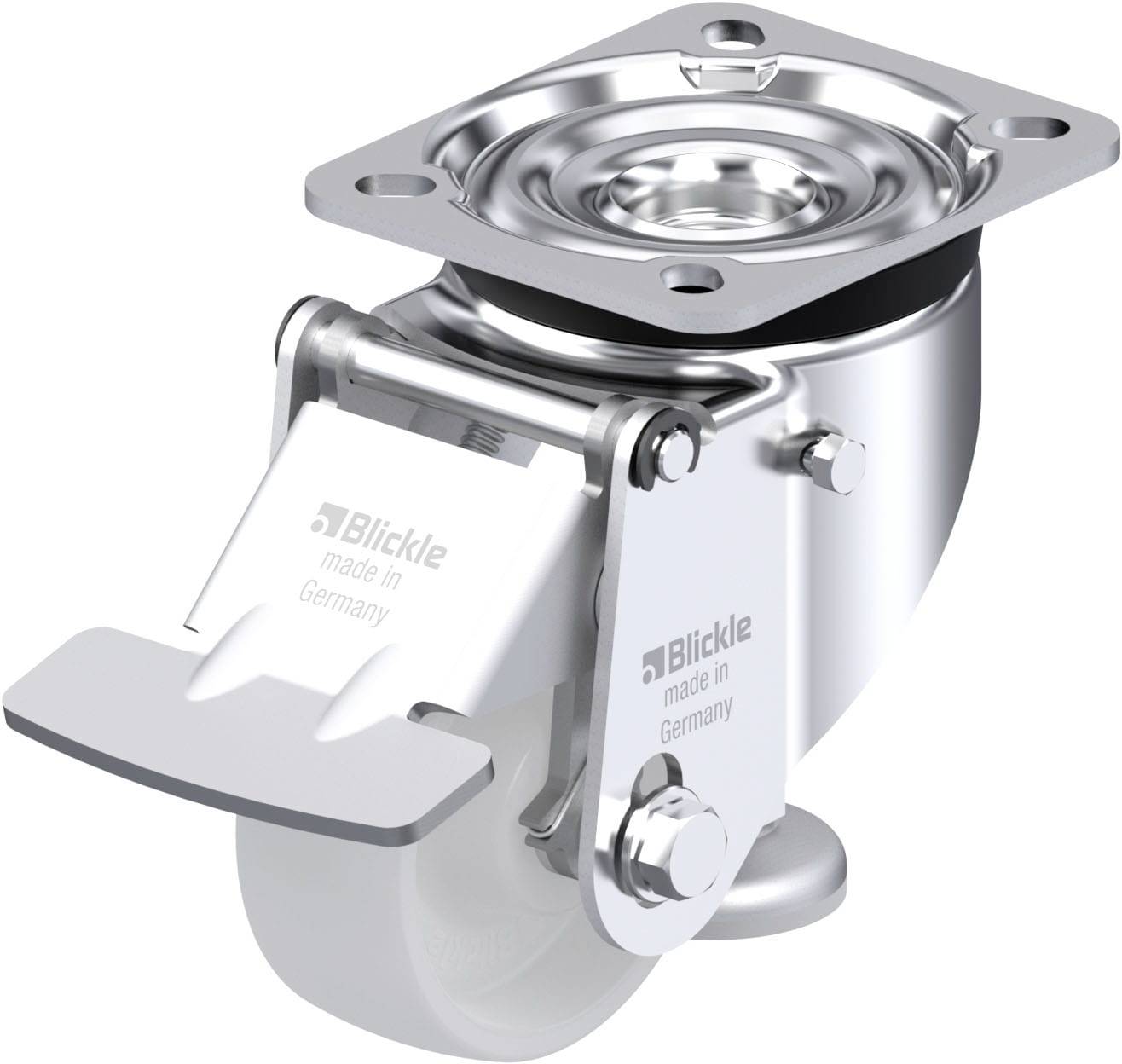

Blickle 913399 HRLK-PO 80G-F Leveling caster Wheel diameter: 80 mm Load capacity (max.): 150 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 150 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Plastic
- Colour: Carpet, natural-white
- Colour wheel body: Natural white
- Temperature resistance up to 70 °C
- Temperature resistance min -25 oC
- Coating hardness 70 shore D.
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated wheel: PO 80/12G
- Product type
Leveling caster
- Wheel Ø
80 mm
- Load capacity (max.)
150 kg
- Total height
117 mm
- Size
100 x 85 mm
- Wheel width
32 mm
- Bearing type
Plain bearing
- Material
Plastic
- Factory colour
Natural white
- Content
1 pc(s)
- Weight
1.464 kg
Documents & Downloads
Datasheet
Datasheet 3051345 Blickle 913399 HRLK-PO 80G-F Leveling caster Wheel diameter: 80 mm Load capacity (max.): 150 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051345 Blickle 913399 HRLK-PO 80G-F Leveling caster Wheel diameter: 80 mm Load capacity (max.): 150 kg 1 pc(s)
Description
Lever roller with fixed base and height-moving wheel, with mounting plate,
Wheels of Polyamid
HRLK...-F series case
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
• Steel lock base with rubber support
• Height adjustment by swiveling trigger lever
Wheel: Series PO
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color natural white
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
This text is machine translated.
Wheels of Polyamid
HRLK...-F series case
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
• Steel lock base with rubber support
• Height adjustment by swiveling trigger lever
Wheel: Series PO
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color natural white
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
This text is machine translated.
