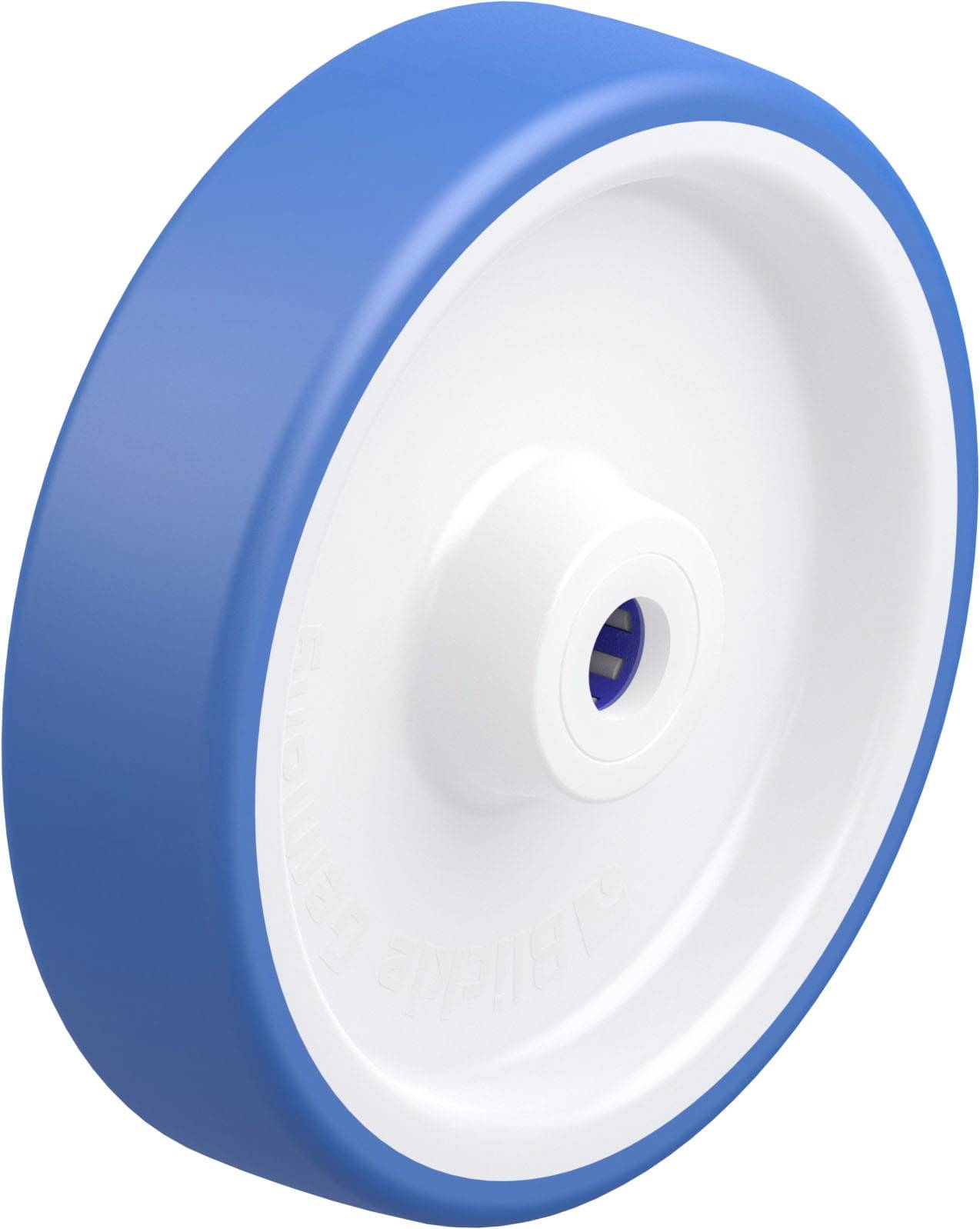

Blickle 933147 POTHS 200/20XR Wheel Wheel diameter: 200 mm Load capacity (max.): 550 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 550 kg
- Material wheel body: High-quality polyamide 6
- Material: Polyurethane lining
- Colour: Running lining: Blue
- Colour wheel body: Natural white
- Temperature resistance up to 70 °C
- Temperature resistance min -25 oC
- Coating hardness 80 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
200 mm
- Load capacity (max.)
550 kg
- Axle hole diameter
20 mm
- Wheel width
50 mm
- Bearing type
Roller bearing
- Material
Polyurethane
- Factory colour
Blue
- Content
1 pc(s)
- Hub length
60 mm
- Weight
1.08 kg
Documents & Downloads
Datasheet
Datasheet 3058827 Blickle 933147 POTHS 200/20XR Wheel Wheel diameter: 200 mm Load capacity (max.): 550 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058827 Blickle 933147 POTHS 200/20XR Wheel Wheel diameter: 200 mm Load capacity (max.): 550 kg 1 pc(s)
Description
Wheel with soft thermoplastic polyurethane wood plank, with heavy polyamide wheel body
Coating:
• High-quality thermoplastic polyurethane (TPU), hardness 80 shore A
• Very high driving comfort
• Low roll and swivel resistance
• Very gentle on the ground, low-noise operation
• Colour blue, trackless, contact-free
• Material-locking, undetachable connection with the wheel body
Wheel body:
• High-quality polyamide 6, unbreakable
• Colour natural-white
Other properties:
• Very high chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +70 ° C, short term to +90 °C, reduced load capacity at over +35 °C.
