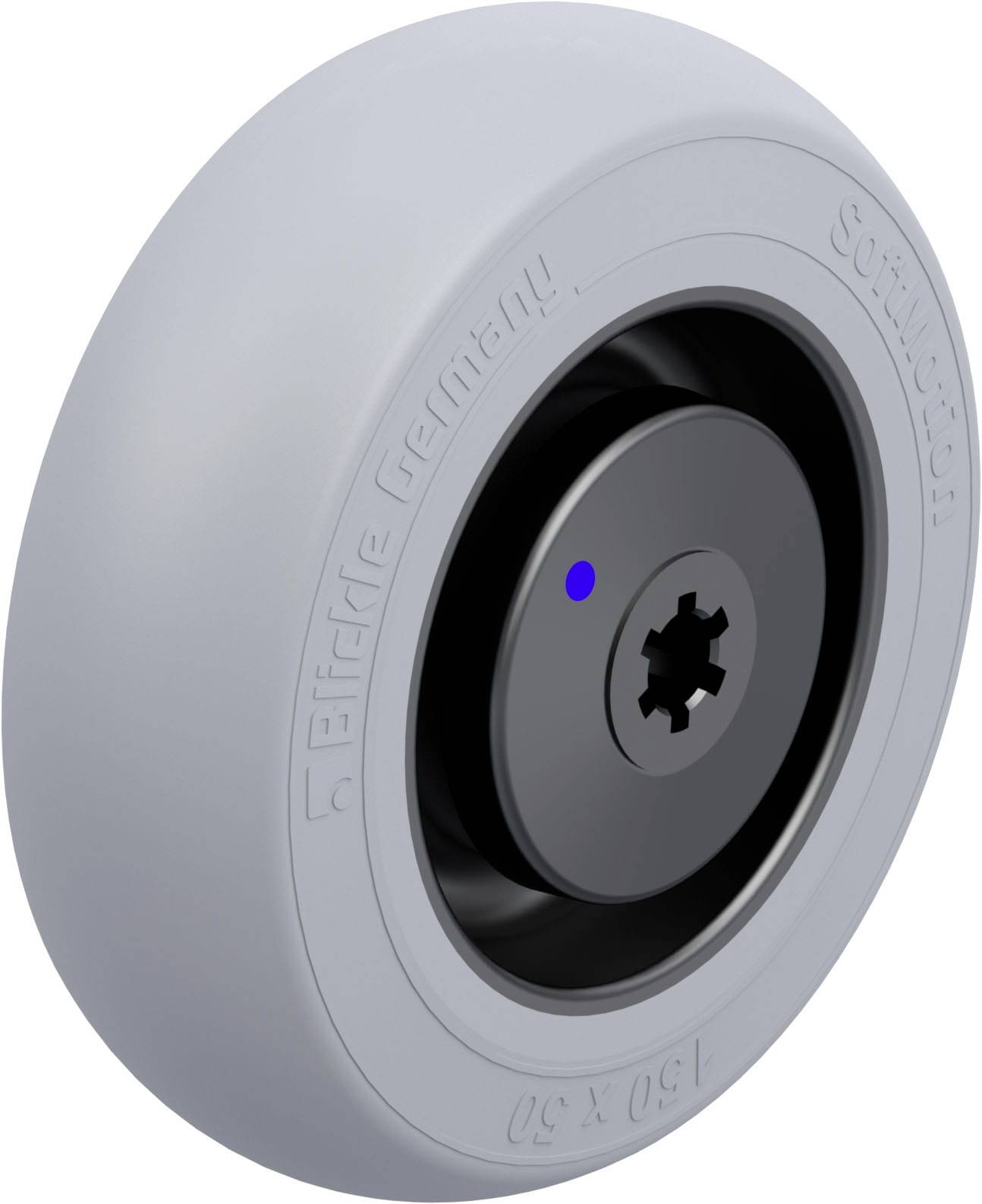

Blickle 934524 POES 150/12XKA-SG Wheel Wheel diameter: 150 mm Load capacity (max.): 280 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 280 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Rubber
- Colour run lining: Grey
- Colour wheel body: Black
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 55 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: Yes
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Wheel
- Wheel Ø
150 mm
- Load capacity (max.)
280 kg
- Axle hole diameter
12 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Rubber
- Factory colour
Grey
- Content
1 pc(s)
- Hub length
60 mm
- Weight
0.918 kg
Documents & Downloads
Datasheet
Datasheet 3058736 Blickle 934524 POES 150/12XKA-SG Wheel Wheel diameter: 150 mm Load capacity (max.): 280 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058736 Blickle 934524 POES 150/12XKA-SG Wheel Wheel diameter: 150 mm Load capacity (max.): 280 kg 1 pc(s)
Description
Wheel with soft rubber tires 'Blickle softmotion', with polyamide wheel body, trackless gray
Tyres:
• High-quality elastic solid rubber "Blickle SoftMotion", hardness 55 shore A
• Maximum driving comfort
• extremely gentle on the floor, particularly noise-damping
• Low rolling resistance
• Colour gray, trackless
• Vulcanized on the wheel body
Wheel body:
• High-quality polyamide 6, unbreakable
• Colour black
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +35 °C.
This text is machine translated.
Tyres:
• High-quality elastic solid rubber "Blickle SoftMotion", hardness 55 shore A
• Maximum driving comfort
• extremely gentle on the floor, particularly noise-damping
• Low rolling resistance
• Colour gray, trackless
• Vulcanized on the wheel body
Wheel body:
• High-quality polyamide 6, unbreakable
• Colour black
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +35 °C.
This text is machine translated.
