Blickle 935414 DK-LS-35 Heavy-duty flange 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Heavy-duty flange
- Size
175 x 140 mm
- Bearing type
Ball bearing
- Material
Steel
- Content
1 pc(s)
- Weight
4.82 kg
Documents & Downloads
Datasheet
Datasheet 3051256 Blickle 935414 DK-LS-35 Heavy-duty flange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051256 Blickle 935414 DK-LS-35 Heavy-duty flange 1 pc(s)
Description

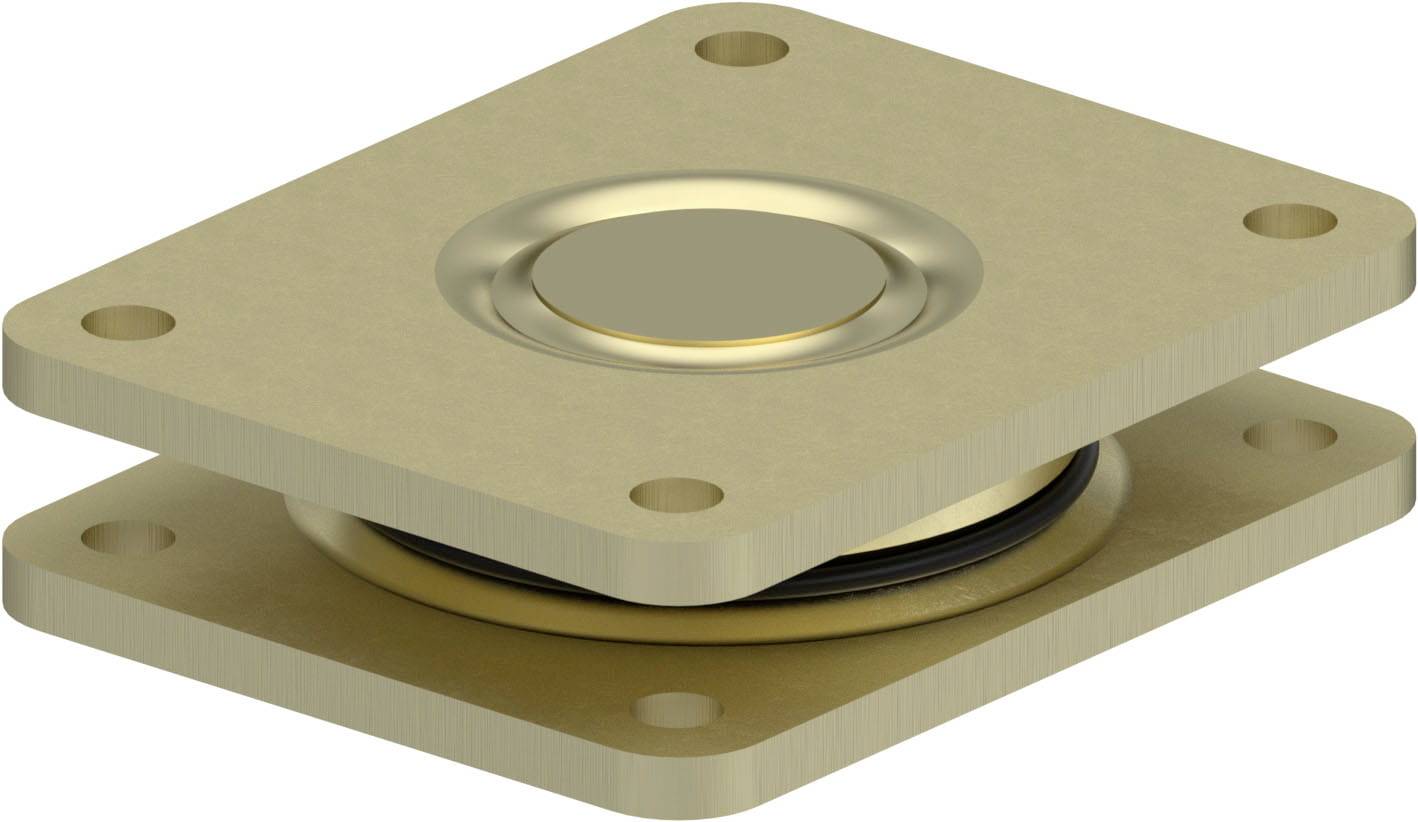

Steel-welded heavy-load rotating collar
• Particularly robust steel welding construction

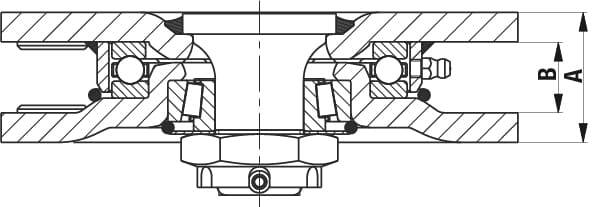

• Axial deep groove ball bearings ISO 104 and tapered roller bearings ISO 355
• Welded, very stable center bolts, screwed and secured
• dust and splash proof
• Lubrication nipple
• Galvanically galvanized, yellow passivated, Cr6-free
• When combined with a fixed roller, a steering wheel without any deflection is created
• can be used universally
• Load capacity is valid for centrally axial load
This text is machine translated.
• Particularly robust steel welding construction
• Axial deep groove ball bearings ISO 104 and tapered roller bearings ISO 355
• Welded, very stable center bolts, screwed and secured
• dust and splash proof
• Lubrication nipple
• Galvanically galvanized, yellow passivated, Cr6-free
• When combined with a fixed roller, a steering wheel without any deflection is created
• can be used universally
• Load capacity is valid for centrally axial load
This text is machine translated.
