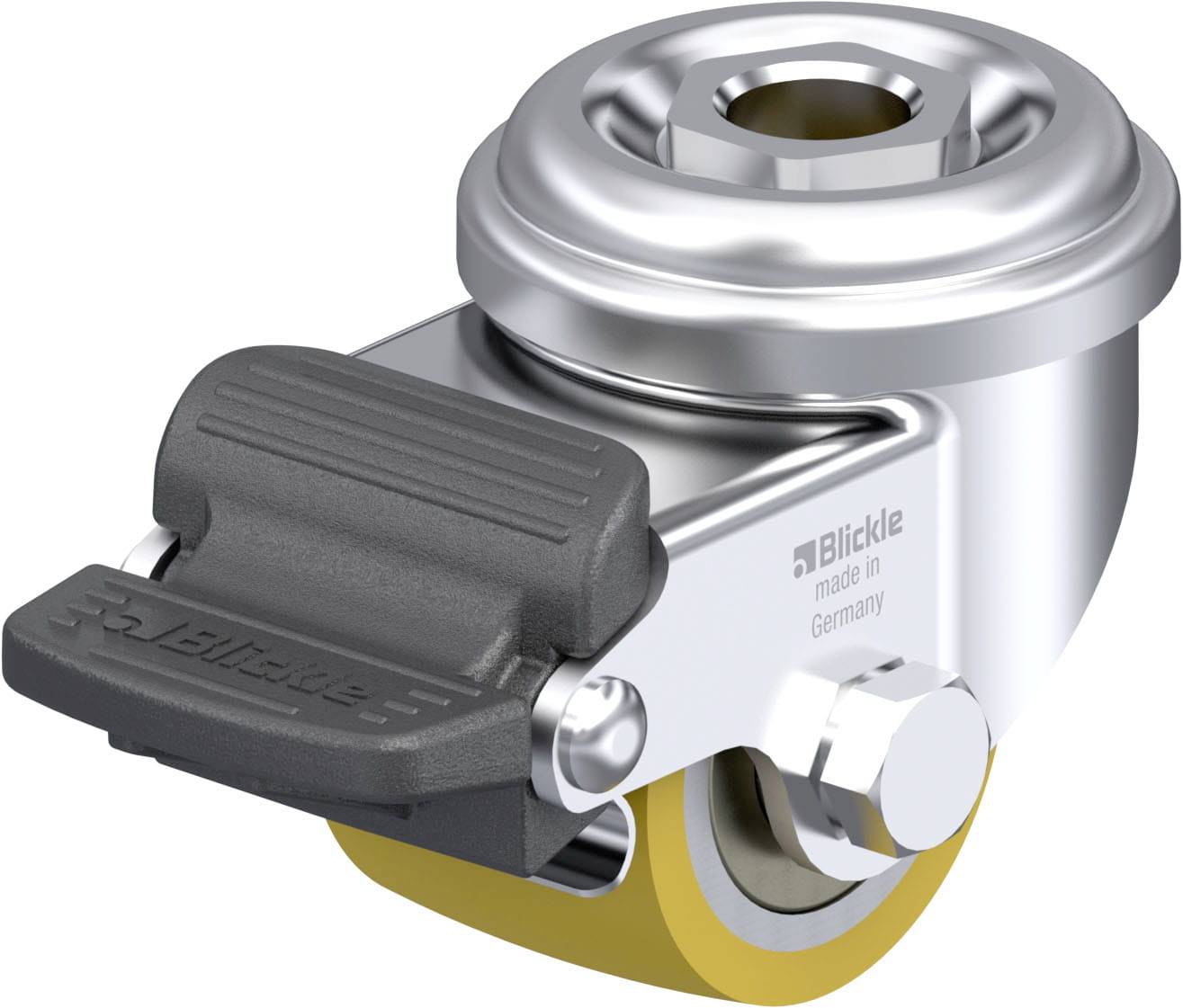

Blickle 935484 LRA-VSTH 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 3 km/h: 100 kg
- Material wheel body: Steel
- Material: Polyurethane lining
- Colour: Running surface: Light brown
- Colour wheel body: Silver
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Rear hole
- Related Steering Wheel: LRA-VSTH 35K
- Associated wheel: VSTH 35/6K
- Product type
Equipment swivel wheel

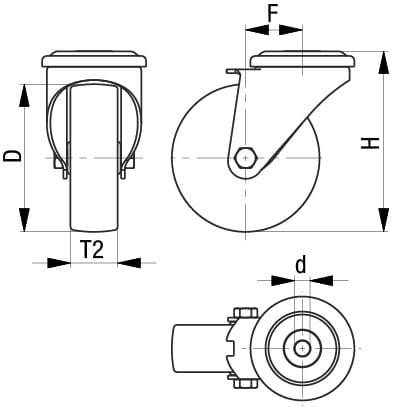

- Wheel Ø
35 mm
- Load capacity (max.)
100 kg
- Total height
50 mm
- Size
43 mm
- Wheel width
27 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Light brown
- Content
1 pc(s)
- Weight
0.234 kg
Documents & Downloads
Datasheet
Datasheet 3057649 Blickle 935484 LRA-VSTH 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3057649 Blickle 935484 LRA-VSTH 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
Description
Equipment steering wheel with reverse lock with 'Radstop' stopper,
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with steel wheel body
Casing: Series LRA
• Sheet steel, galvanized, blue passivated, Cr6-free

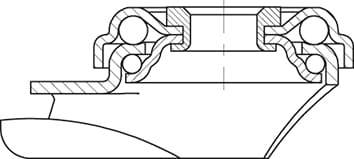

• Double ball bearing in rotating assembly
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VSTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with steel wheel body
Casing: Series LRA
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VSTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
